Air Duct: Service and Repair

DUCTS AND GRILLES

Removal and Installation




REMOVAL

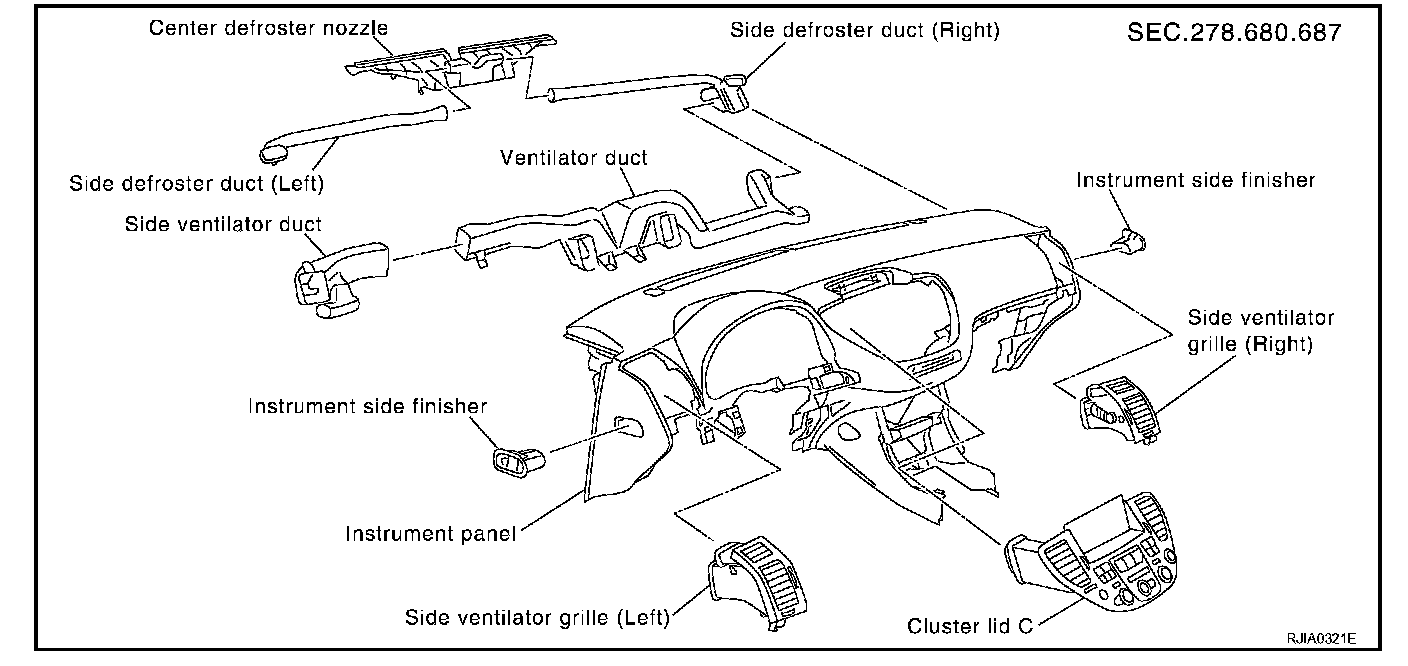

Center Ventilator Grille




1. Remove cluster lid C.
2. Remove center ventilator grille.

Side Ventilator Grille




1. Remove instrument panel.
2. Remove side ventilator grille.

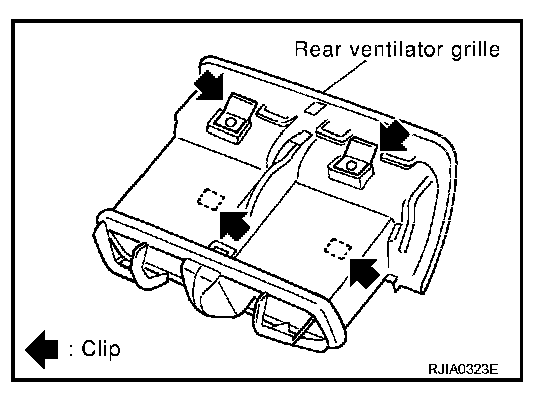

Rear Ventilator Grille




1. Remove console box.
2. Remove rear ventilator grille.




Rear Ventilator Side Grille

Rear Ventilator Ducts




1. Remove console box.
2. Remove rear ventilator duct No. 2.
3. Remove instrument panel.

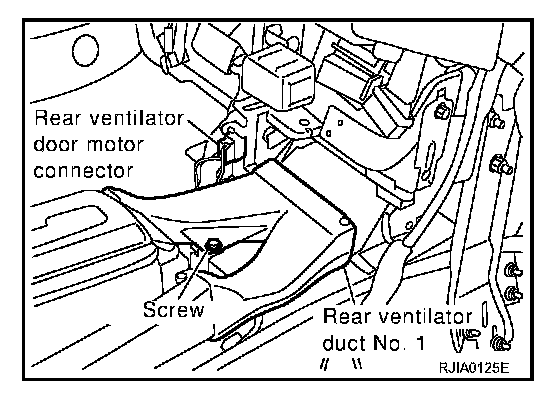

4. Disconnect rear ventilator door motor connector.
5. Remove rear ventilator duct No. 1.

Rear Ventilator Side Ducts

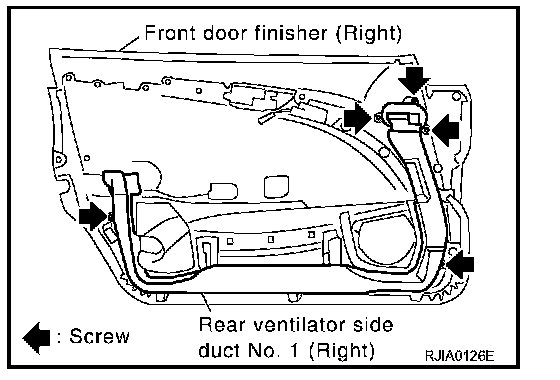

1. Remove front door finisher. Refer to "DOOR FINISHER".
2. Remove rear ventilator side duct No. 1.

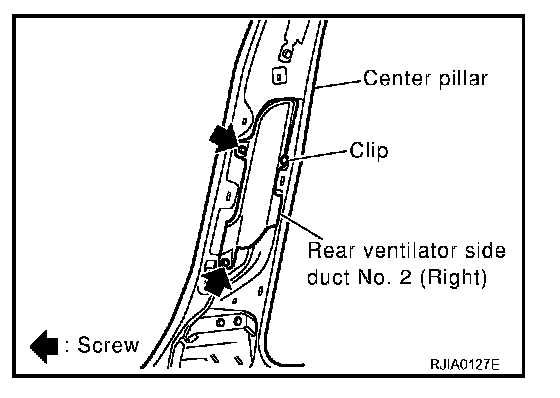

3. Remove center pillar upper garnish. Refer to "CENTER PILLAR UPPER GARNISH".
4. Remove rear ventilator side duct No. 2.

Foot Duct




1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY".
2. Remove foot duct.

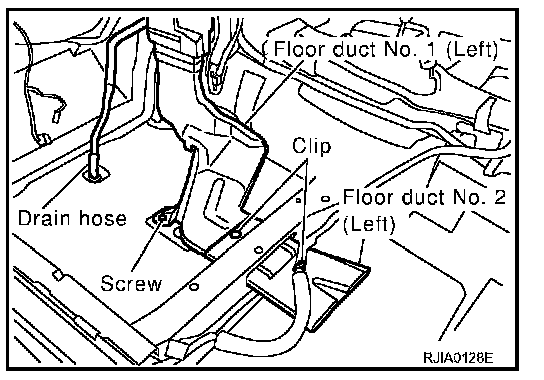

Floor Duct




1. Remove the front seats and console box.
2. Remove the front kicking plate and the dash side finisher.
3. Peel back the floor trim to a point where the floor duct is visible.
4. Remove the floor duct No. 2 (left and right).
5. Remove the mounting screw from the floor duct No.1.
6. Remove the floor duct No. 1 (left and right).

INSTALLATION
Installation is basically the reverse order of removal.
