Automatic Air Conditioner Diagrams

ATC-A/C-01:

ATC-A/C-02:

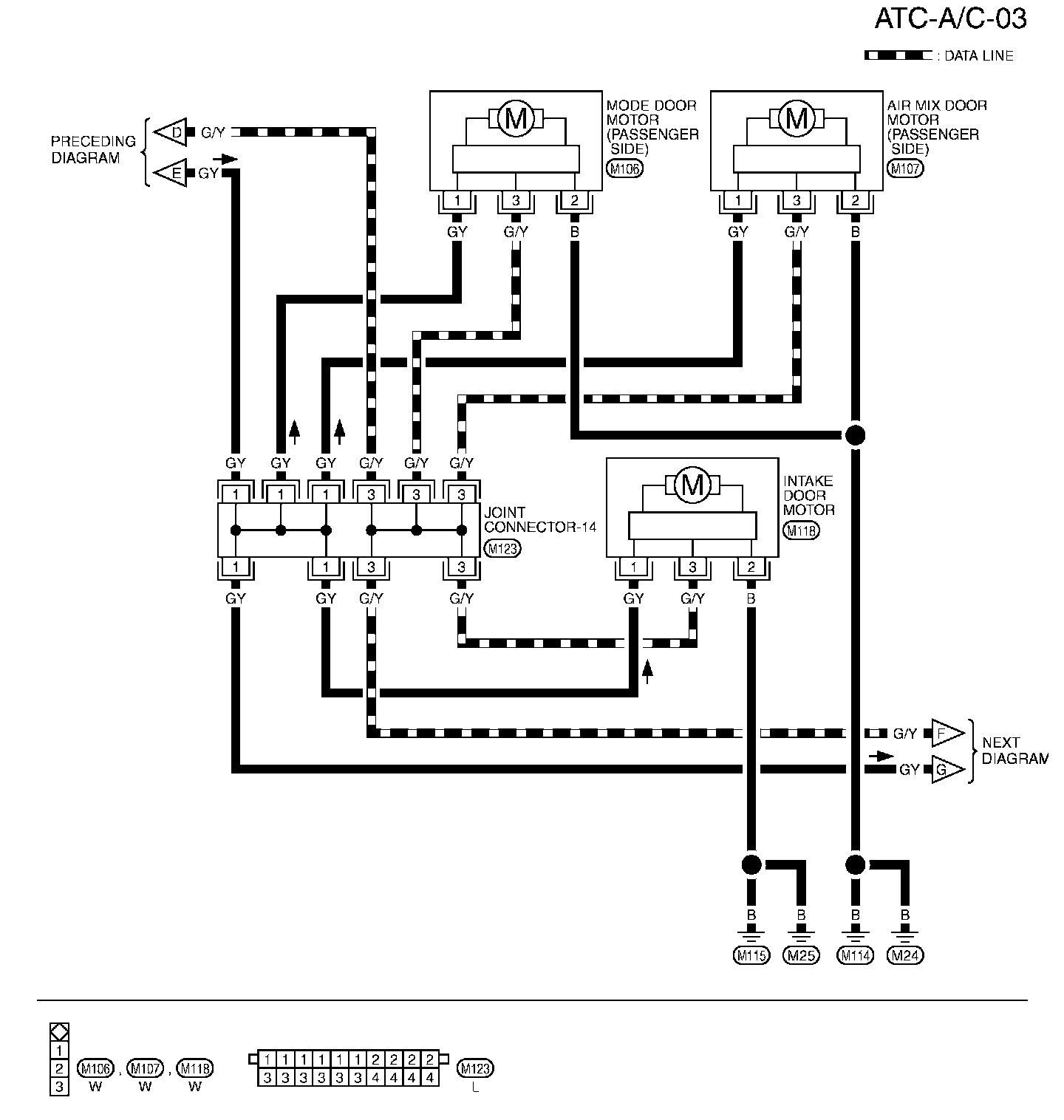

ATC-A/C-03:

ATC-A/C-04:

ATC-A/C-05:

ATC-A/C-06:

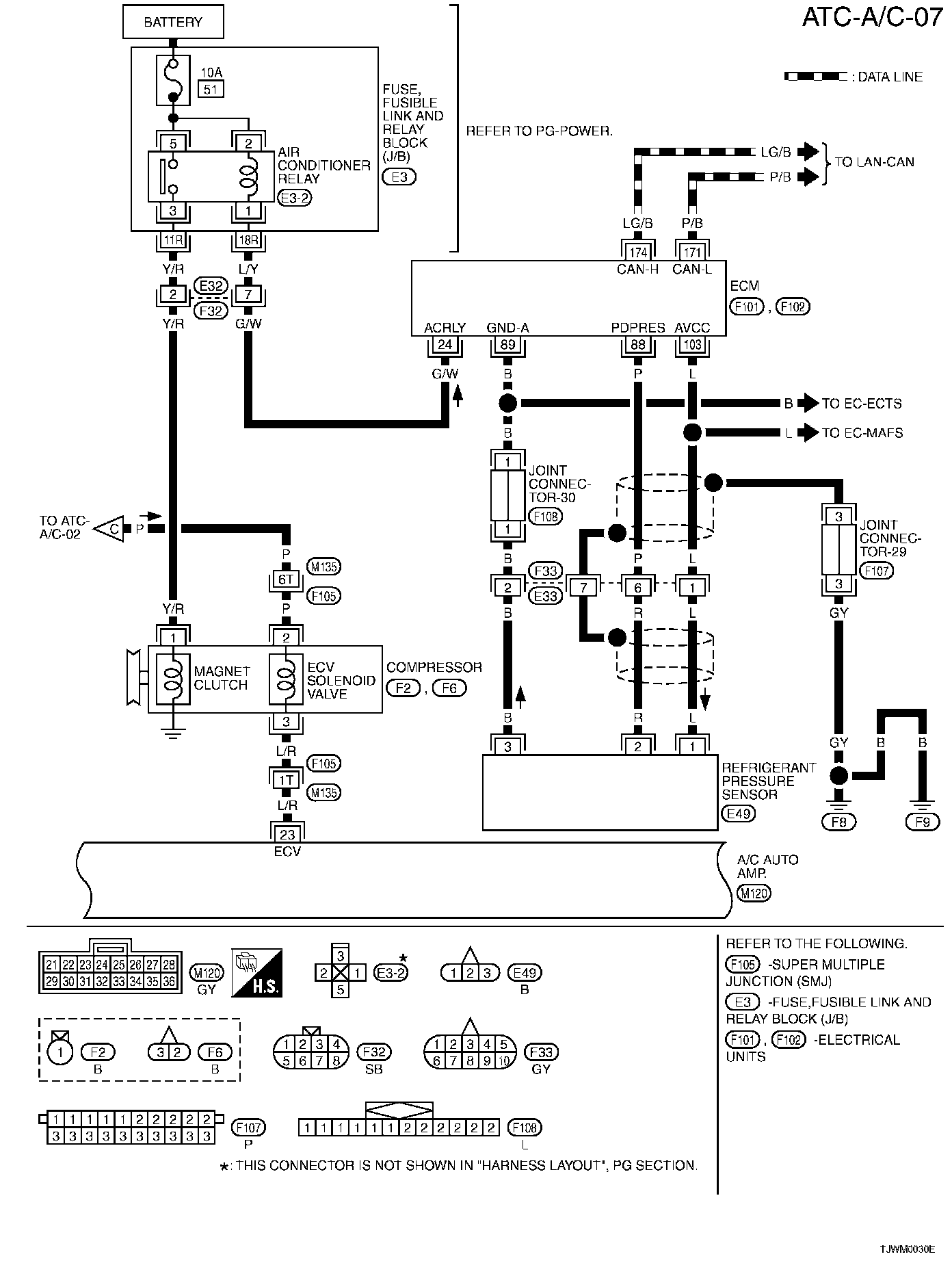

ATC-A/C-07:

ATC-A/C-08:

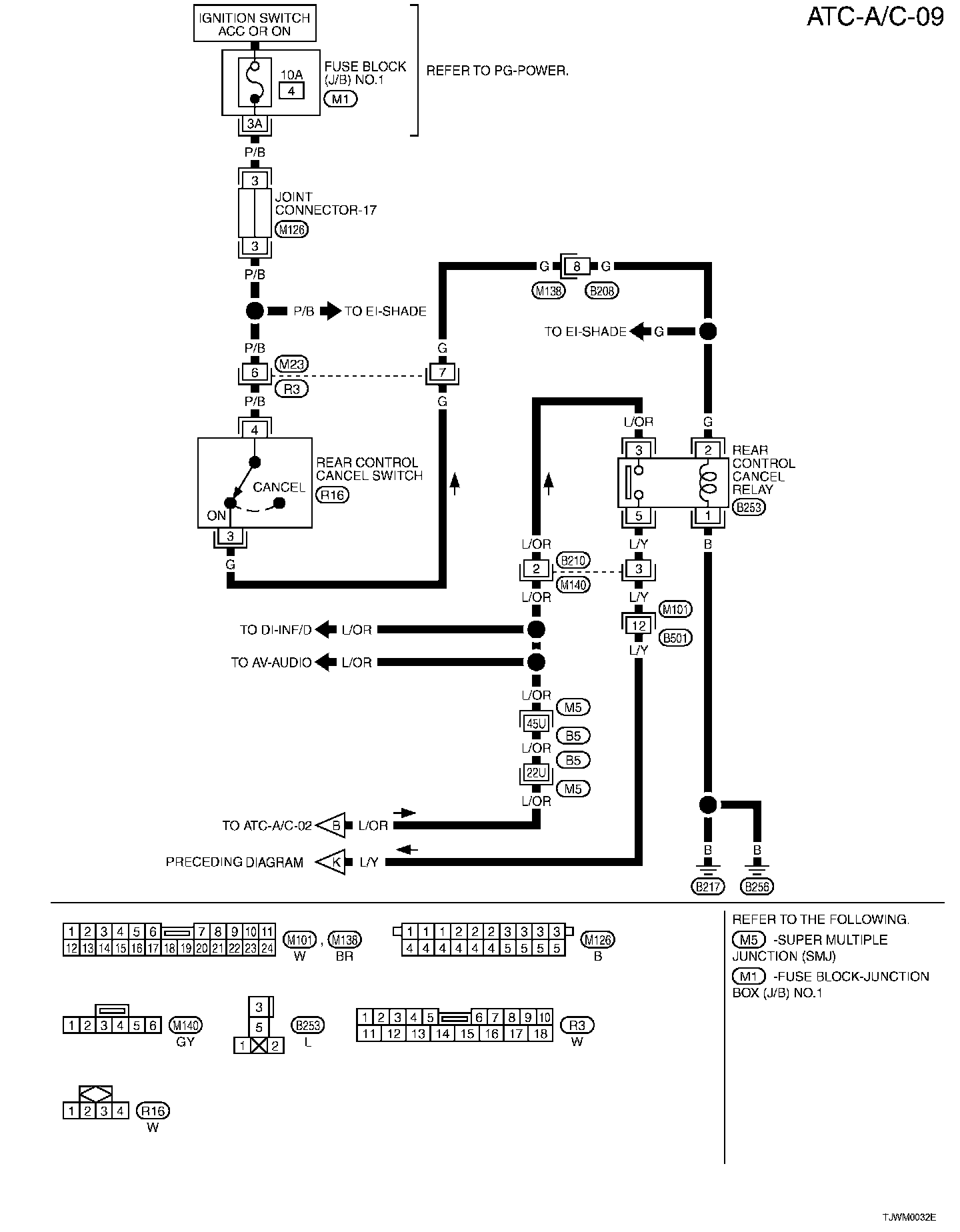

ATC-A/C-09:

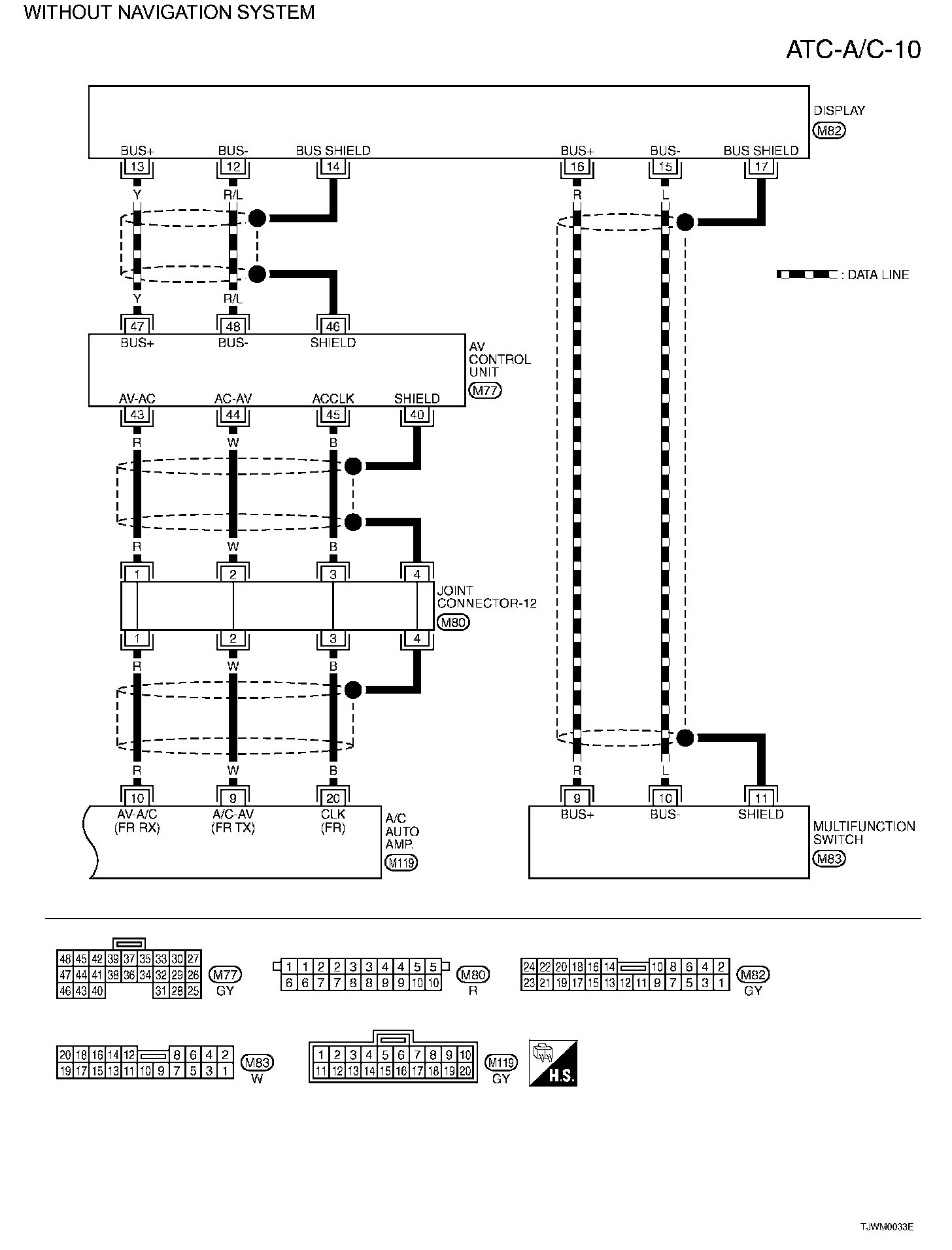

ATC-A/C-10:

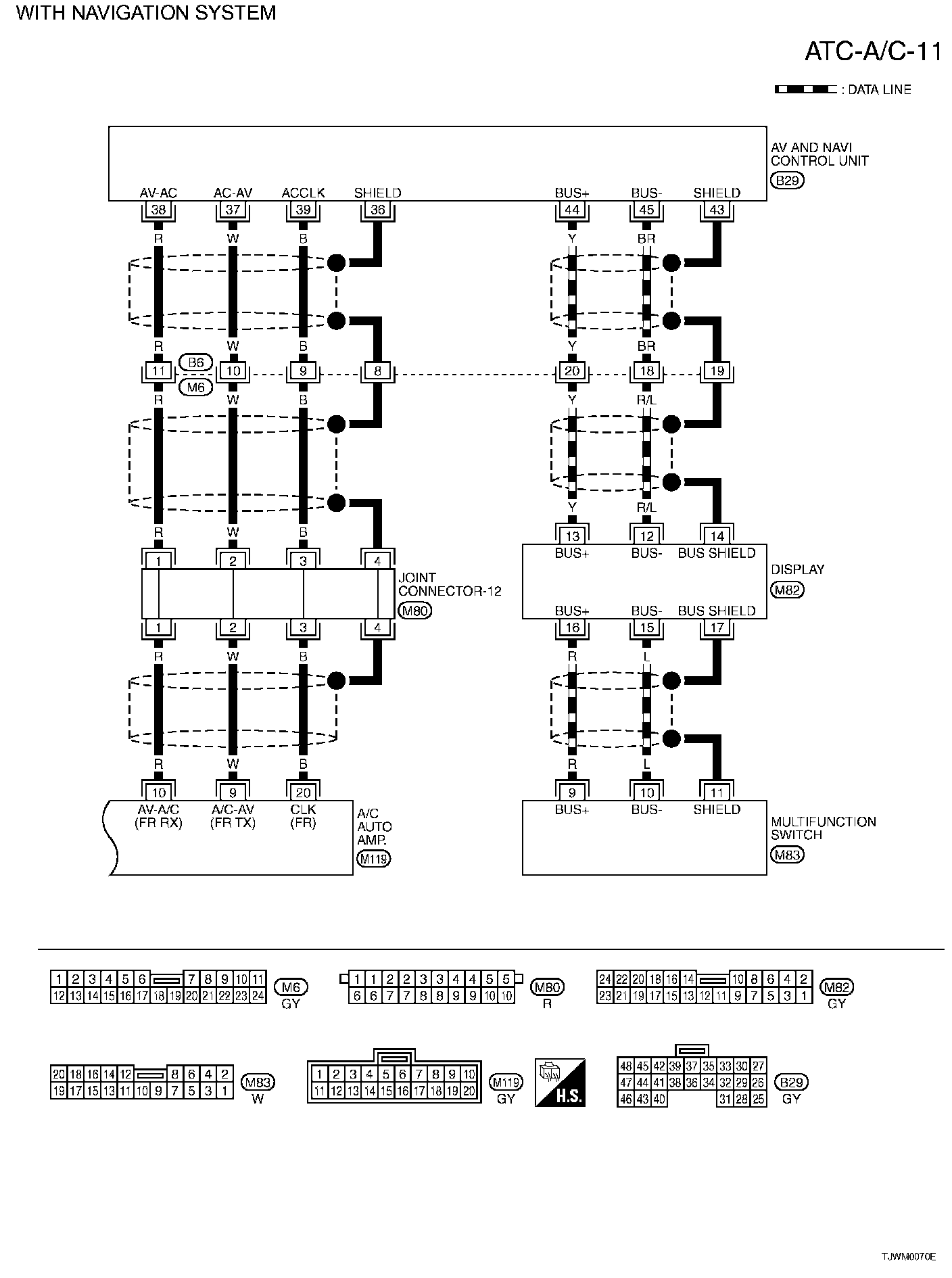

ATC-A/C-11:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
