Solar Sensor: Testing and Inspection

COMPONENT INSPECTION







Sunload Sensor

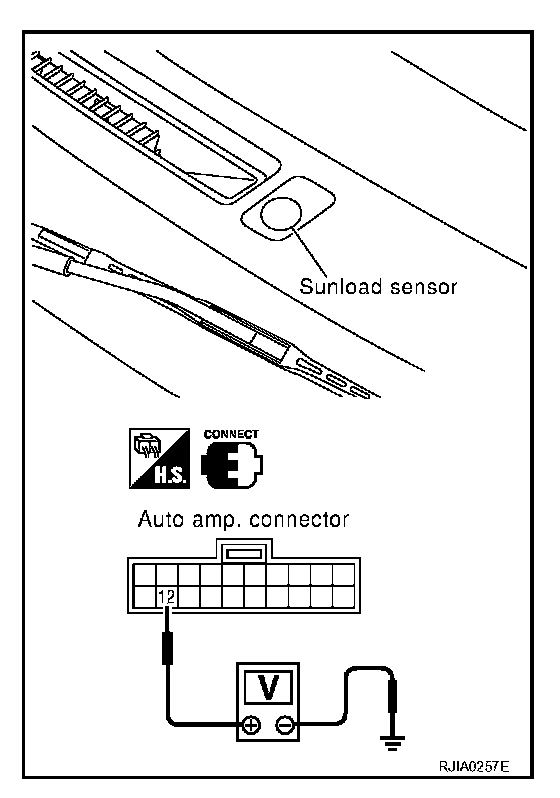

Measure voltage between auto amp. terminal 12 and ground.
If NG, replace auto amp.
- When checking sunload sensor, select a place where sun shines directly on it.
