Pinout Values and Diagnostic Parameters

Auto Amp. Terminals and Reference Value
Measure voltage between each terminal and ground by following terminals and reference value for auto amp.

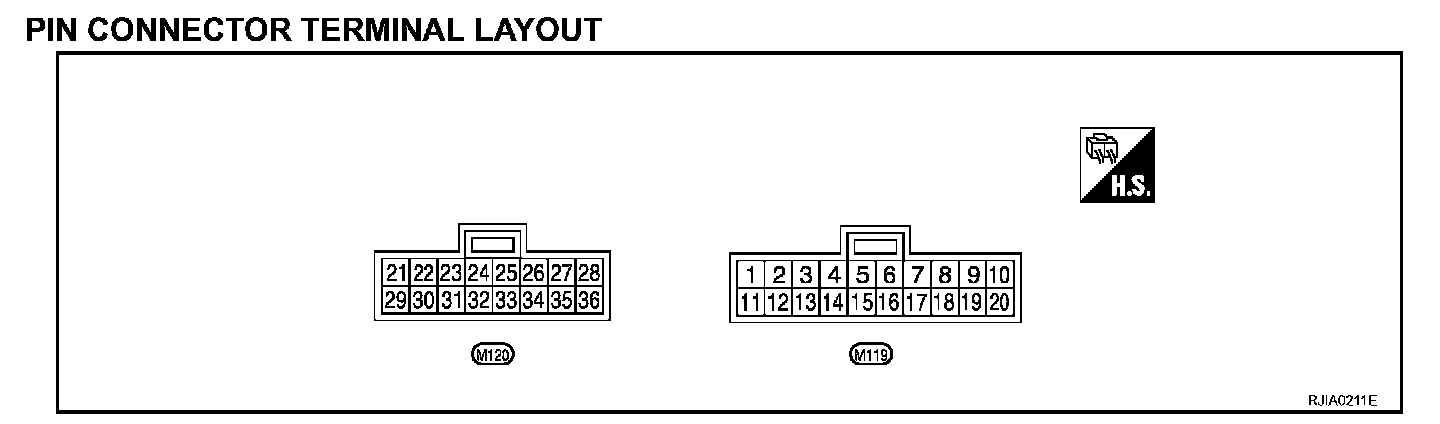

PIN CONNECTOR TERMINAL LAYOUT

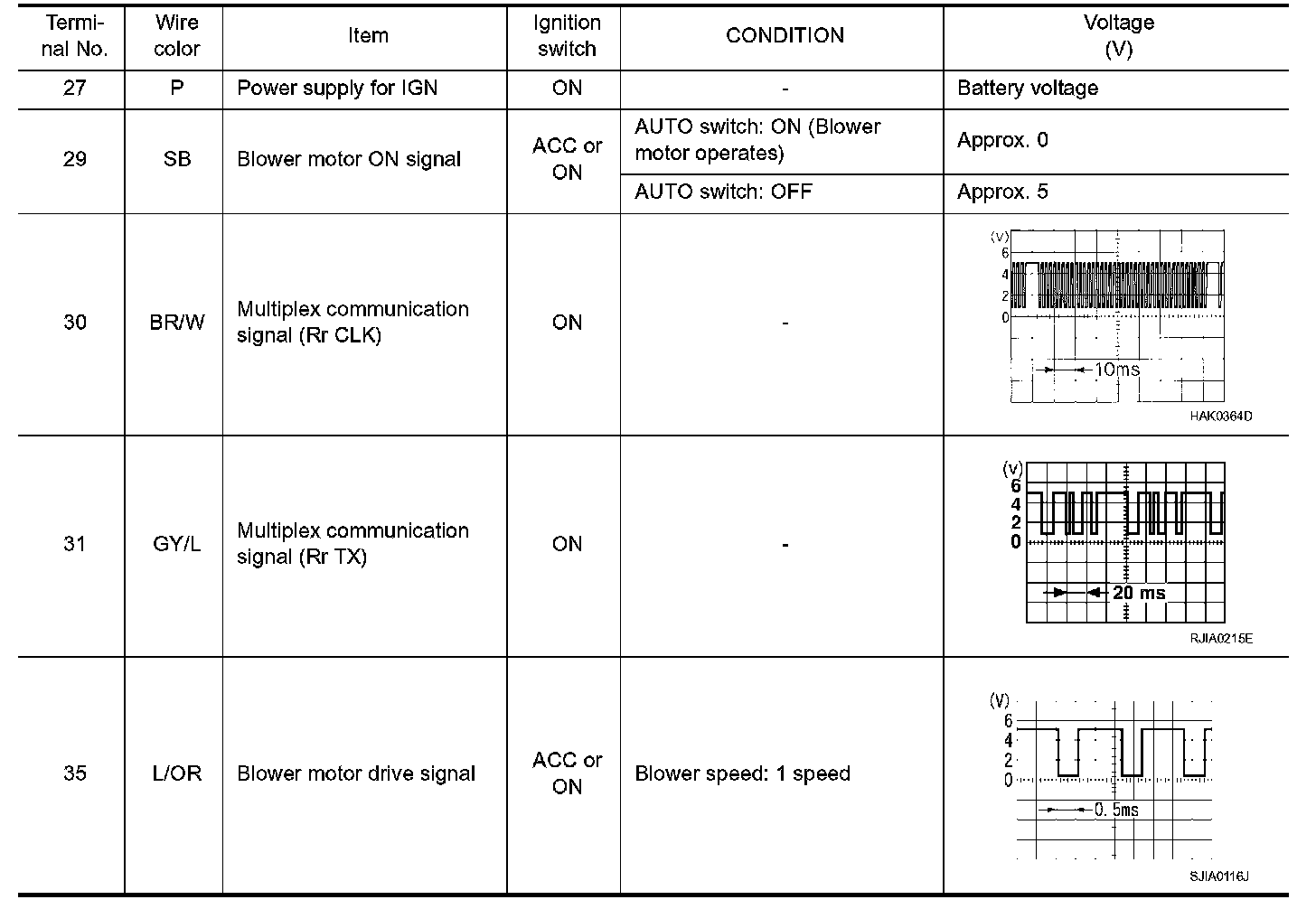

Terminals And Reference Value For Auto Amp. Part 1:

Terminals And Reference Value For Auto Amp. Part 2:

Terminals And Reference Value For Auto Amp. Part 3:

TERMINALS AND REFERENCE VALUE FOR AUTO AMP.
