Disassembly and Assembly

Disassembly and Assembly

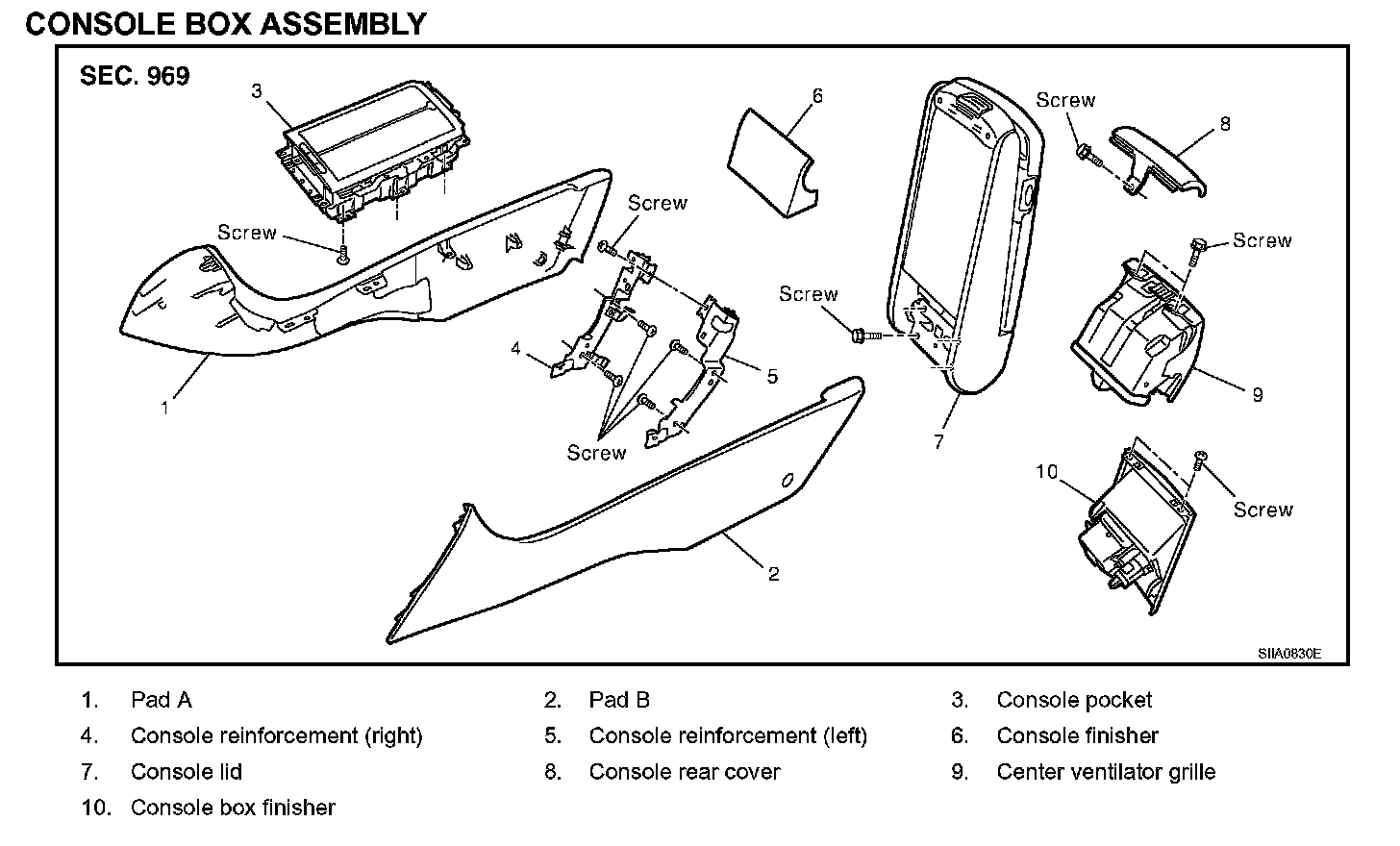

CONSOLE BOX ASSEMBLY

Disassembly
1. Remove console finisher.
2. Remove console rear cover.
3. Remove console lid.
4. Remove center ventilator grille. Refer to "Center Ventilator Grille" in Automatic Air Conditioner.
5. Remove console box finisher.
6. Remove console box.
7. Remove bracket.

Assembly
Assemble in the reverse order of disassembly.
