Disassembly and Assembly

Disassembly and Assembly for Combination Meter

Disassembly And Assembly For Combination Meter:

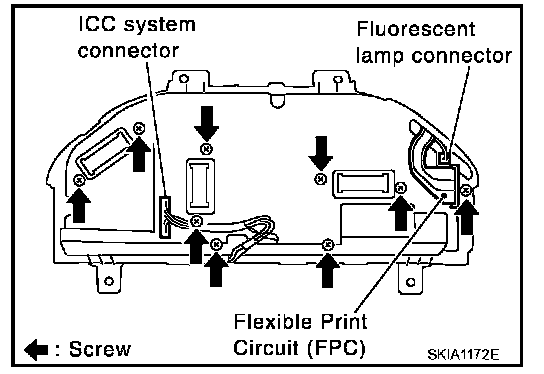

1. Disconnect ICC system display connector.
2. Remove the screws (9) to separate meter cover.
3. Disconnect the connectors for fluorescent lamp connector and flexible print circuit for fluorescent lamp.
4. Disconnect the flexible print circuit for odo/trip meter.
5. Remove the screw (1) to separate unified meter control unit (main and sub).
6. Disengage the tabs (8) to separate upper housing.
7. Remove the screw (1) to separate meter and gauge assembly.
8. Disengage the tabs (7) to separate front cover.




9. Separate unified meter control unit (main) from unified meter control unit (sub).
