Displaying & Reading Trouble Codes
HOW TO ALTERNATE DIAGNOSIS MODE1. Turn ignition switch ON, and switch the odo/trip meter to "trip A" or "trip B".
NOTE: If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A is reset to 0.0 km same as the trip meter B display).
2. Turn ignition switch OFF.

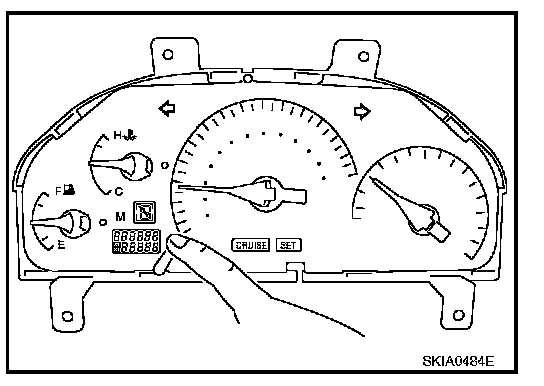

3. While pushing the odo/trip meter switch, turn the ignition switch ON again.
4. Check that the trip meter displays "0000.0".
5. Push the odo/trip meter switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
6. All the segments on the odo/trip meter, A/T indicator and ICC system display illuminate, and simultaneously the low-fuel warning lamp indicator illuminate. At this time, the unified control meter is turned to diagnosis mode.
NOTE: If any of the segments is not displayed, replace combination meter.
7. Push the odo/trip meter switch. Indication of each meter/gauge should be as shown in the right during pushing odo/trip meter switch if there is no malfunctioning. (at this time, the low-fuel warning lamp goes off).
