Home >> Infiniti >> 2004 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Locations

Courtesy Lamp: Locations

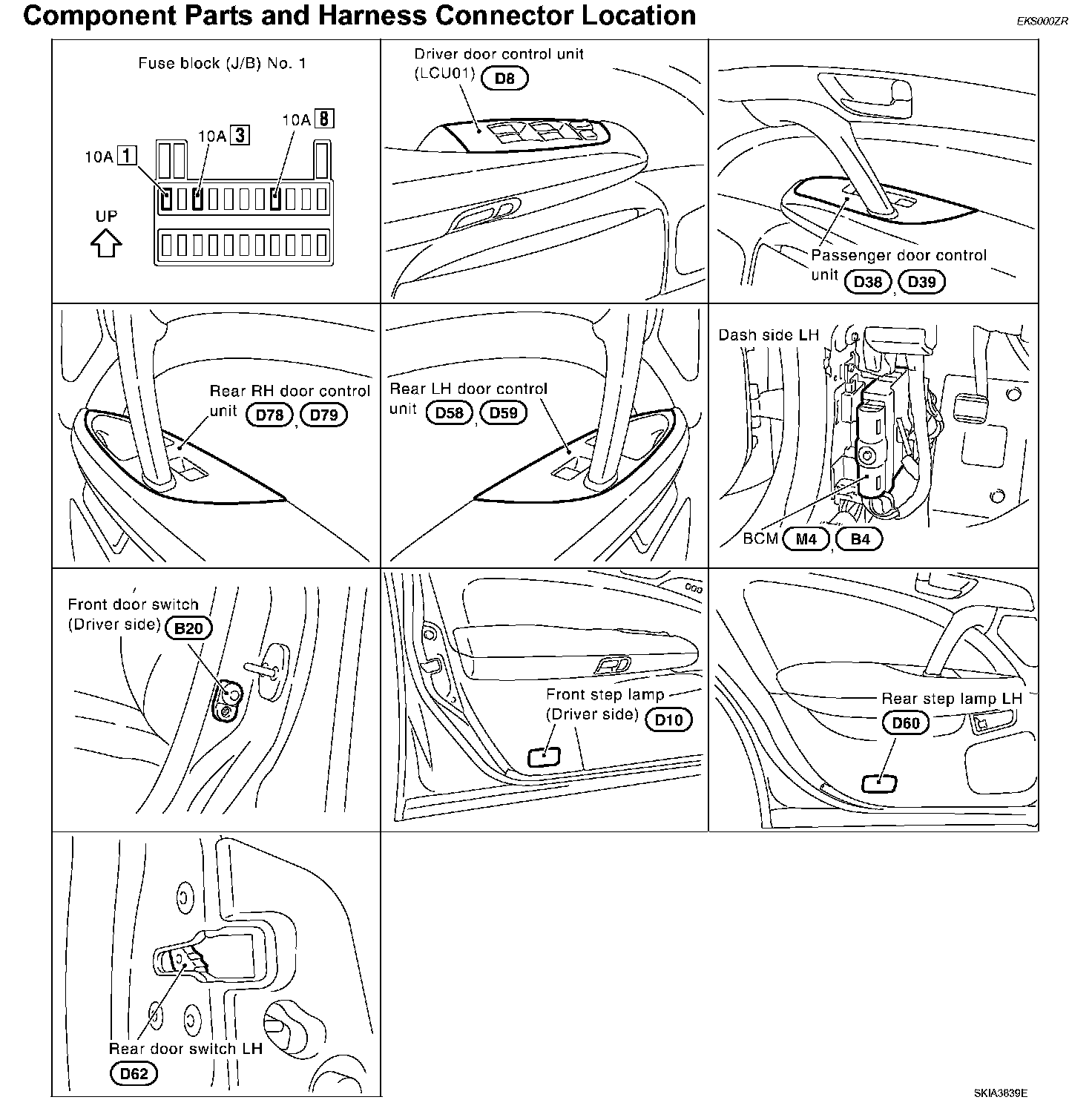

Component Parts And Harness Connector Location:
