Vanity Lamp: Service and Repair

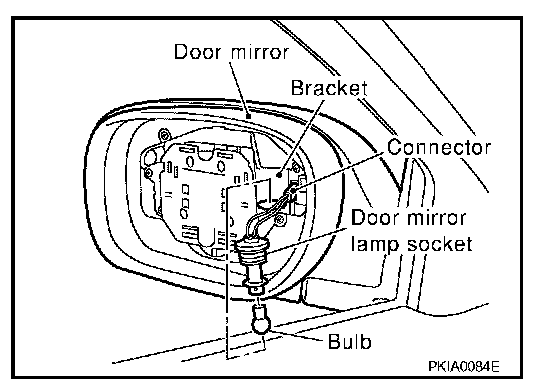

Bulb ReplacementDOOR MIRROR LAMP
1. Remove the mirror from door mirror. Refer to "DOOR MIRROR" in "GW" section.
2. Remove lamp socket.
3. Remove the bulb from lamp socket.
Door mirror lamp : 12 V 8 W
DOOR MIRROR LAMP
1. Remove the mirror from door mirror. Refer to "DOOR MIRROR" in "GW" section.
2. Remove lamp socket.
3. Remove the bulb from lamp socket.
Door mirror lamp : 12 V 8 W
