Fluid Pan, A/T

Oil Pan





Install oil pan on transmission case. (With oil pan gasket)

CAUTION:

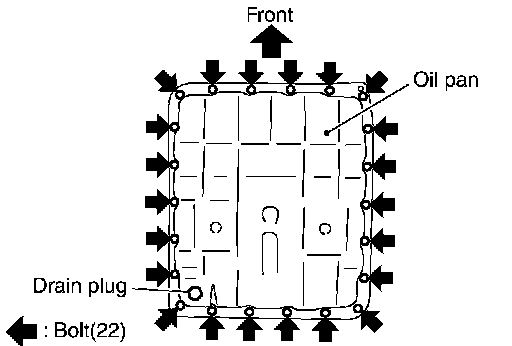

Install it so that drain plug comes to the position as shown in the figure.
Be careful not to pinch harnesses.

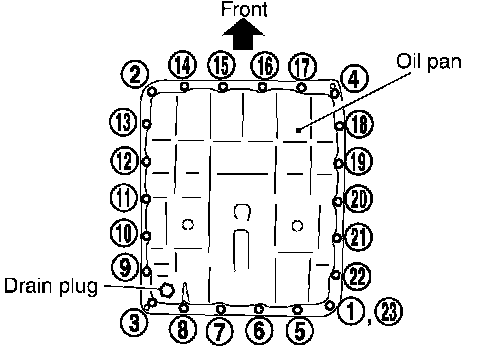

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.

CAUTION: Do not reuse oil pan mounting bolts.

Torque 7.9 Nm (0.81 kg-m, 70 inch lbs.)
