System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

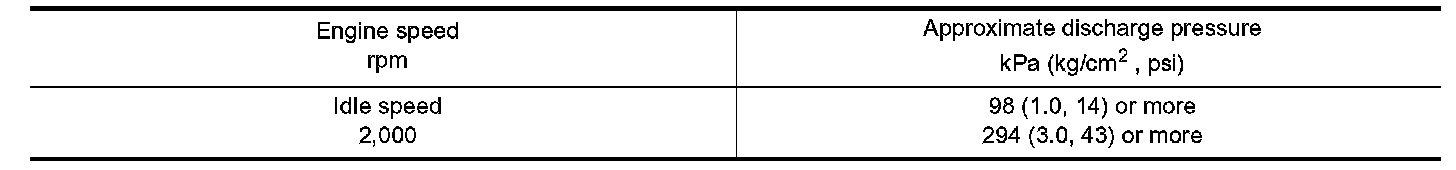

OIL PRESSURE

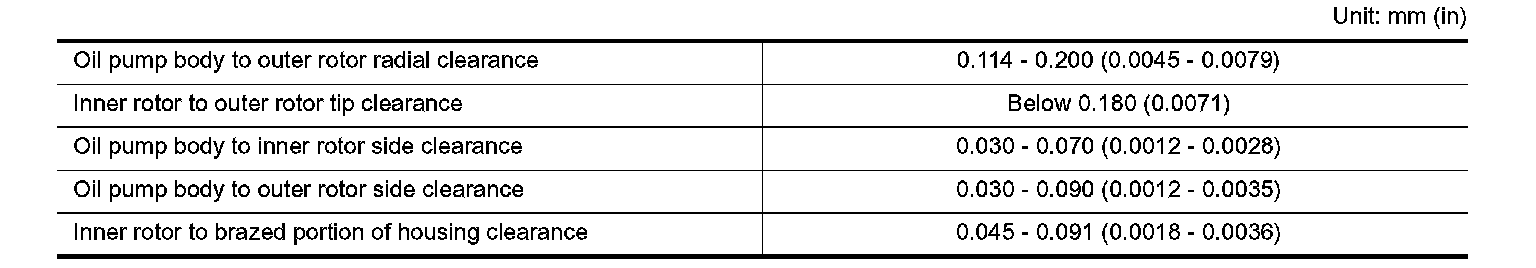

OIL PUMP





REGULATOR VALVE





ENGINE OIL CAPACITY

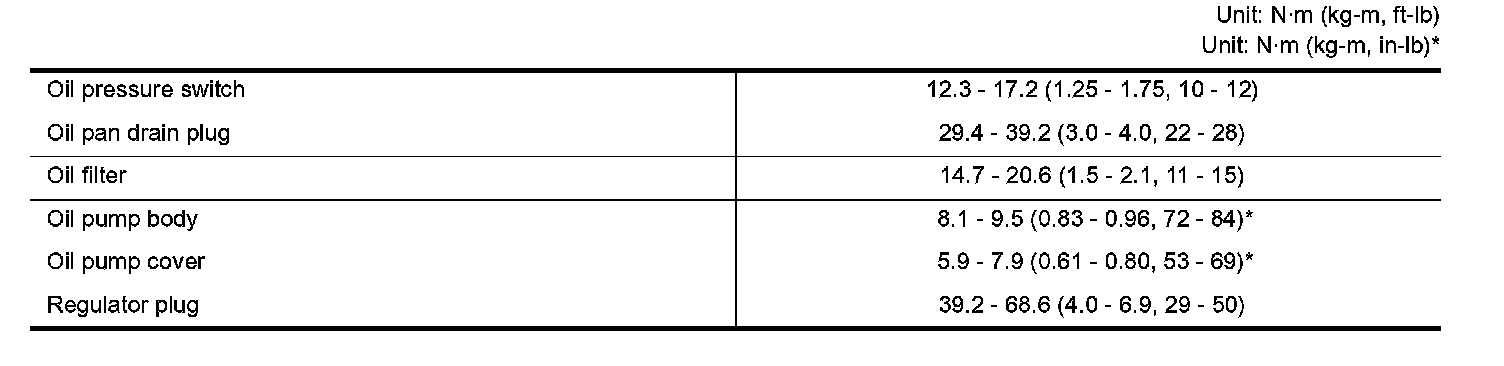

Tightening torque
