Tightening Torques & Sequences

Tightening Exhaust Manifold Nuts

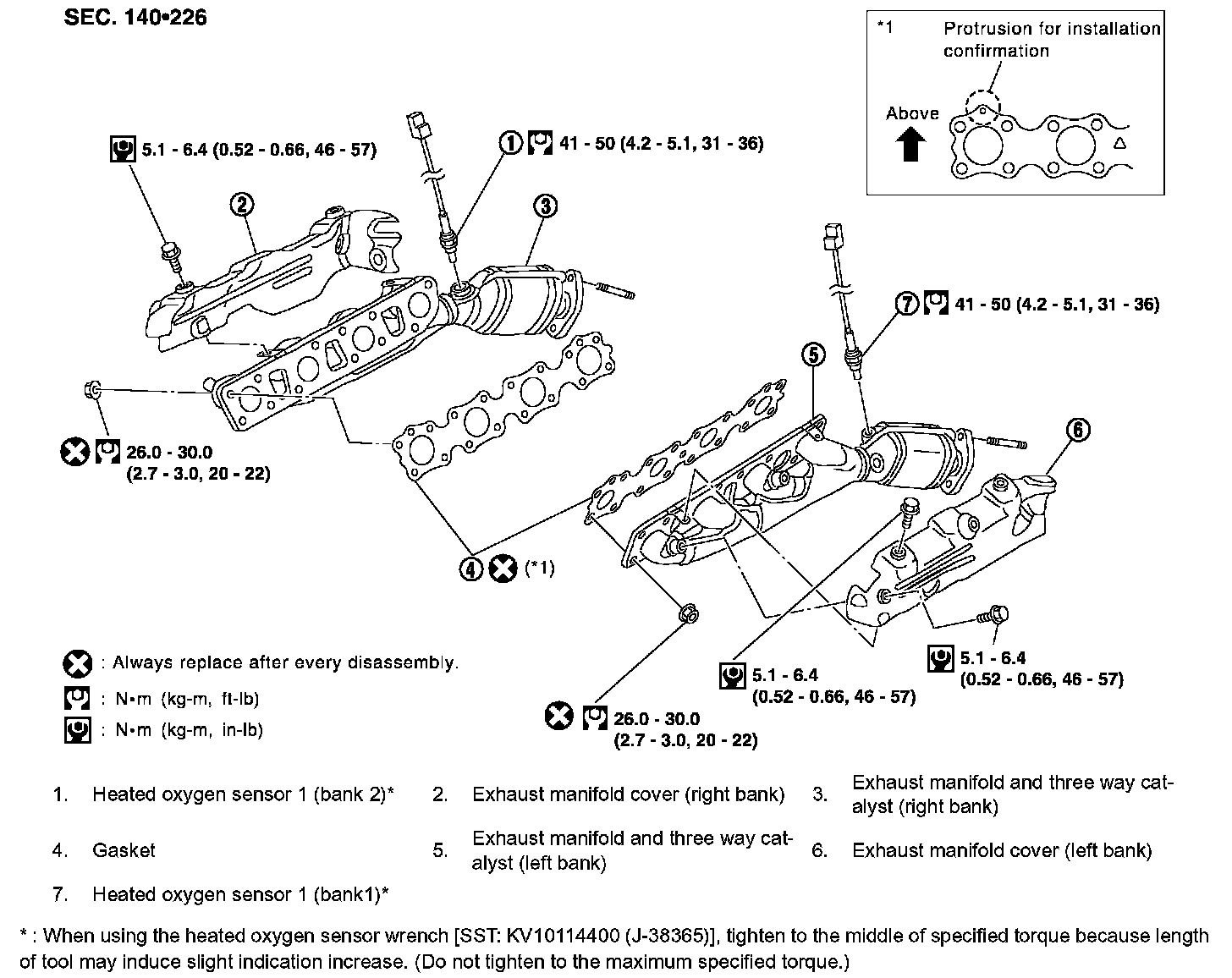

^ Install exhaust manifold and three-way catalyst in numerical order shown in the figure.

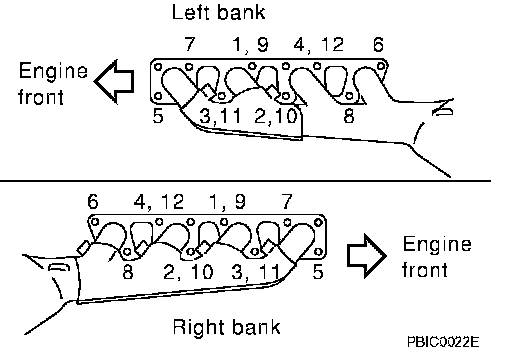

^ Tighten nuts No.1 to No.4 in two steps. Order No.9 to 12 shows second step.
