Home
>>
Infiniti
>>
2004
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Cooling System
>>
System Specifications
System Specifications

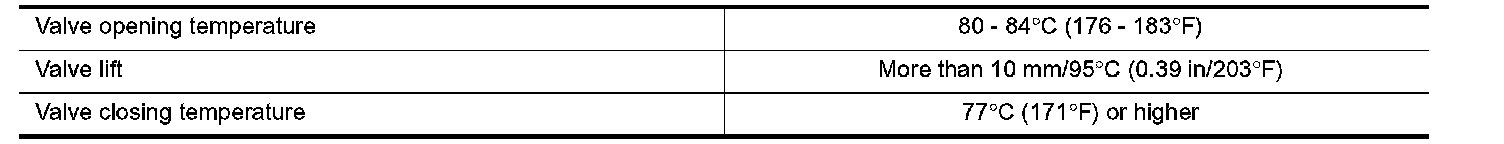

THERMOSTAT

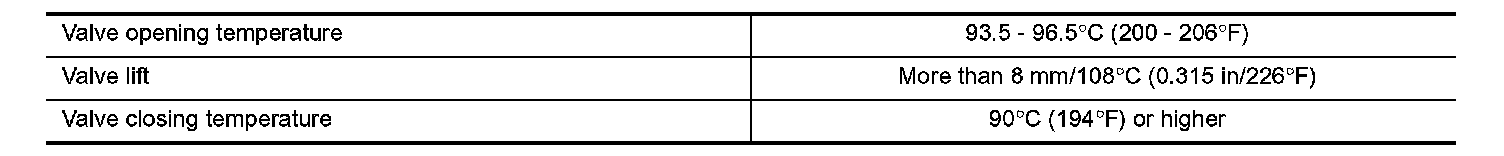

WATER CONTROL VALVE

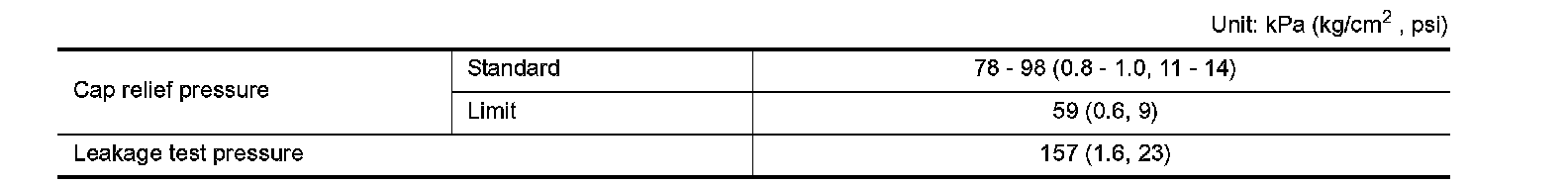

RADIATOR
