Removal and Installation

Removal and Installation




Observe the following to ensure proper servicing.

CAUTION:
- When disconnecting, disconnect negative terminal first.
But for connecting, connect positive terminal first.
- Tighten parts to the specified torque shown below.

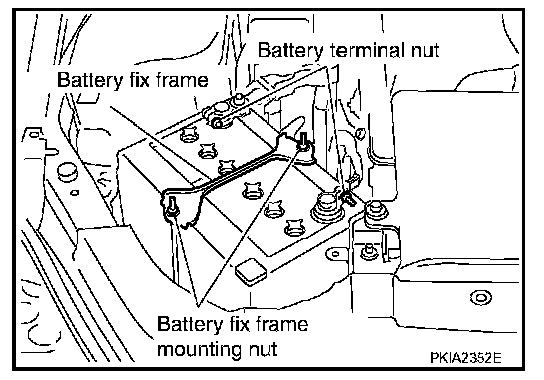

Battery fix frame mounting nut : 4.4 Nm (0.45 kg-m, 39 in-lb)

Battery terminal nut : 4.0 Nm (0.41 kg-m, 35 in-lb)
