Steering Column: Testing and Inspection

Inspection

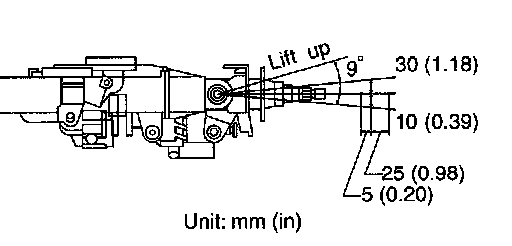

After installing steering column, check tilt mechanism operation.







When steering wheel does not turn smoothly, check steering column as follows and replace damaged parts.

1. Check column bearings for damage or unevenness. Lubricate with recommended multipurpose grease or replace steering column as an assembly, if necessary.
2. Check steering column lower shaft for deformation or breakage. Replace if necessary.

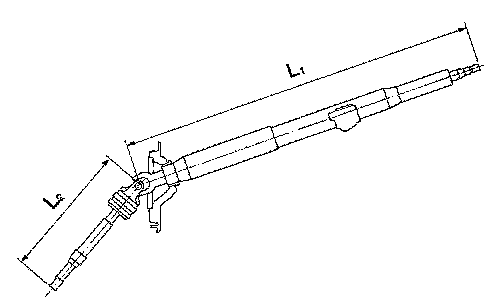

When the vehicle is involved in a light collision, check steering column length "L1" and steering column lower shaft length "L2". If it is not within specifications, replace steering column as an assembly.

Steering column length "L1":..........................638 - 668 mm (25.12 - 26.30 inch)
Steering column lower shaft length "L2":..........................379.8 mm (14.95 inch)
