Intermittent Wiper Does Not Operate

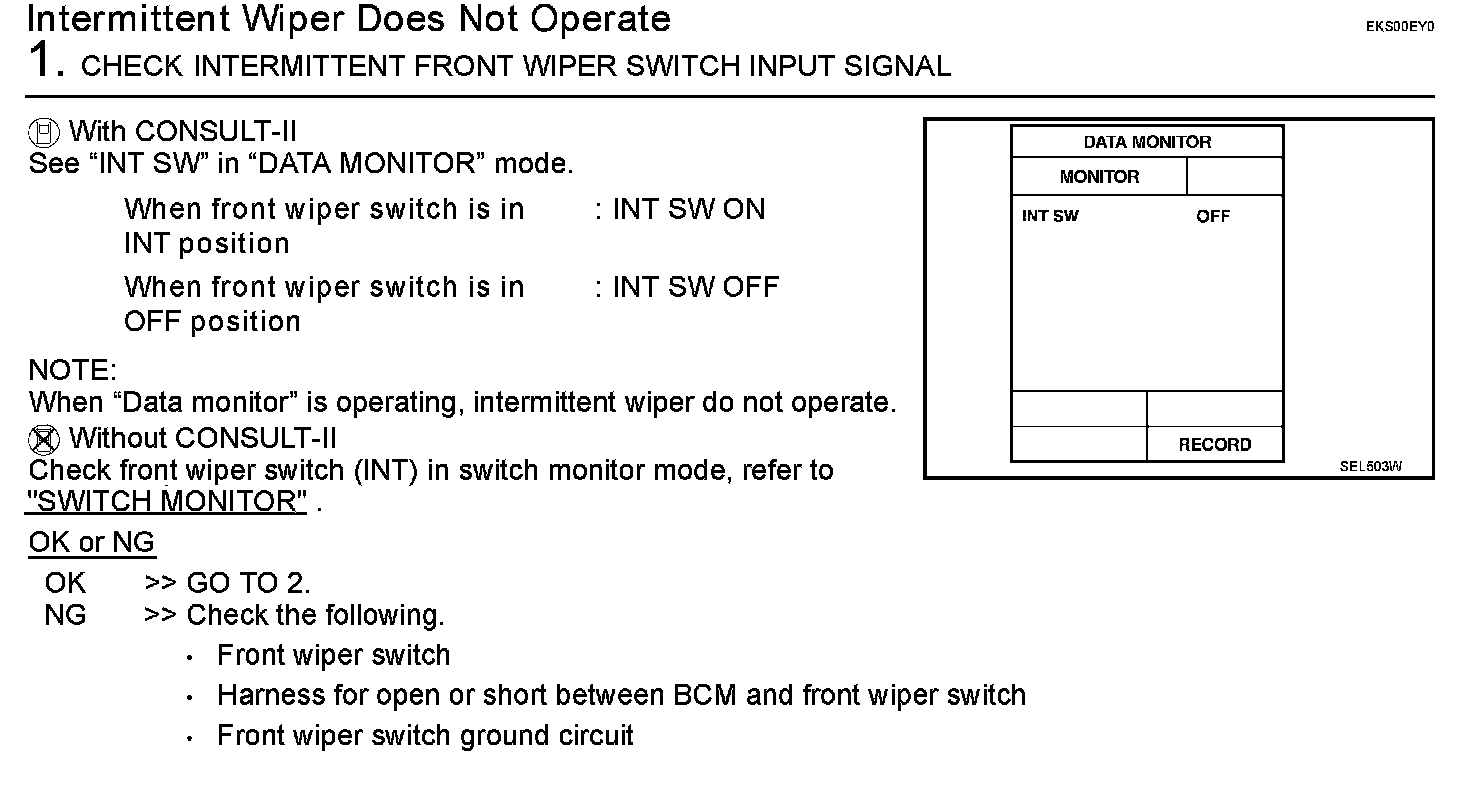

Intermittent Wiper Does Not Operate (Step 1):



Intermittent Wiper Does Not Operate (Step 2):

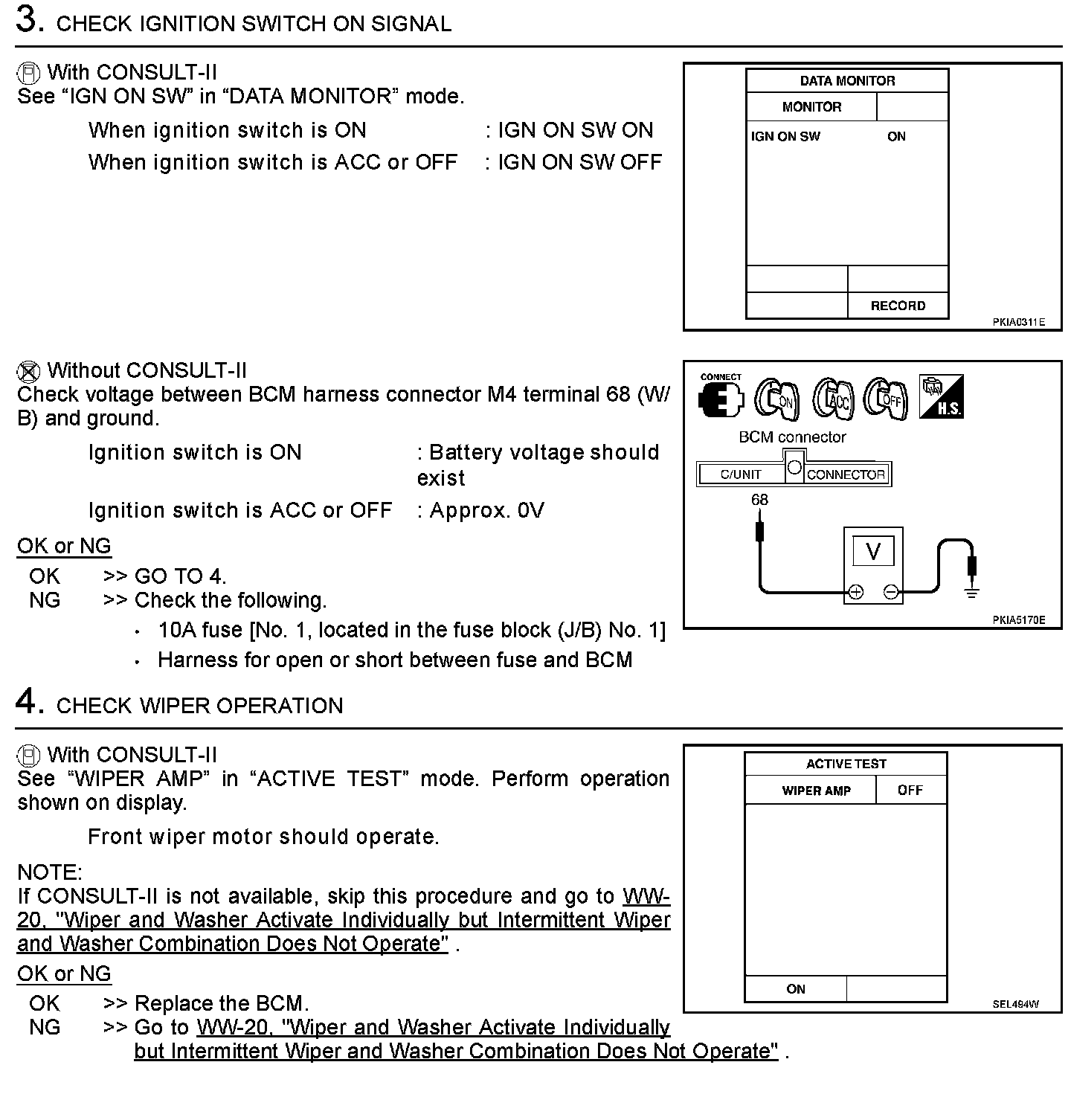

Intermittent Wiper Does Not Operate (Steps 3 - 4):
