Initial Inspection

Preliminary Check




SETTING CHANGE FUNCTIONS
- With CONSULT-II, each function can be changed in setting, refer to "WORK SUPPORT". Work Support

CAUTION: After the setting was changed, the new setting will be maintained even if the battery was disconnected.

Inspection For Power Supply And Ground Circuit:

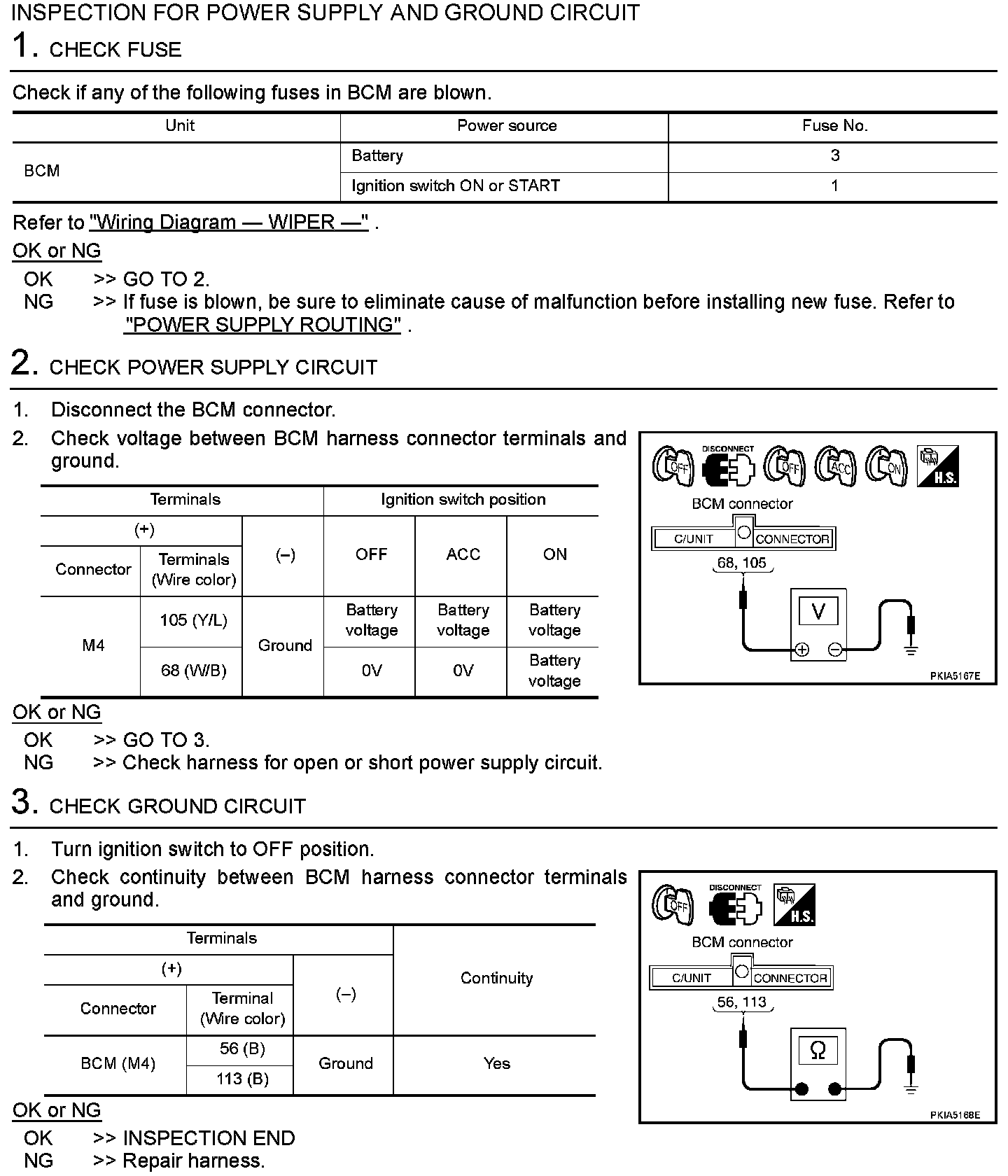

INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
