Data Monitor

DATA MONITOR

Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen
2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.
4. Touch "START".

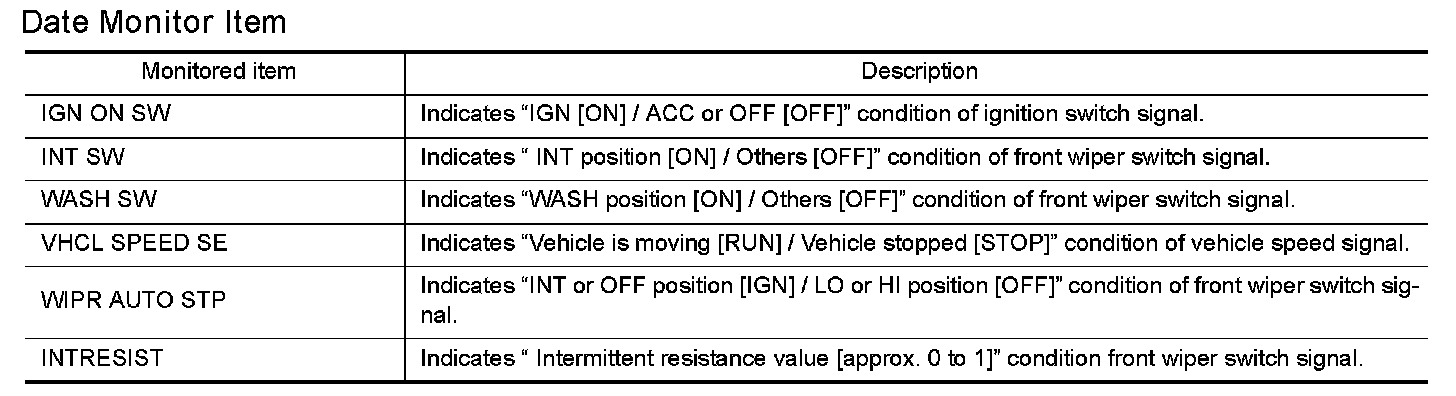

Data Monitor Item
