Air Duct: Service and Repair

DUCTS AND GRILLES

Removal and Installation

REMOVAL

Removal of Center Ventilator Grille
1. Remove instrument lower driver panel.

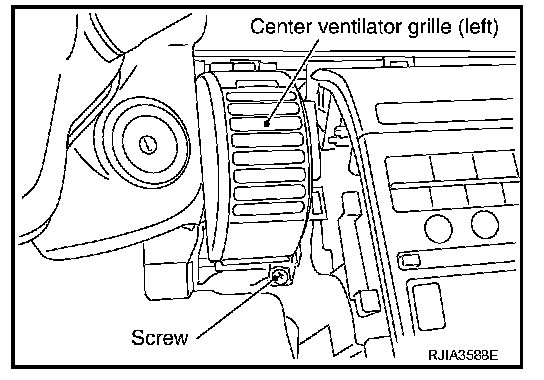

2. Remove center ventilator grill (left).
3. Remove center box assembly.

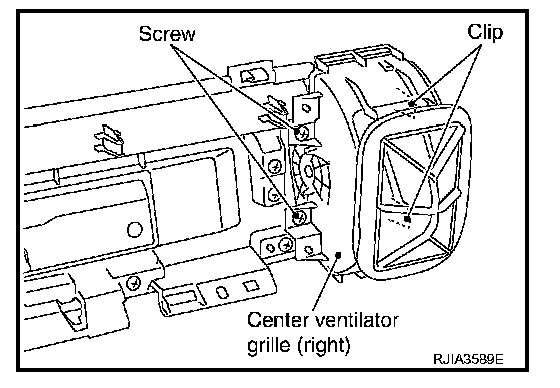

4. Remove center ventilator grille (right).

Removal of Side Ventilator Grille
1. Remove center box assembly.




2. Remove mounting screw and clips, and then remove side ventilator grille (right).
3. Remove instrument lower driver panel.
4. Remove side ventilator grille (left).

Removal of Defroster Nozzle, Ducts and Ventilator Ducts
1. Remove instrument panel assembly.




2. Remove mounting screws, and then remove side defroster ducts.
3. Remove defroster nozzle.
4. Remove mounting screws, and then remove center ventilator duct.
5. Remove steering member, and then remove side ventilator ducts.




Removal of Side Defroster Grille
1. Remove mounting clip, and then remove side defroster grilles.

Removal of Foot Ducts
1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY".




2. Remove evaporator cover, and then remove foot duct (passenger side).
3. Remove foot duct (driver side).

Removal of Floor Ducts
1. Remove front seats and center console. Refer to "FRONT SEAT" and "Removal and Installation".




2. Peel back the floor trim to a point where floor duct is visible.
3. Remove mounting clip, and then remove floor ducts.
4. Remove instrument panel assembly.

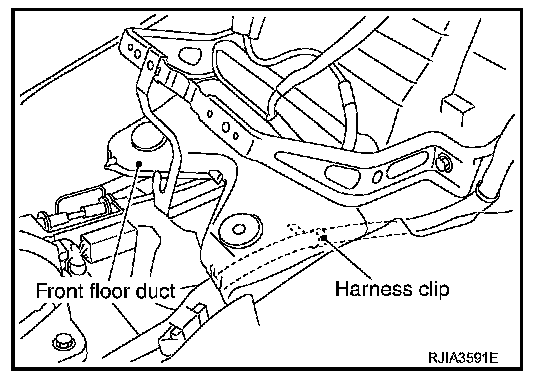

5. Remove front floor duct.

INSTALLATION
Installation is basically the reverse order of removal.
