Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

COMPONENT INSPECTION

Ambient Sensor

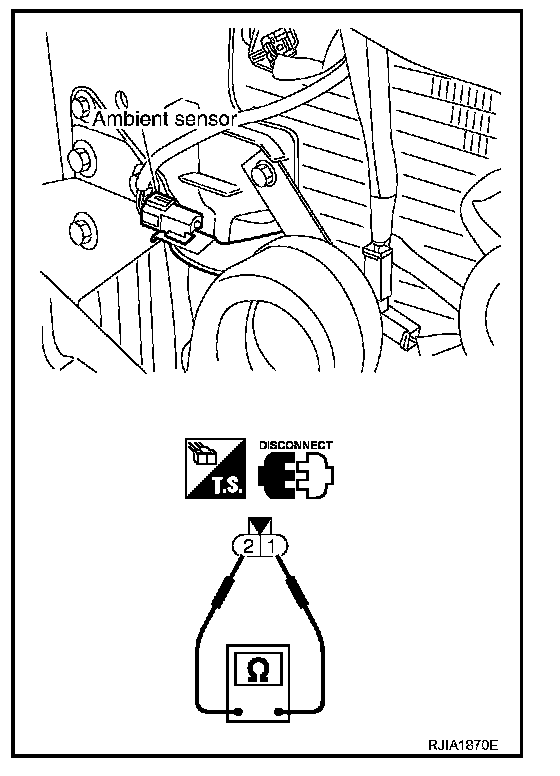

After disconnecting ambient sensor connector E34, measure resistance between terminals 1 (Y) and 2 (W/G) at sensor side, using the table given.

If NG, replace ambient sensor.
