Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER

Removal and Installation

FUNCTION

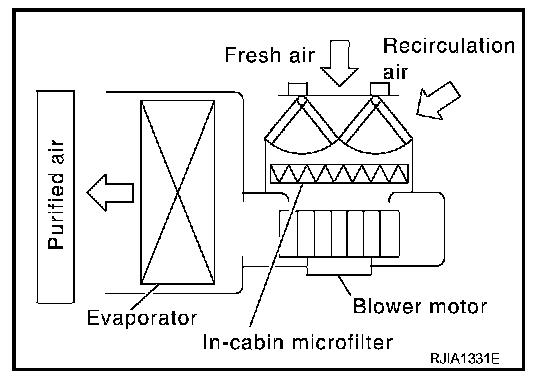

Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.

REPLACEMENT TIMING
Replace in-cabin microfilter.

Refer to "CHASSIS AND BODY MAINTENANCE" in SCHEDULE 1 and "CHASSIS AND BODY MAINTENANCE" in SCHEDULE 2.

Caution label is fixed inside glove box.




REPLACEMENT PROCEDURES
1. Remove glove box assembly.
2. Remove filter cover, and then remove in-cabin microfilter.
3. Take out in-cabin microfilter from blower unit.
4. Replace with new one and reinstall on blower unit.
5. Reinstall instrument lower passenger panel.
