Cabin Temperature Sensor / Switch: Testing and Inspection

COMPONENT INSPECTION

In-Vehicle Sensor

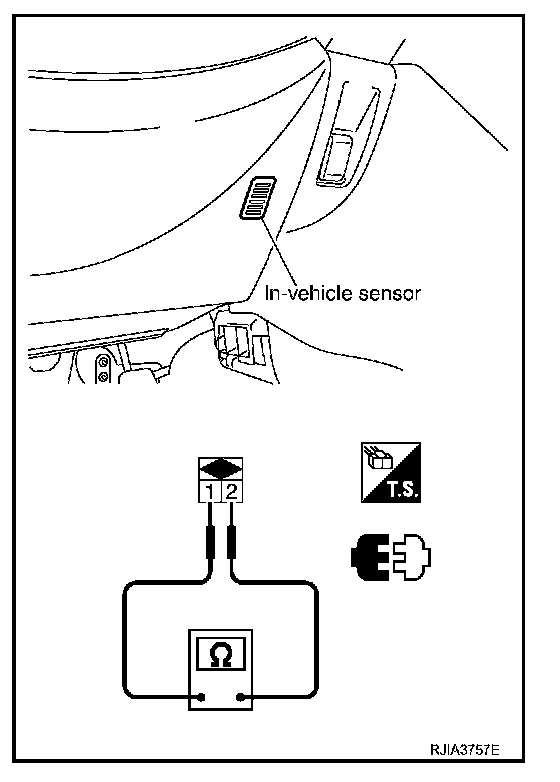

After disconnecting in-vehicle sensor connector M42, measure resistance between terminals 1 (BR/R) and 2 (W/G)at sensor side, using the table given.

If NG, replace in-vehicle sensor.
