Evaporator Temperature Sensor / Switch: Description and Operation

Intake Sensor Circuit

COMPONENT DESCRIPTION

Intake Sensor

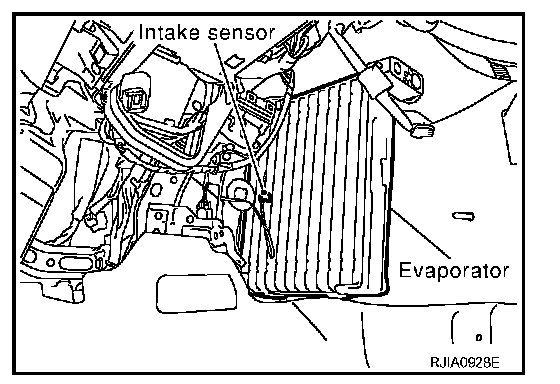

The intake sensor is located on the heater & cooling unit. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the display and A/C auto amp.
