Evaporator Temperature Sensor / Switch: Testing and Inspection

COMPONENT INSPECTION

Intake Sensor

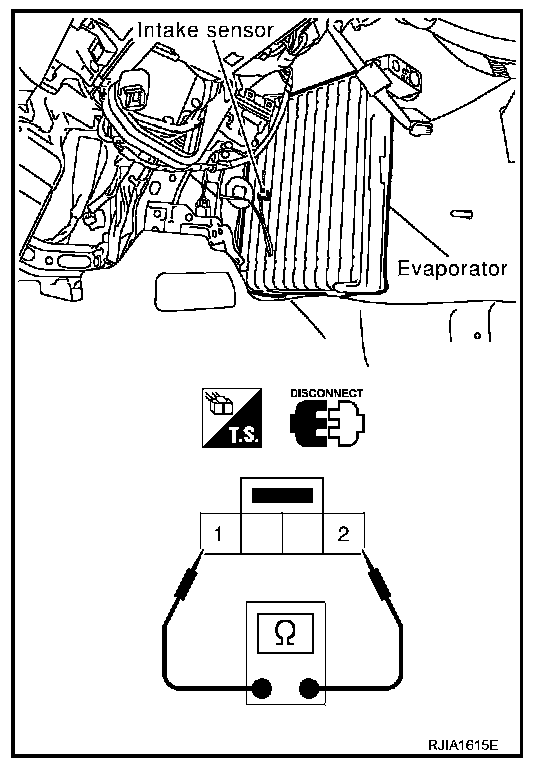

After disconnecting intake sensor connector M256, measure resistance between terminals 1 (W) and 2 (R) at sensor side, using the table given.

If NG, replace intake sensor.
