Refrigerant Pressure Sensor / Switch: Service and Repair

Removal and Installation of Refrigerant Pressure Sensor

REMOVAL
1. Remove condenser. Refer to "Removal and Installation of Condenser".

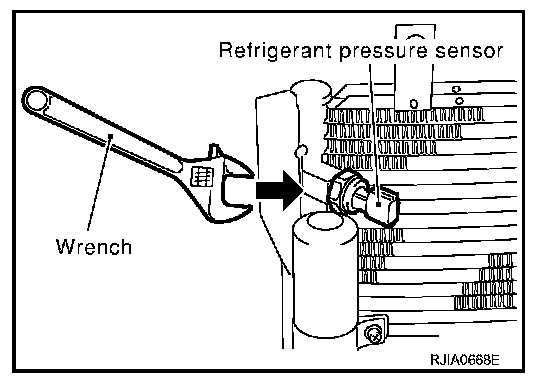

2. Remove refrigerant pressure sensor from condenser.

CAUTION: When working, be careful not to damage the condenser fins.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION: Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.

Refrigerant pressure sensor Tightening torque : 10.8 Nm (1.1 kg-m, 8.0 ft-lb)
