Cigarette Lighter: Service and Repair

Removal and Installation




REMOVAL
1. Pull out the cigarette lighter.

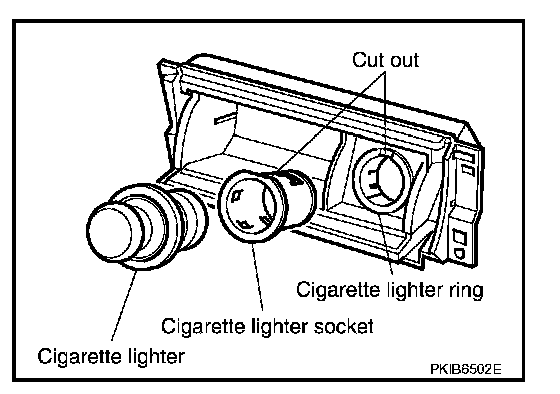

2. Insert a thin screwdriver between the cigarette lighter socket and cigarette lighter ring. hen pry out the cigarette lighter socket.

INSTALLATION
Installation is the reverse order of removal.

NOTE: Install the cigarette lighter socket with its cut out aligned with that on the cigarette lighter ring.
