Fuel Gauge Sender: Testing and Inspection

Electrical Components Inspection

FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY".

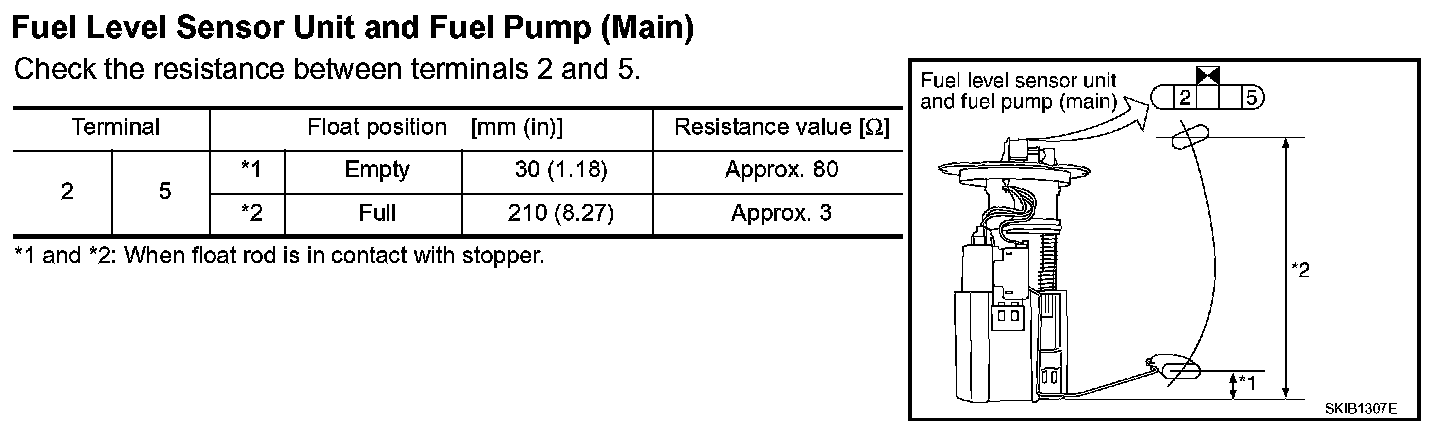

Fuel Level Sensor Unit and Fuel Pump (Main)

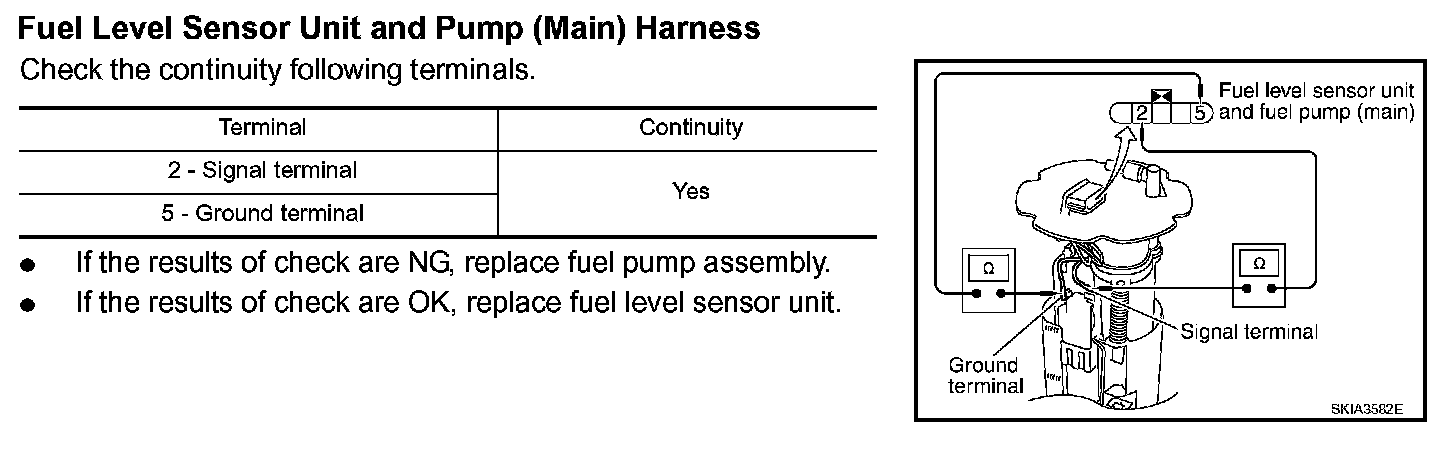

Fuel Level Sensor Unit and Fuel Pump (Main) Harness

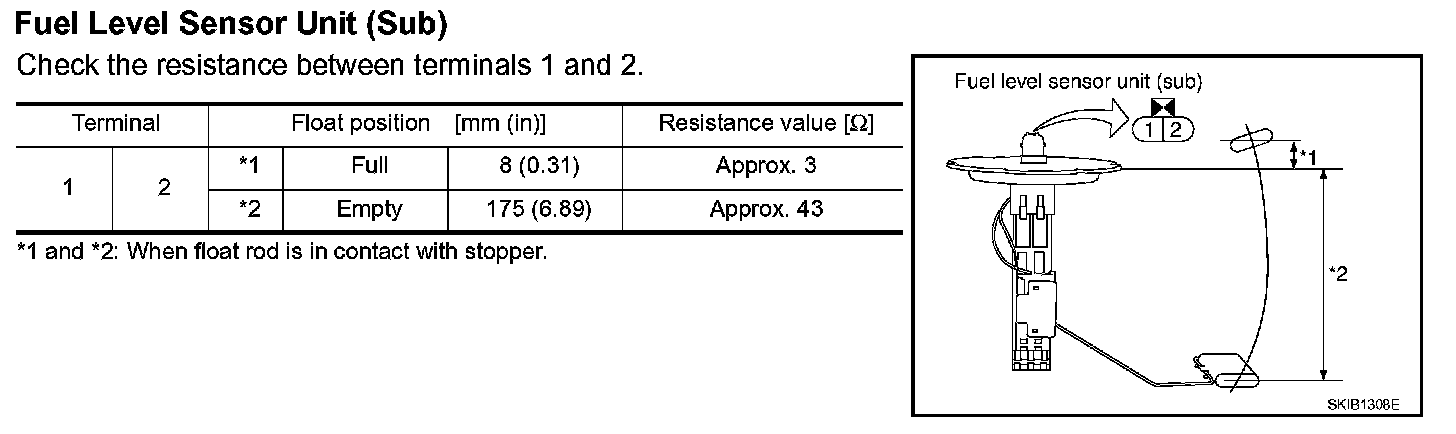

Fuel Level Sensor unit
