Center Mounted Brake Lamp: Service and Repair

Removal and Installation of High-Mounted Stop Lamp

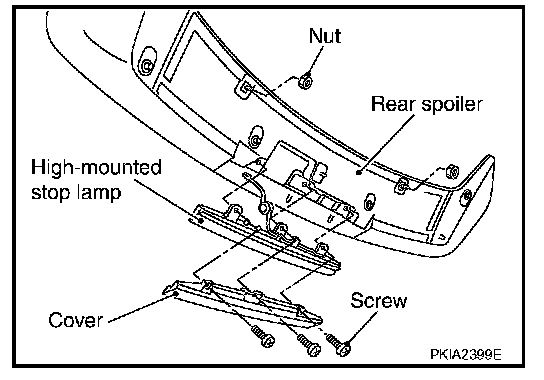

REMOVAL (WITH REAR SPOILER)
1. Remove rear spoiler. Refer to "REAR SPOILER" in "EI" section.
2. Remove screws and remove high-mounted stop lamp from rear spoiler.
3. Disconnect high-mounted stop lamp connector.

INSTALLATION
Installation is the reverse order of removal.

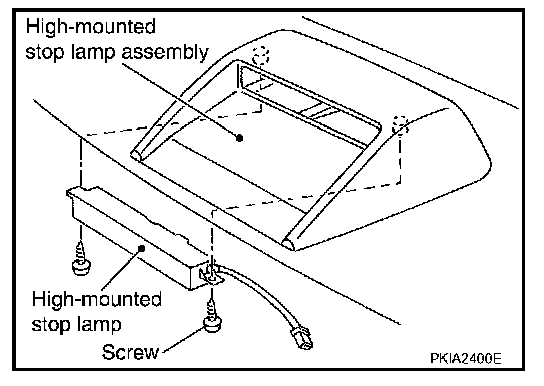

REMOVAL (WITHOUT REAR SPOILER)
1. Remove rear parcel shelf finisher. Refer to "REAR PARCEL SHELF FINISHER" in "EI" section.
2. Remove screws and remove high-mounted stop lamp from rear parcel shelf finisher.
3. Disconnect high-mounted stop lamp connector.

INSTALLATION
Installation is the reverse order of removal.
