License Plate Lamp: Service and Repair




LICENSE PLATE LAMP

Removal

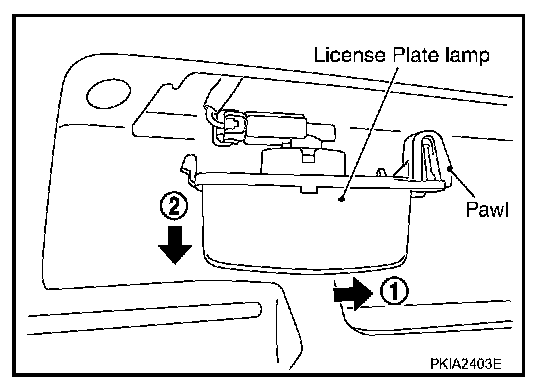

1. While pressing pawl on reverse side, push license plate towards you to remove.
2. Disconnect the license plate lamp connector.

Installation
Installation is the reverse order of removal.
