Wheels and Tires: Description and Operation
DESCRIPTIONSafety Device Preventing from Being Incorrectly Installed

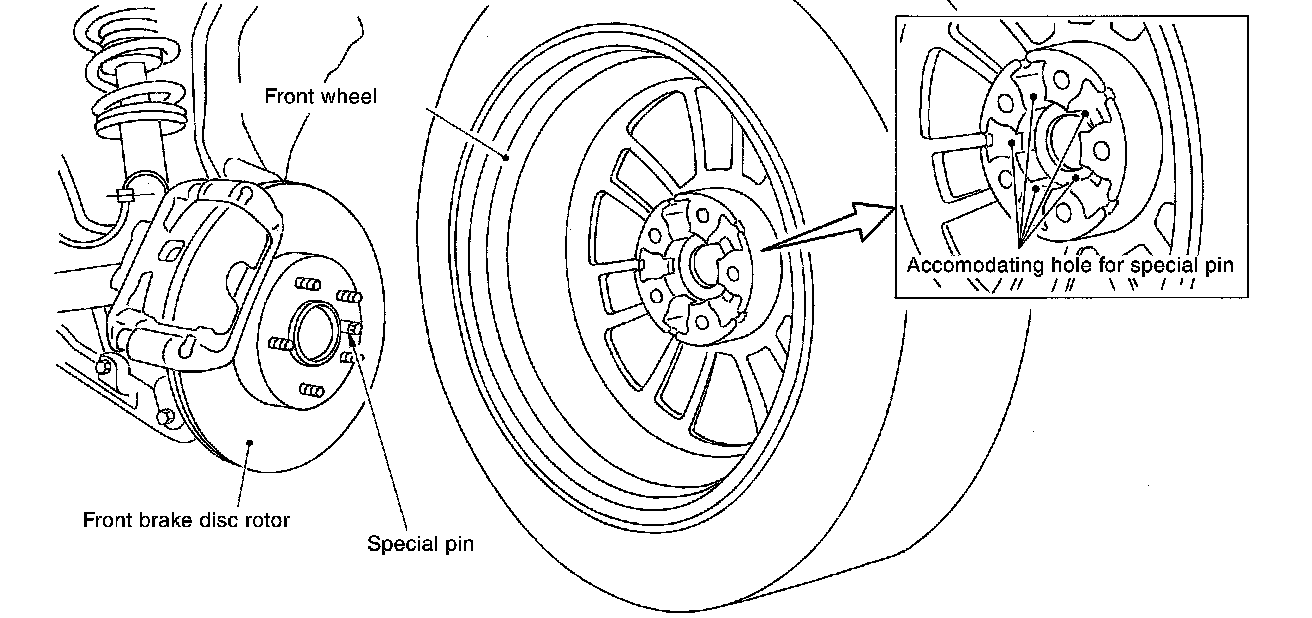

Front brake disc rotor and front wheel
^ Front and rear wheel size for this model differs, therefore a special pin has been installed on the front brake disc rotor. To accommodate this pin a hole has been provided on the front wheel (the rear wheel does not have this hole.) and in some case the rear wheel is being mistakenly installed on the front.
T-type spare tire wheel
^ T-type spare tire wheel for this model has a special hole designed to avoid the pin on front disc rotor.
