Flywheel

Flywheel (M/T models)

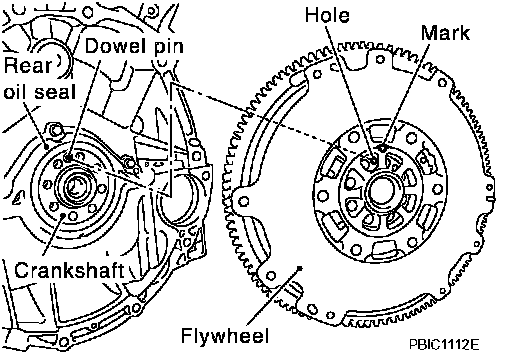

^ When installing flywheel to crankshaft, be sure to correctly align crankshaft side dowel pin and flywheel side dowel pin hole.





^ There is a mating mark on the clutch cover side of flywheel. Refer it during installation.





^ Holding ring gear with ring gear stopper (SST), tighten securing bolts with TORX socket (size: T55, commercial service tool).
^ Tighten mounting bolts crosswise over several times.

Drive plate (A/T models)





^ Install drive plate and reinforcement plate as shown in the figure.
^ Holding ring gear with ring gear stopper [SST: KV10117700 (J44716)].
^ Tighten mounting bolts crosswise over several times.

Flywheel Torque 88.2 Nm (9.0 kg-m, 65 ft. lbs.)
