Fuel System - Main Fuel Level Sensor Availability

Classification:
EL05-022

Reference:
ITB05-043

Date:
August 2, 2005

MAIN FUEL LEVEL SENSOR AVAILABLE SEPARATELY

APPLIED VEHICLE:
All G35 Coupe (CV35)

IF YOU CONFIRM:

The Main Fuel Level Sensor needs to be replaced for any reason.

ACTION:





^ Do NOT replace the entire Main Fuel Level Sensor Unit, Fuel Filter, and Fuel Pump Assembly.

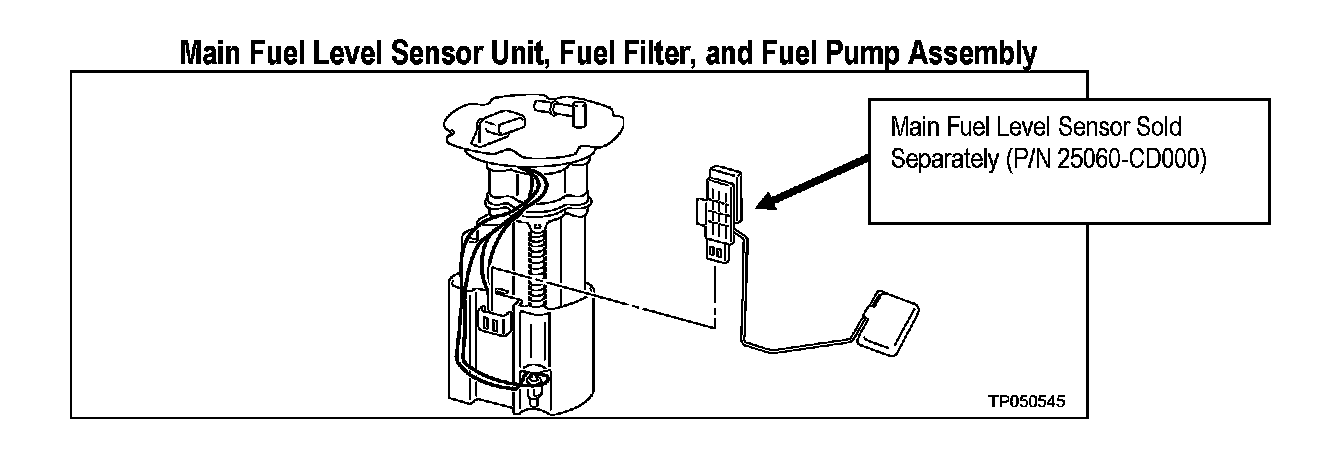

^ You can order the Main Fuel Level Sensor separately (P/N 25060-CD000).

^ Refer to the FL section of the Service Manual for replacement information.
