Windshield Washer Spray Nozzle: Adjustments

Washer Nozzle Adjustment
1. When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms do not move.

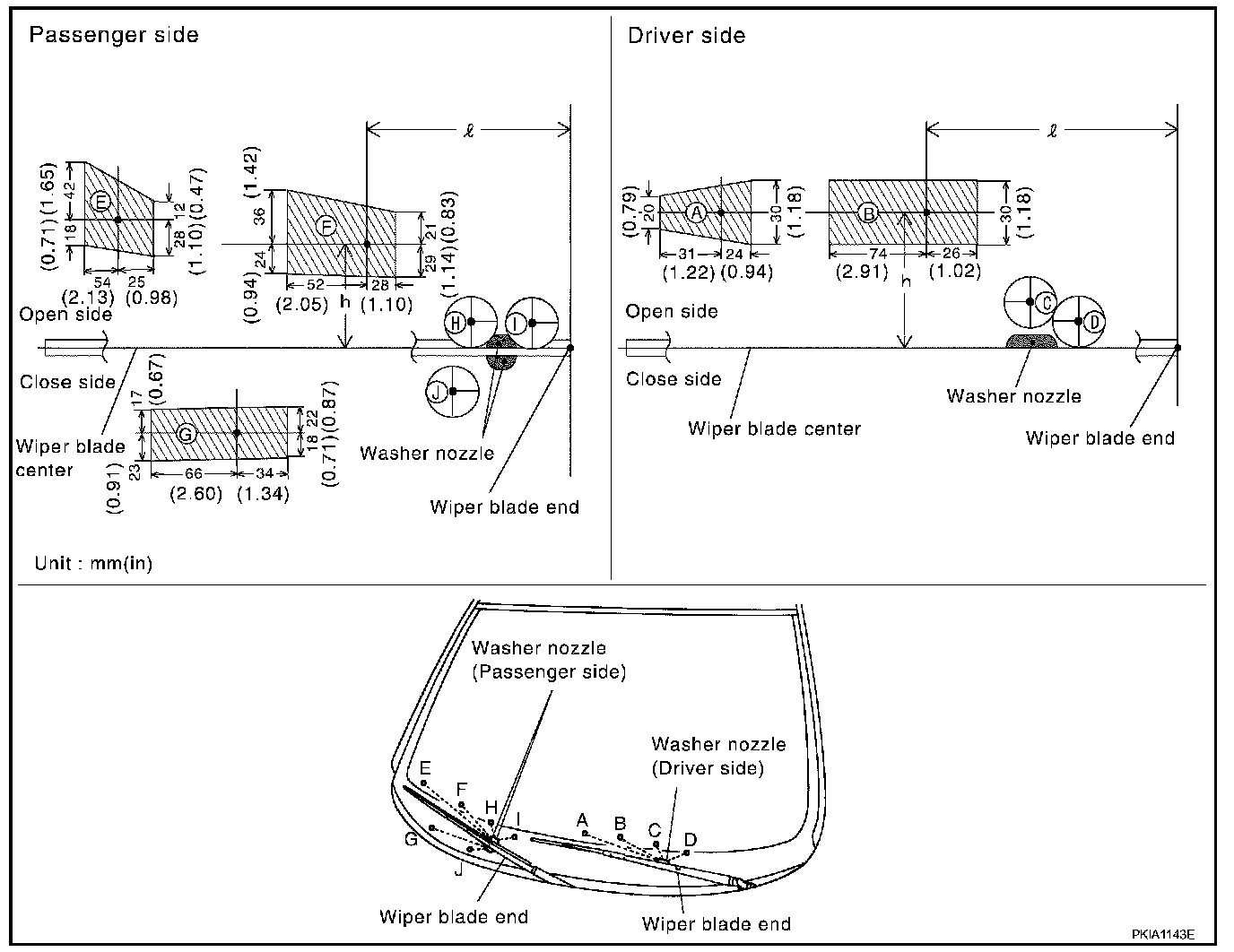

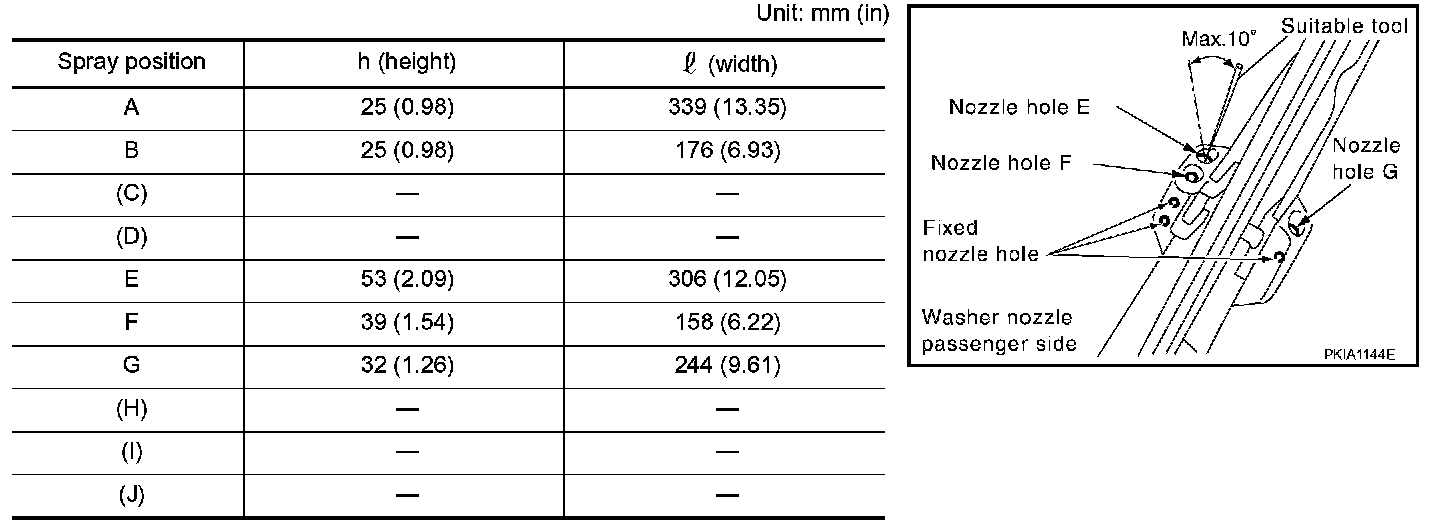

2. Adjust each nozzle position (A, B, E, F, and G) so that spray positions are in the range of shaded parts.

CAUTION: Only washer nozzles (A, B, E, F, and G) can be adjusted. Washer nozzles (C, D, H, I, and J) cannot be adjusted because of fixed nozzles.
