Initial Inspection and Diagnostic Overview

Preliminary Check:

Preliminary Check

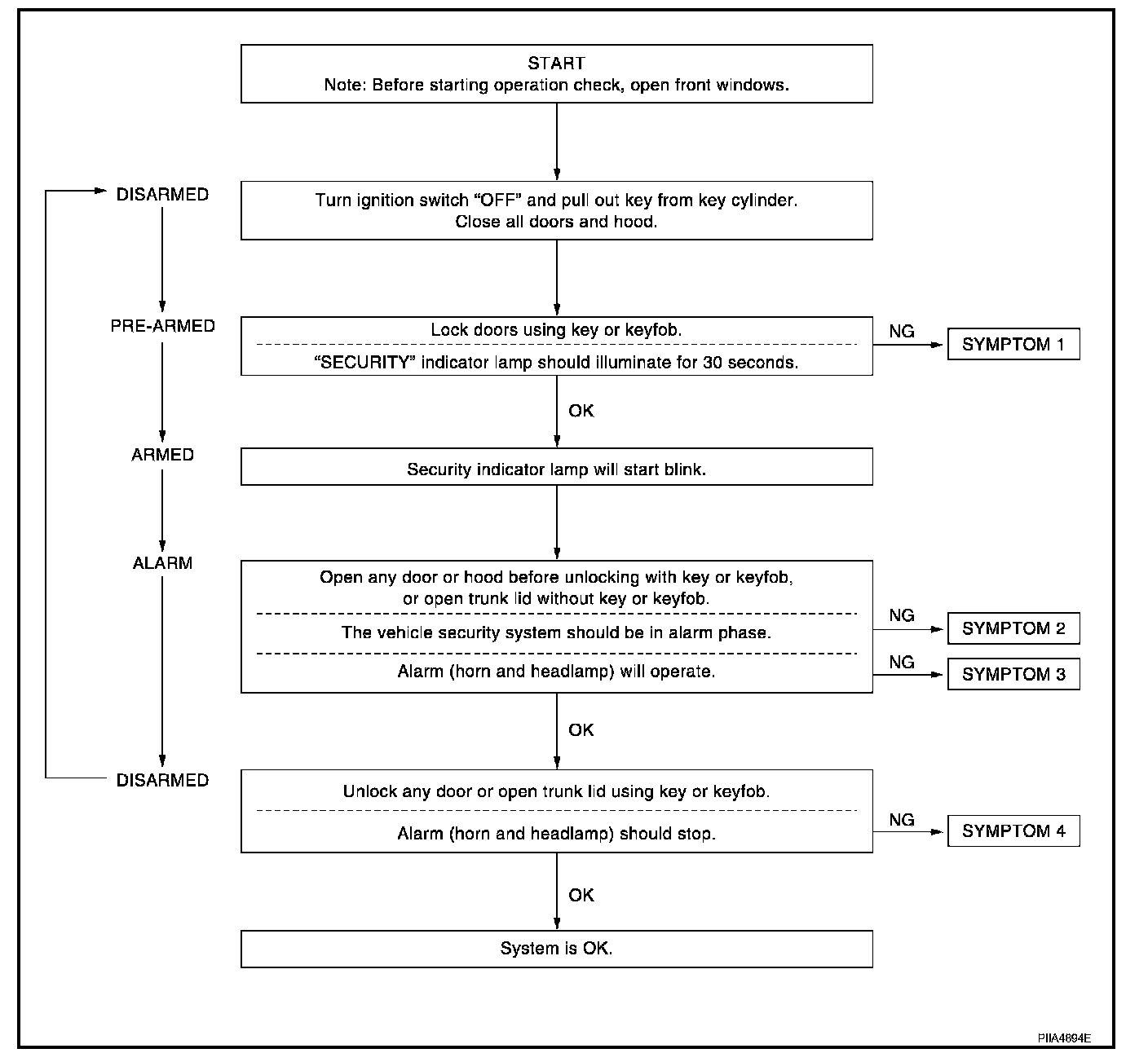

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.

After performing preliminary check, go to symptom chart. Refer to BL-216, the "Symptom Matrix Chart" Symptom Matrix Chart
