Automatic Drive Positioner

AUTOMATIC DRIVE POSITIONER

System Description
- The system automatically moves the driver seat to facilitate entry/exit to/from the vehicle. The automatic drive positioner control unit can also store the optimum driving positions (driver seat) for 2 people. If the driver is changes, one-touch operation allows changing to the other driving position.
- Using CONSULT-II, the seat slide amount at entry/exit setting can be changed.

MANUAL OPERATION

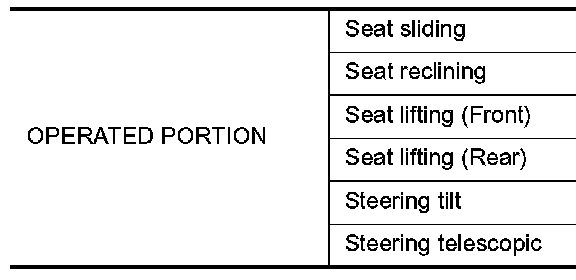

The driving position [seat position, steering wheel position (tilt, telescopic)] can be adjusted with the power seat switch or ADP steering switch.

NOTE: The seat can be manually operated with the ignition switch OFF.




AUTOMATIC OPERATION




FAIL- SAFE MODE
When any manual and automatic operations are not performed, if any motor operations of seats or tilt of steering are detected for approx. 0.1 sec or more, status is judged "Output malfunction". Motor operation will be suspended automatically, and all automatic operations will be ineffective (in this case, the motor will not operate manually).

CANCEL OF FAIL-SAFE MODE
- The mode is cancelled when the selector lever is shifted to P position from any other position.
