Function of NAVI Switch
FUNCTION OF NAVI SWITCHDisplay with Pushed "DEST" Switch

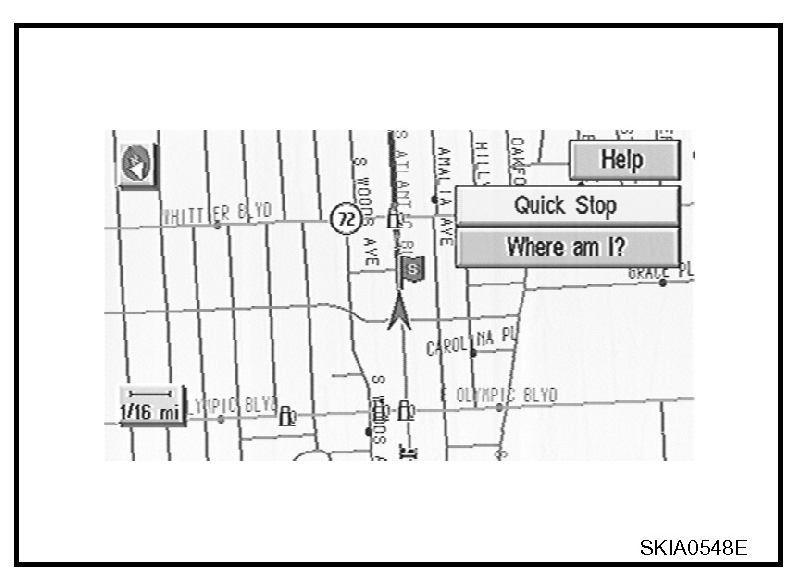

- Easy Mode

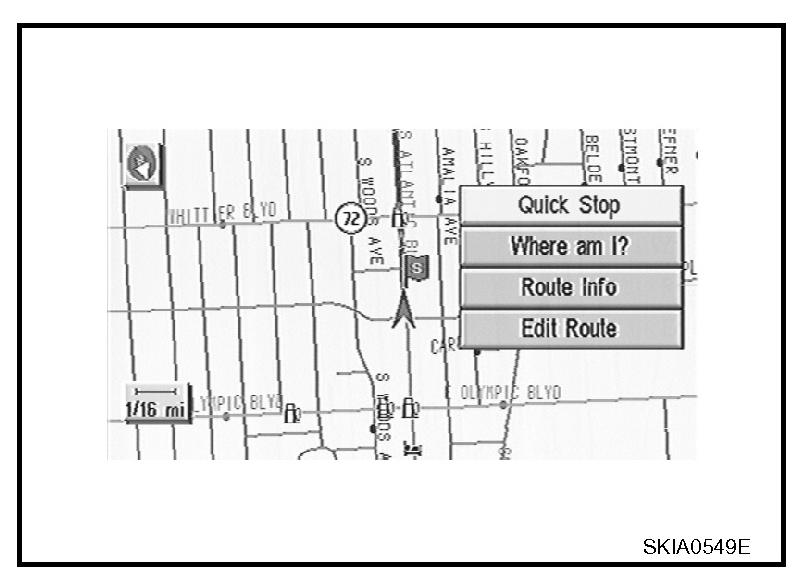

- Expert Mode
The function of each icon is as shown:
Display with Pushed "ROUTE" Switch
- Easy Mode
- Expert Mode

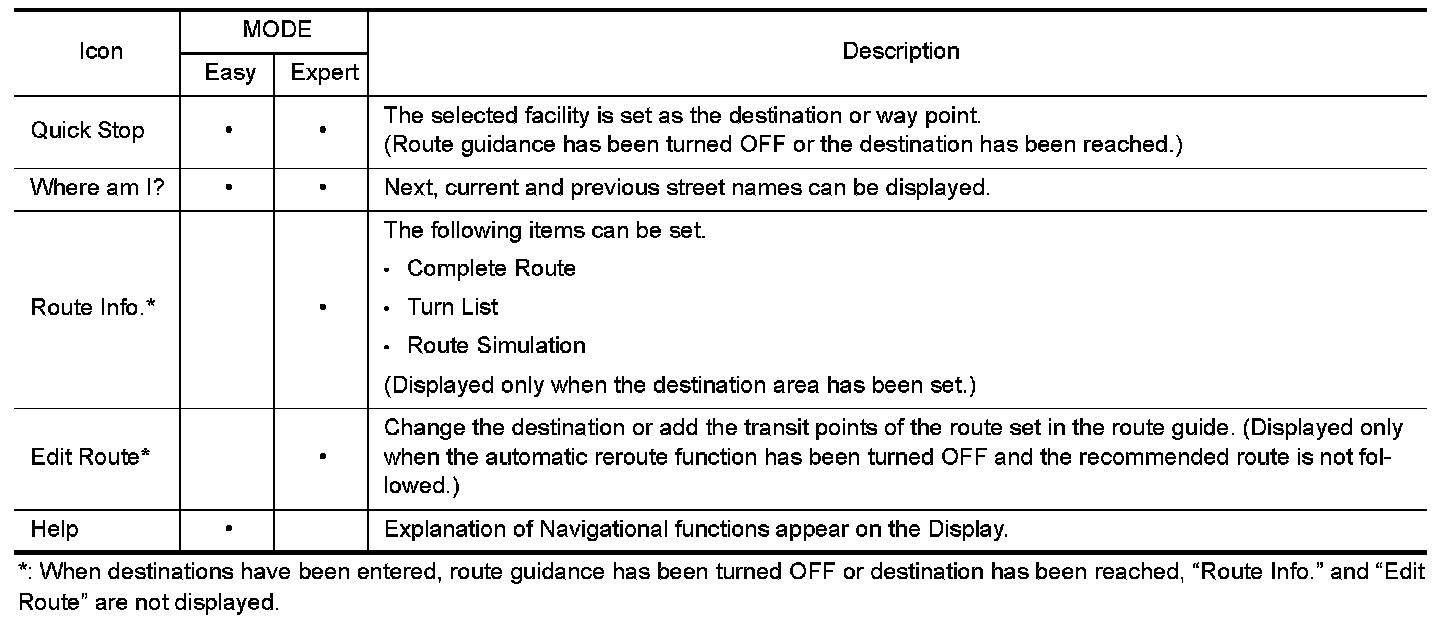

The function of each icon is as shown:

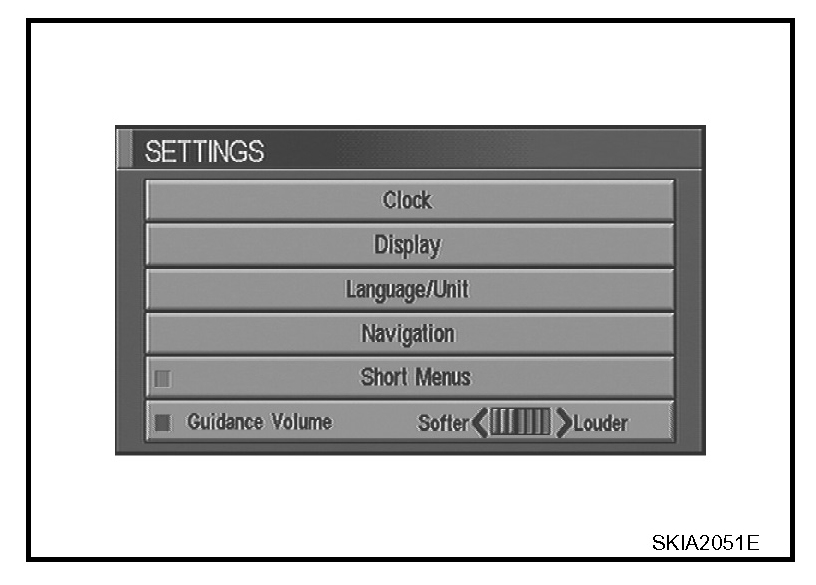

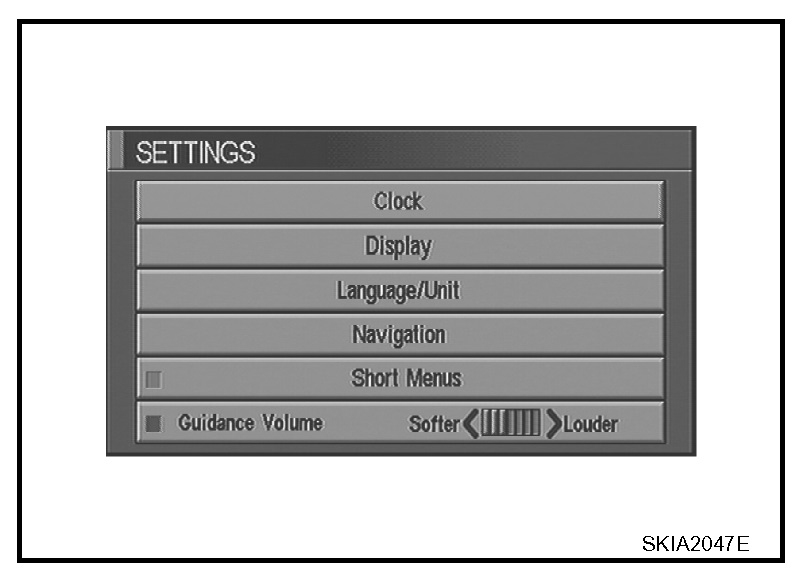

Display with Pushed "SETTING" Switch
The function of each icon is as shown:
Display with Pushed "INFO" Switch
NAVI control unit is communicating combination meter.

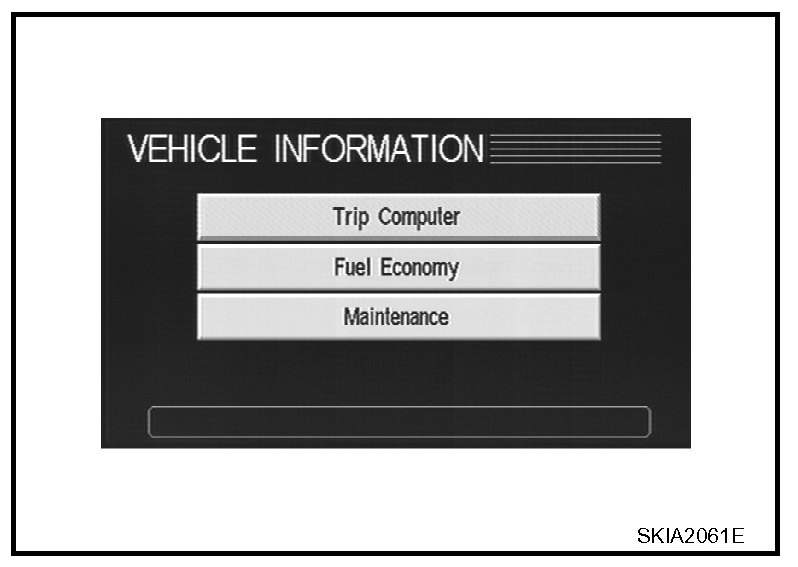

1. Push "INFO" switch to display vehicle information display.
NOTE: If a warning signal is received by NAVI at this time, NAVI control
unit displays warning message on screen.
2. Select "Trip Computer", "Fuel Economy" or "Maintenance".

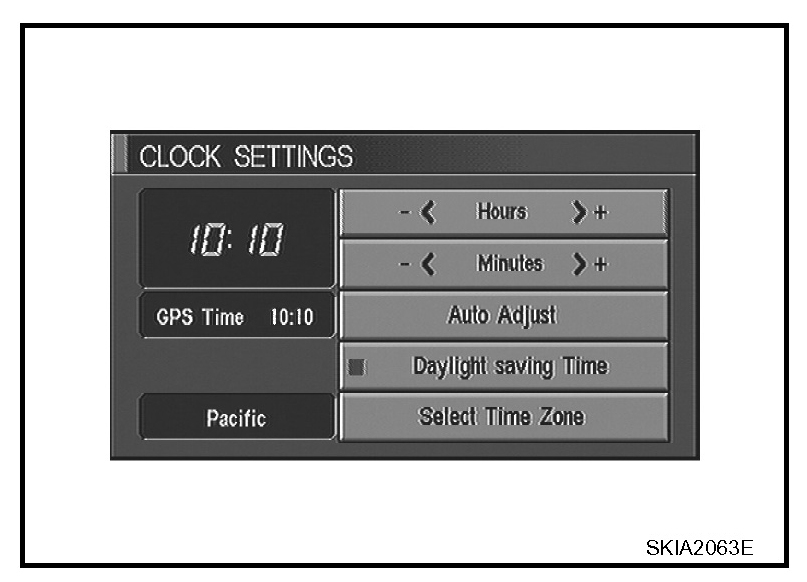

Clock Setting
How To Perform Navigation Setting
1. Start the engine.
2. Push "SETTING" switch.
3. Select "CLOCK".
- GPS time can be changed to offset time.
- Daylight Savings Time can be set.
- Time zone can be set.

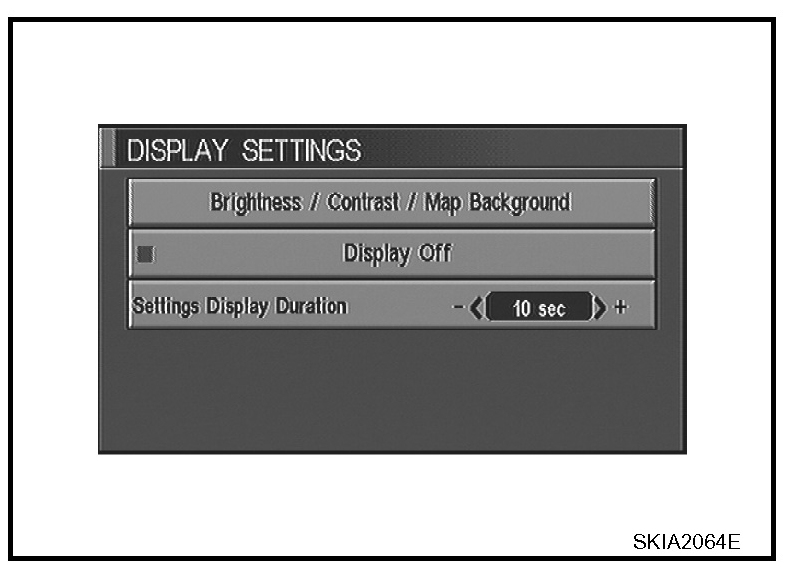

Display Setting
How To Perform Navigation Setting
1. Start the engine.
2. Push "SETTING" switch.
3. Select "Display".
- Brightness, contrast, or map background setting can be changed.
- Display sleep mode ON/OFF can be switched.
- Display sleep mode timer can be set.
Language Setting
How To Perform Navigation Setting
1. Start the engine.
2. Push "SETTING" switch.
3. Select "Language".
- Language setting can be switched.
- Unit setting can be changed.

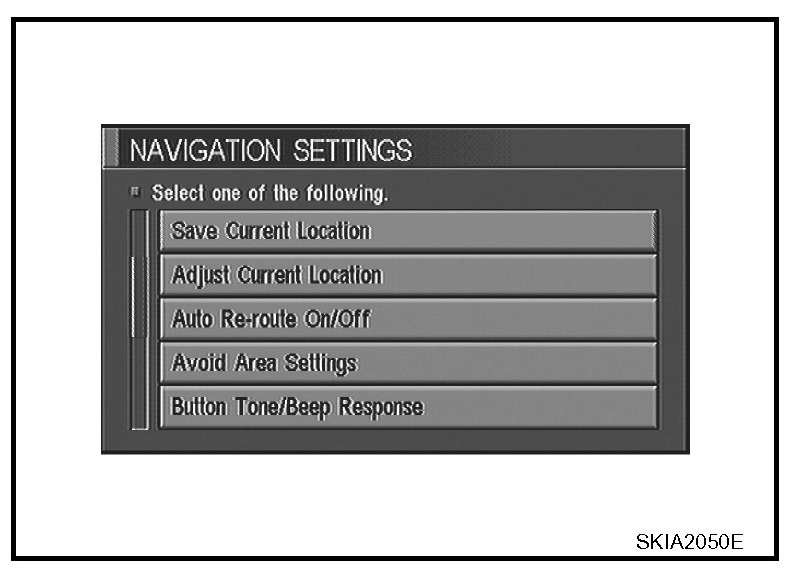

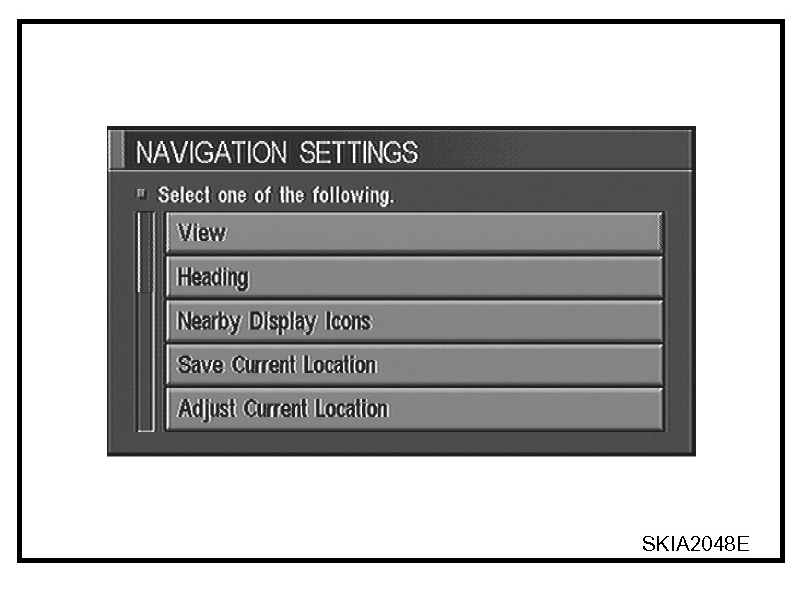

Navigation Setting
How To Perform Navigation Setting
1. Start the engine.
2. Push "SETTING" switch.
3. Select "Navigation".
Application Items:
Application Items
"VIEW" MODE
Select "Bird view" or "Plan view" icon.
- To open the map screen display with Bird View, select "Bird View".
- To open the map screen display with Plan View, select "Plan View".
"HEADING" MODE
- To display North up, select "North up".
- To display the car heading up, select "Heading up".

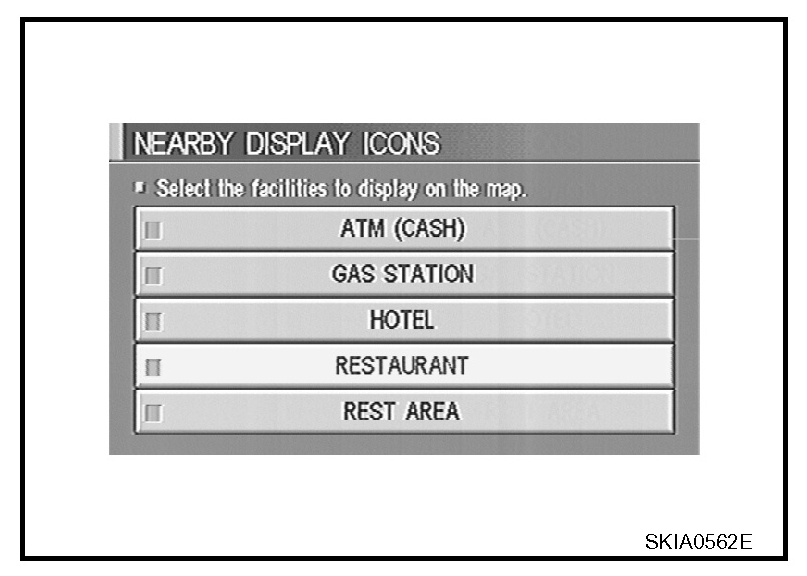

"NEARBY DISPLAY ICONS" MODE
Select an icon to display on the map screen.
"SAVE CURRENT LOCATION" MODE
The current vehicle location can be registered in "Address Book".
NOTE: "Address Book" can store 50 items max.

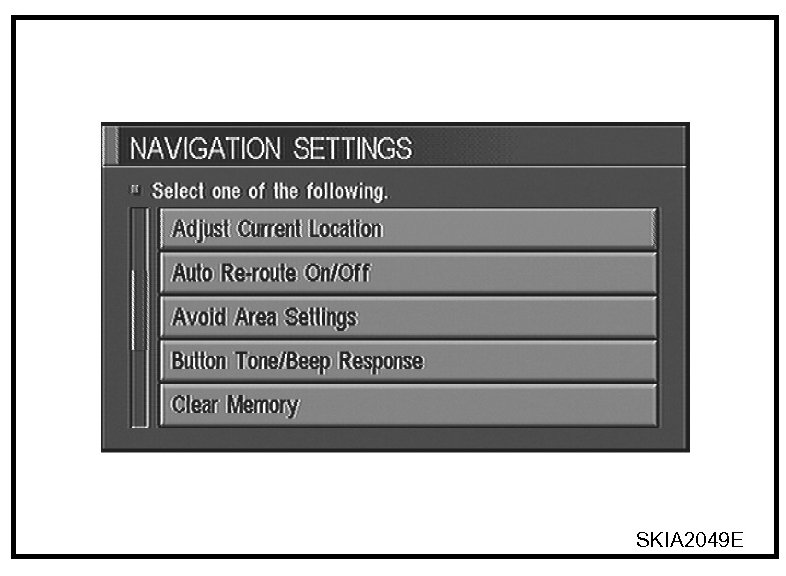

"ADJUST CURRENT LOCATION" MODE
1. Select an icon "right" or "left" to calibrate the heading direction. (Arrow marks will rotate corresponding to the calibration key.)
2. Select "Set". Then the vehicle mark will be matched to the arrow mark.

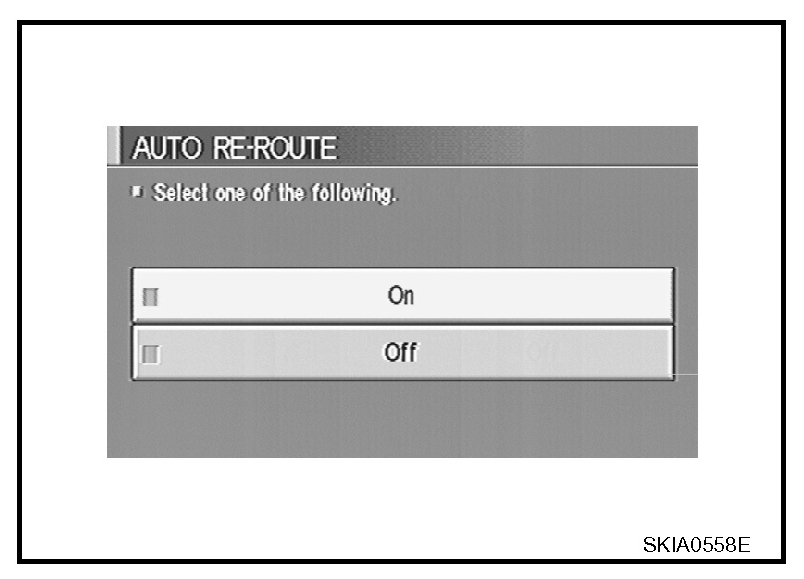

"AUTO RE-ROUTE" MODE
- To perform the auto re-route of route, select "On".
- Not to perform the auto re-route of route, select "Off".

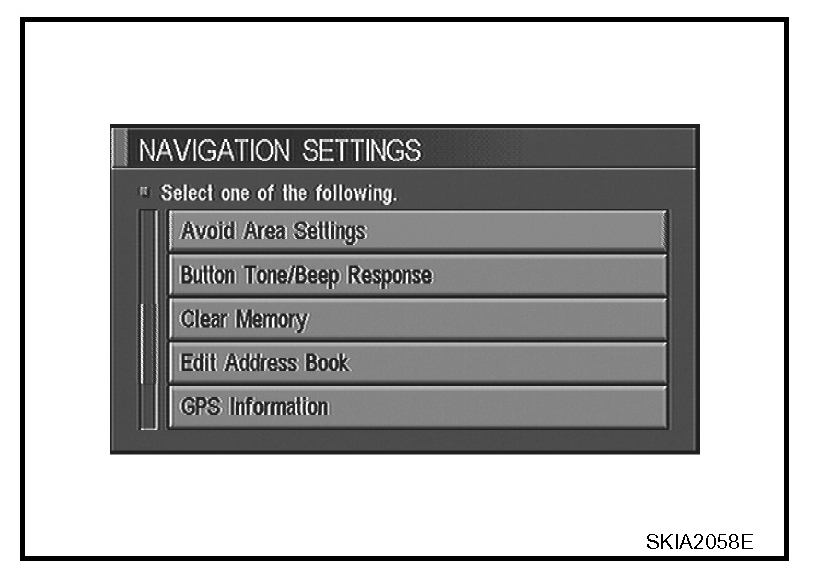

"AVOID AREA SETTING" MODE
Areas to avoid can be registered.

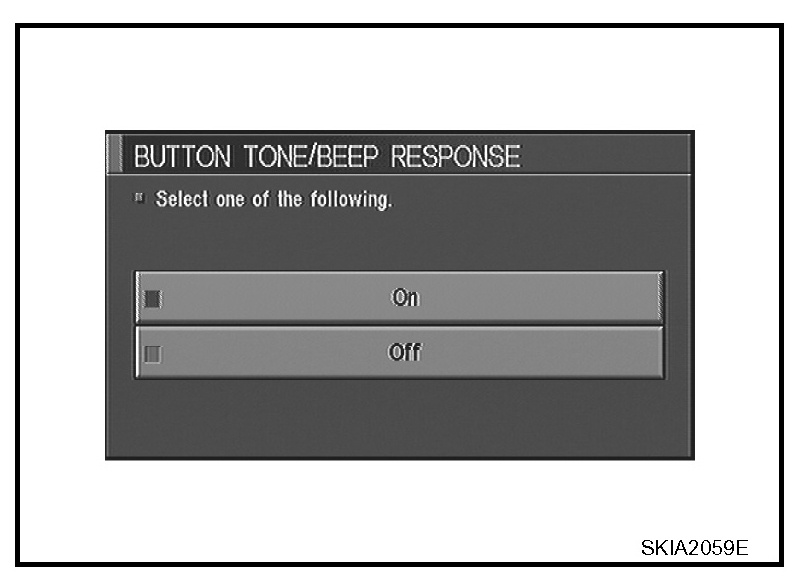

"BUTTON TONE/BEEP RESPONSE" MODE
- If beep is required, select "On".
- If no beep is required, select "Off".

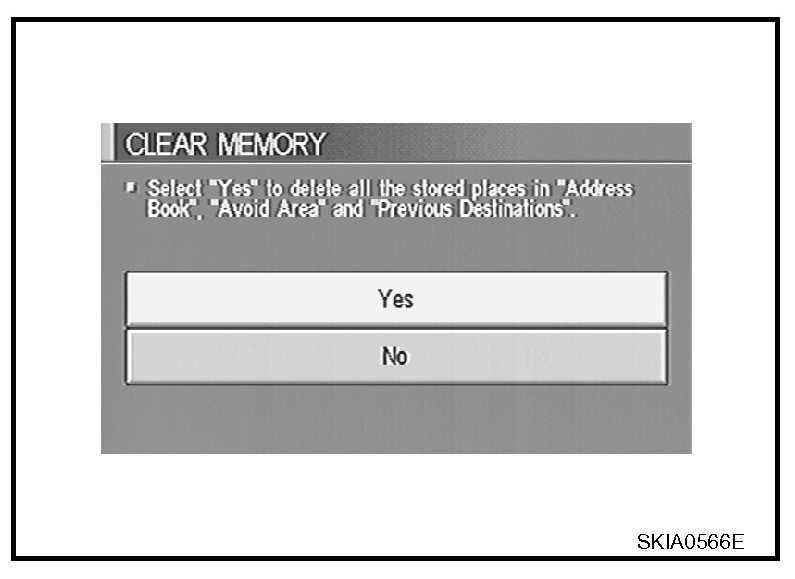

"CLEAR MEMORY" MODE
To delete all the stored places in "Address Book", "Avoid Area" and "Previous Dest", select "Yes".
"EDIT ADDRESS BOOK" MODE
Edit the items registered in Address Book.

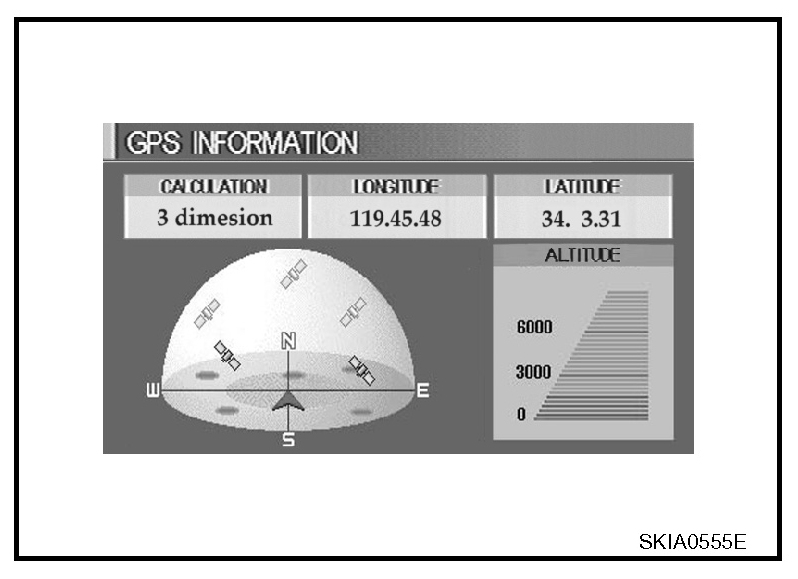

"GPS INFORMATION" MODE
Latitude, longitude, altitude, astrometric state, and satellite location are displayed as GPS information.
NOTE: Altitude is displayed only in three-dimensional status.
"QUICK STOP CUSTOMER SETTING" MODE
Select a category for the "Quick Stop" menu.
"SET AVERAGE SPEED" MODE
- Set the average vehicle speed to calibrate the estimated journey time for the destination.
- Set three items; "Freeway", "Main Roads", and "Ordinary Roads".
"TRACKING" MODE
- To leave no trail on the map, select "Off".
- To leave a trail in the map, select "On".
NOTE: When a trail display is turned OFF, trail data is erased from the memory.
GUIDE VOLUME SETTING
Description
Following voice guidance setting can be changed.
Activation/Deactivation Setting
The voice prompt can be turned on/off by pushing the "Guidance Volume" button.
Voice Volume Setting
Volume of the voice can be controlled by bending the joystick to left/right.

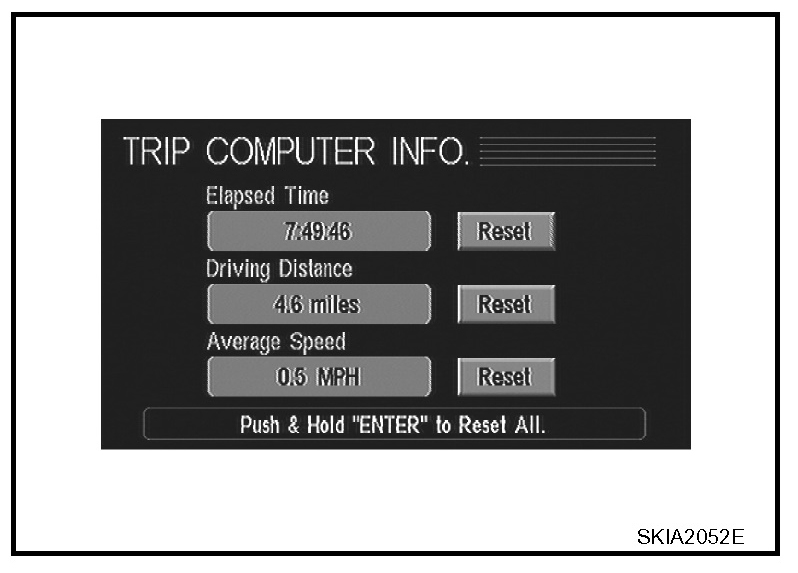

TRIP COMPUTER INFORMATION
Elapsed time, Driving distance and Average speed are displayed as Trip Computer information.
FUEL ECONOMY INFORMATION
- Average Fuel Economy, Distance to Empty, Fuel Economy are displayed as Fuel Economy information.
- Select "Fuel Economy Record". The average fuel consumption history will be displayed in graph along with the average for the previous Reset - to - Reset period.

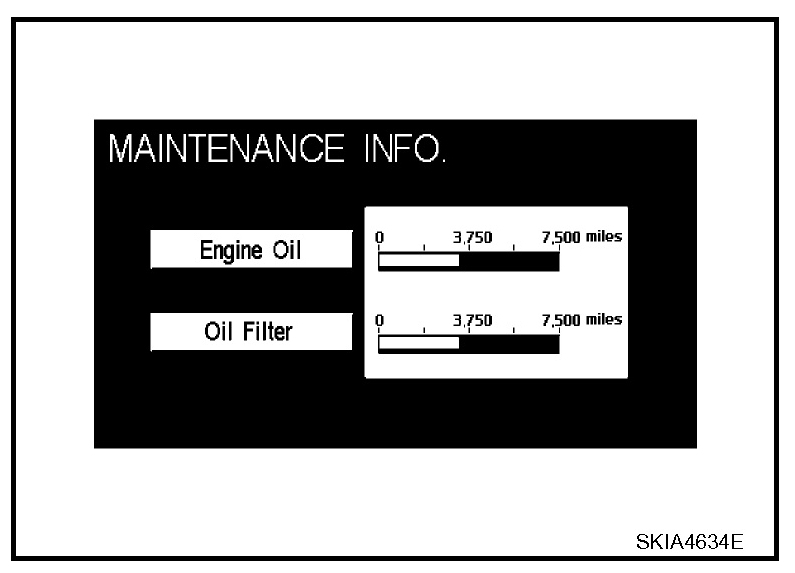

MAINTENANCE INFORMATION
Engine Oil and Oil Filter are displayed as Maintenance information.

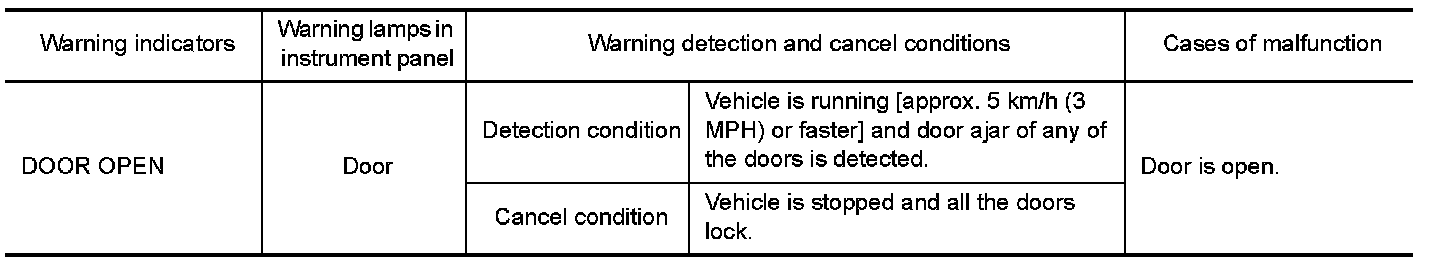

WARNING INDICATIONS
When combination meter receives warning signal from door switch, combination meter warning lamp is illuminated.
Then combination meter sends warning signal to NAVI control unit to display warning indications on the screen.
