Removal and Installation of Audio Unit

Removal and Installation of Audio Unit

REMOVAL
1. Perform damper lock operation. Refer to AV-27, "Locking CD Auto-changer Mechanism". Locking CD Auto-Changer Mechanism
2. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY".




3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.

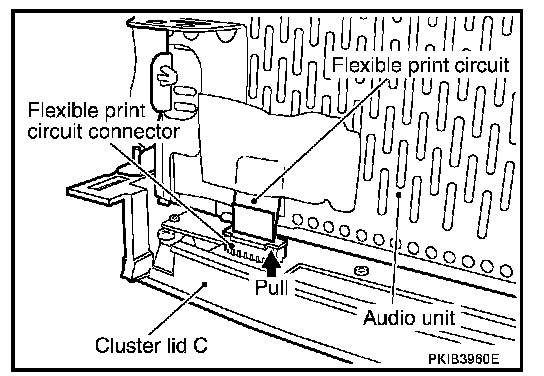

4. Pull off flexible printed circuit from connector.




5. Remove screws (8). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.




6. Separate audio unit from display unit assembly (with navigation system).

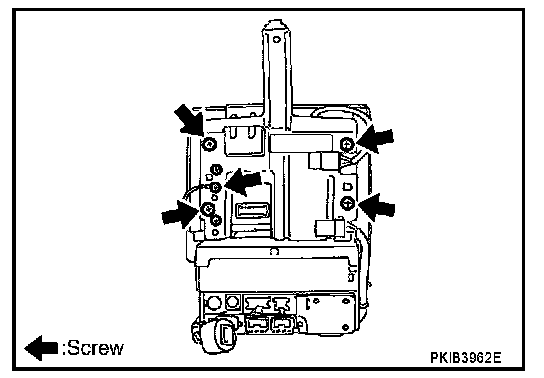

7. Remove 8 screws, and then bracket.

CAUTION: Be careful not to allow foreign material to enter from CD slot.

INSTALLATION
Installation is the reverse order of removal.
