Sunroof / Moonroof: Adjustments

Fitting Adjustment

GAP ADJUSTMENT (A-A, B-B, C-C)
1. Tilt up glass lid to remove upper and lower side trims.
2. Loosen glass lid installation bolts, and tilt down glass lid.

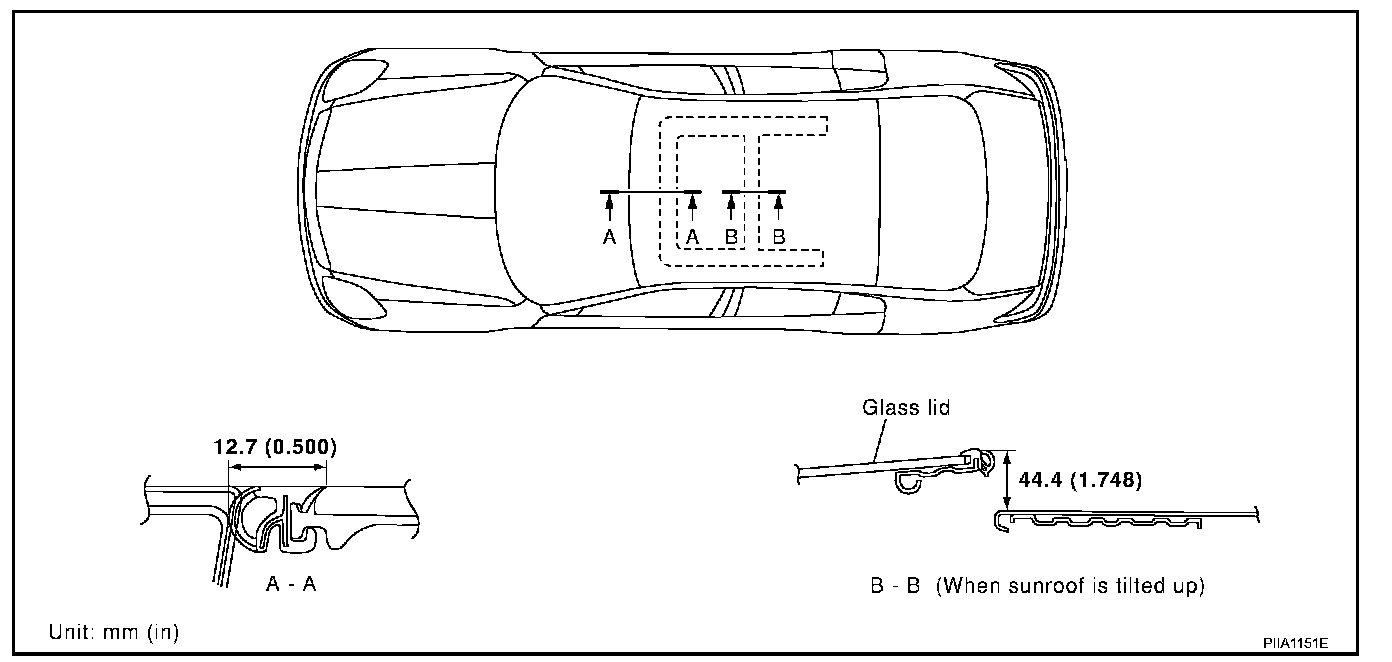

3. Adjust glass lid according to sections A - A, B - B, C - C, as shown in the figure.
4. After adjusting glass lid, tighten bolts to specified torque.
5. Tilt glass lid 4 to 5 times to confirm that it goes up and down smoothly.

HEIGHT DIFFERENCE ADJUSTMENT
1. Tilt glass lid up and down.




2. Check height difference between roof panel and glass lid, and compare to "A - A" as shown.
3. If necessary, adjust height difference by using the following procedure.
1. Tilt up glass lid to remove upper and lower side trims.
2. Loosen glass lid installation bolts, and tilt down glass lid.
3. Loosen glass lid installation bolts and move glass lid to adjust surface height of the glass lid and roof panel.
4. After adjusting glass lid, tighten installation bolts to specified torque.
5. Tilt glass lid 4 to 5 times to confirm that it goes up and down smoothly.
6. After adjusting the fit, use a hose to flush entire roof with water and check for leaks.
