LAN Diagrams (LAN System)

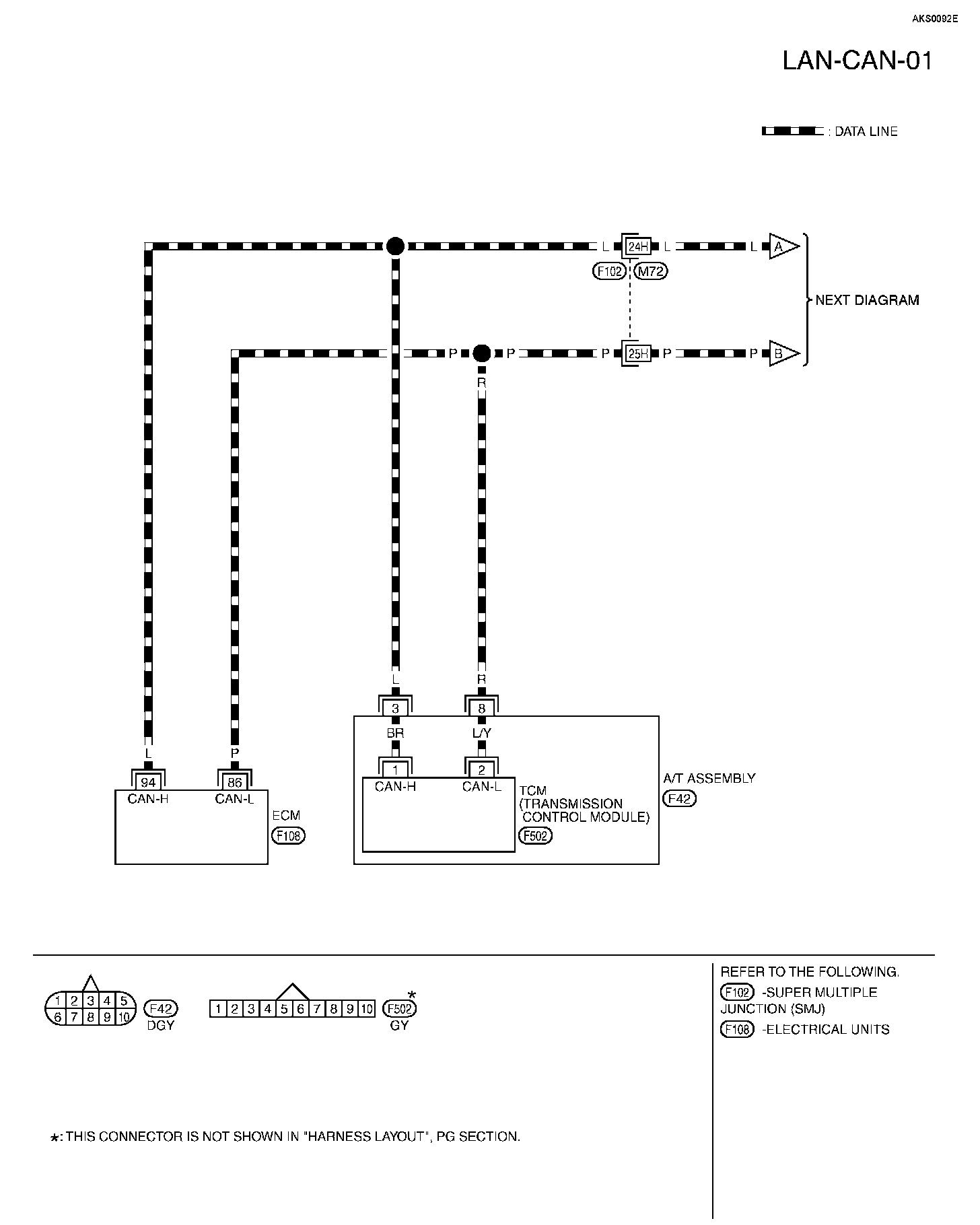

LAN-CAN-01:

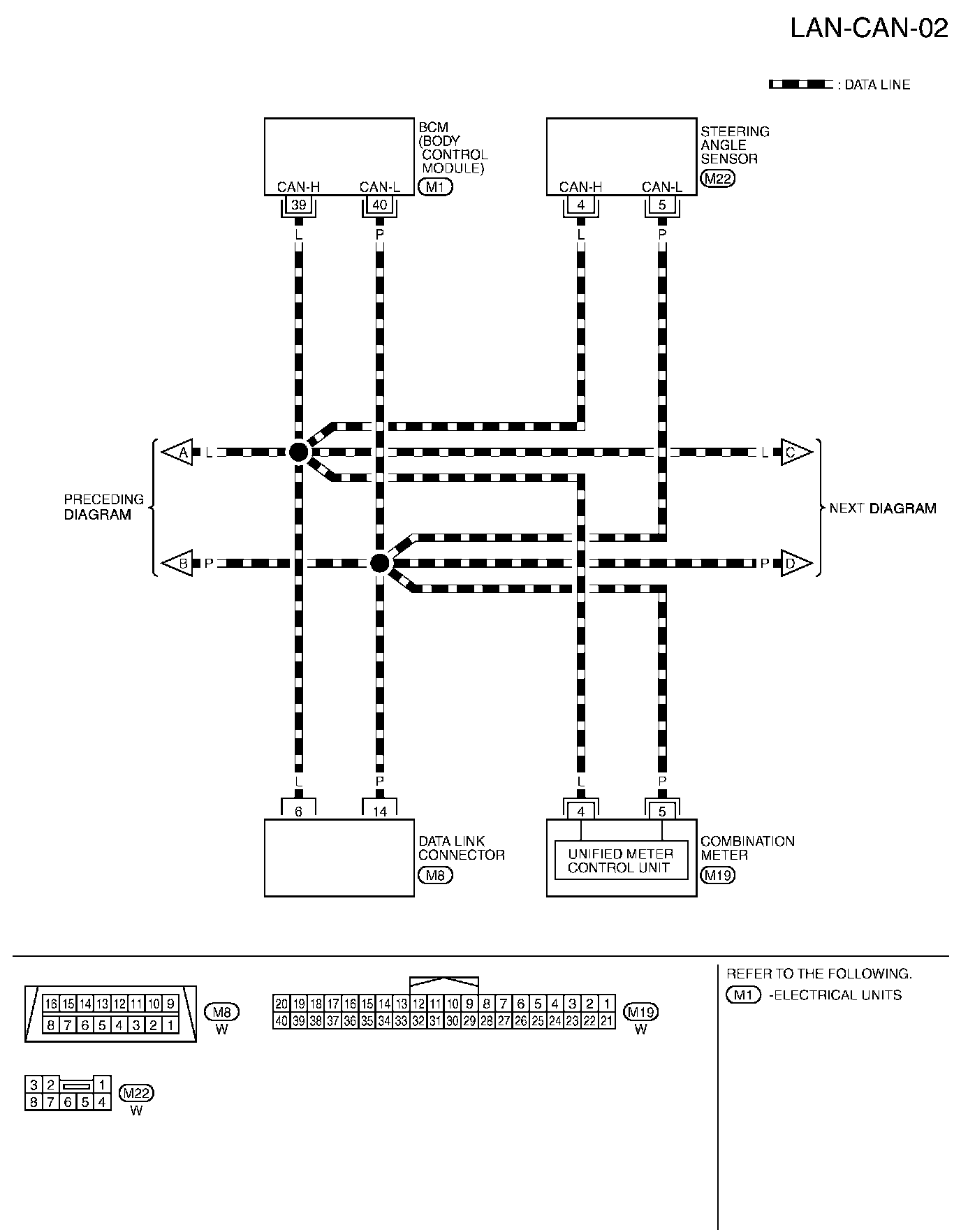

LAN-CAN-02:
LAN-CAN-03:
LAN-CAN-04:

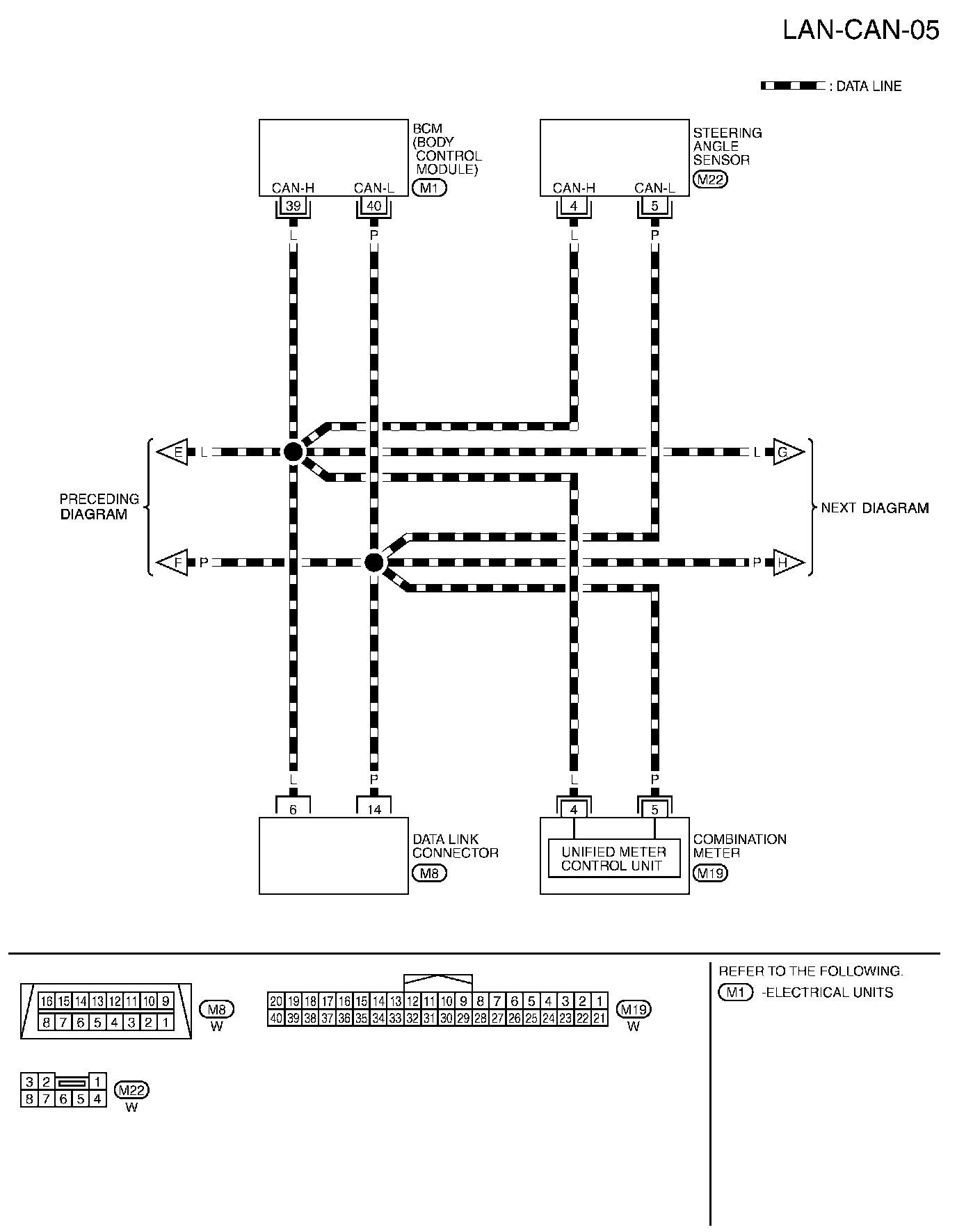

LAN-CAN-05:
LAN-CAN-06:
LAN-CAN-07:

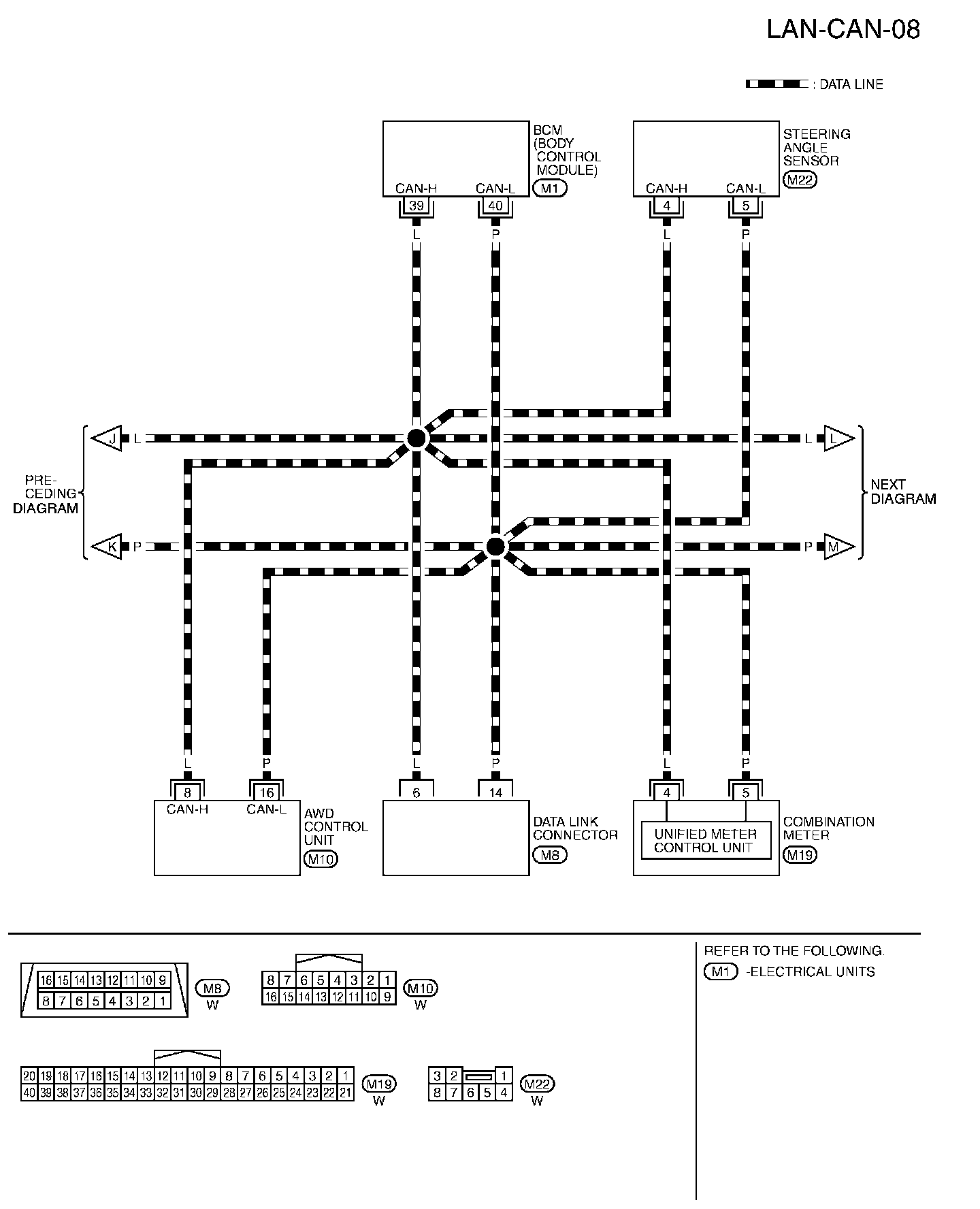

LAN-CAN-08:
LAN-CAN-09:

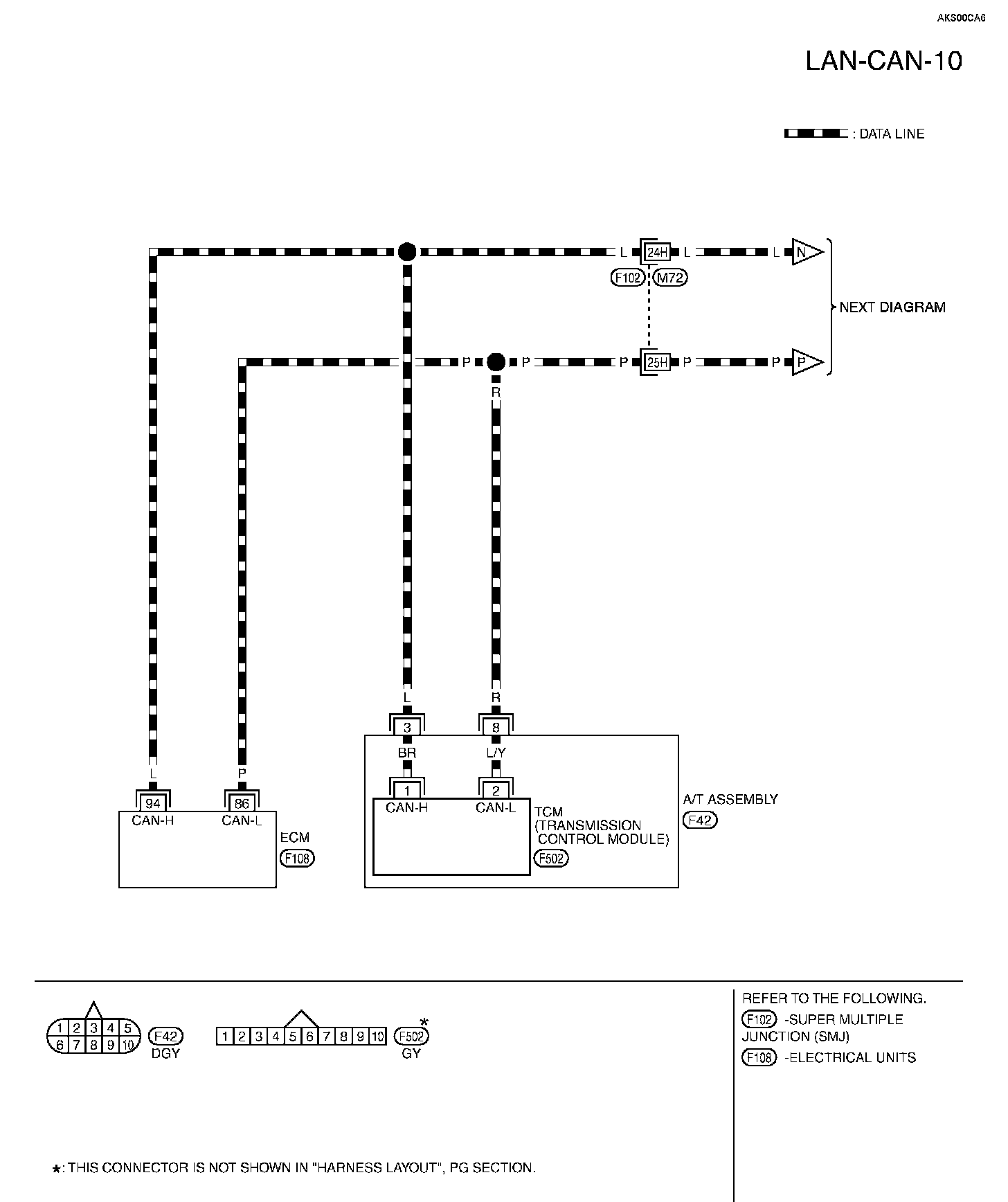

LAN-CAN-10:
LAN-CAN-11:

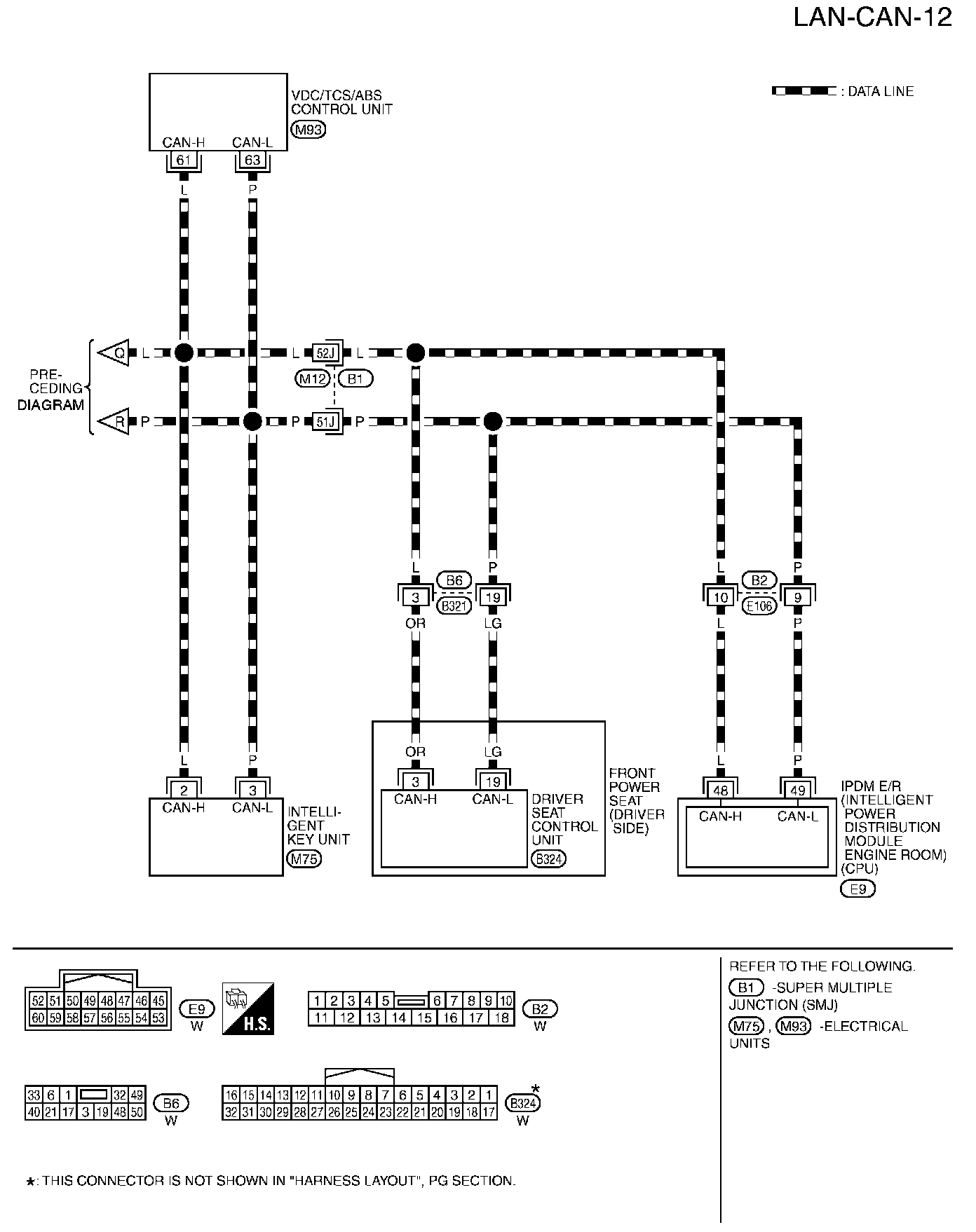

LAN-CAN-12:
