Home >> Infiniti >> 2005 >> G35 Sedan 2WD V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Parking Pawl, A/T

Parking Pawl, A/T

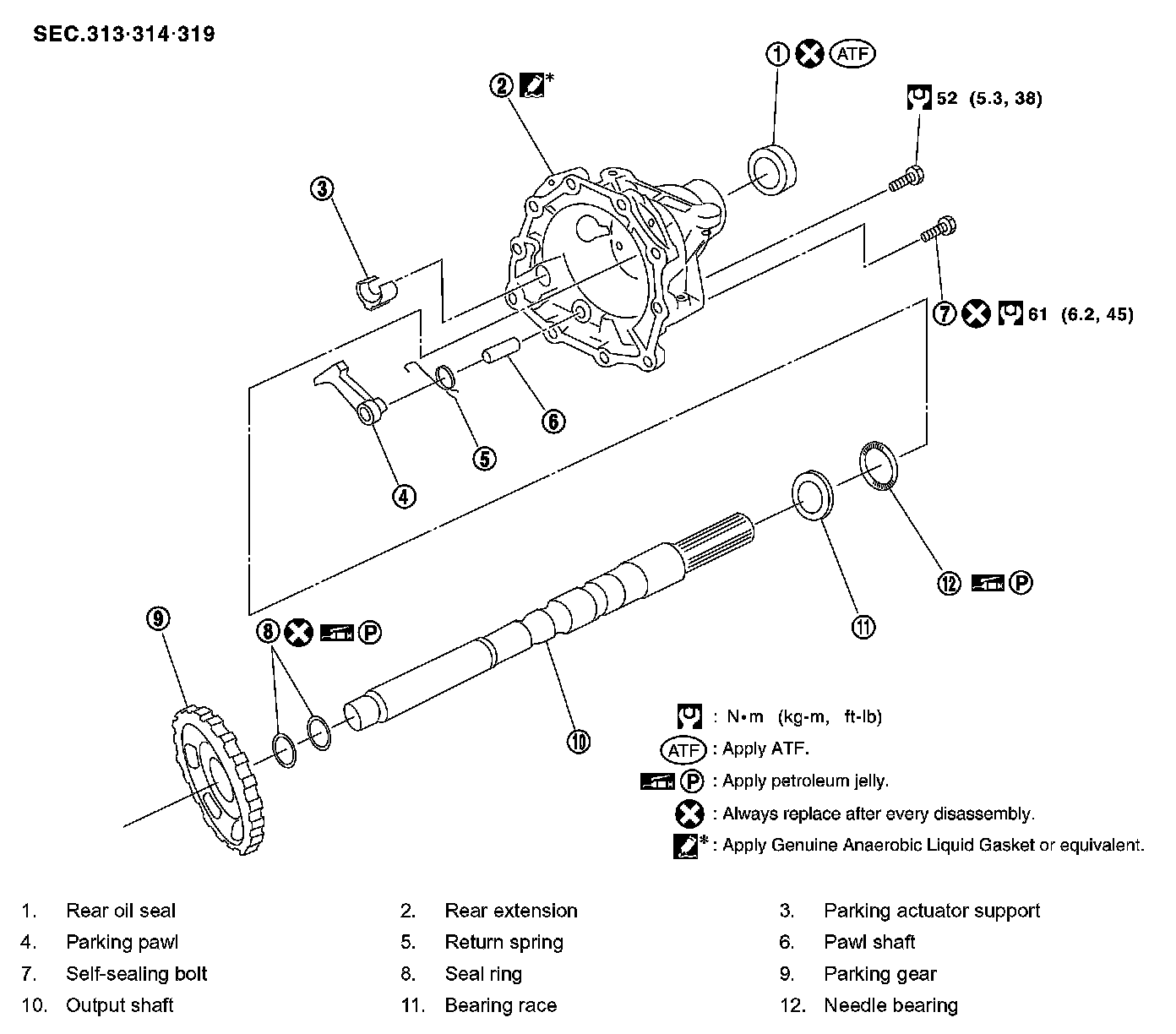

Parking Components (2WD Models Only)
