Intake Door Motor Circuit

Intake Door Motor Circuit

SYMPTOM:
- Intake door does not change.
- Intake door motor does not operate normally.

Inspection Flow:




INSPECTION FLOW

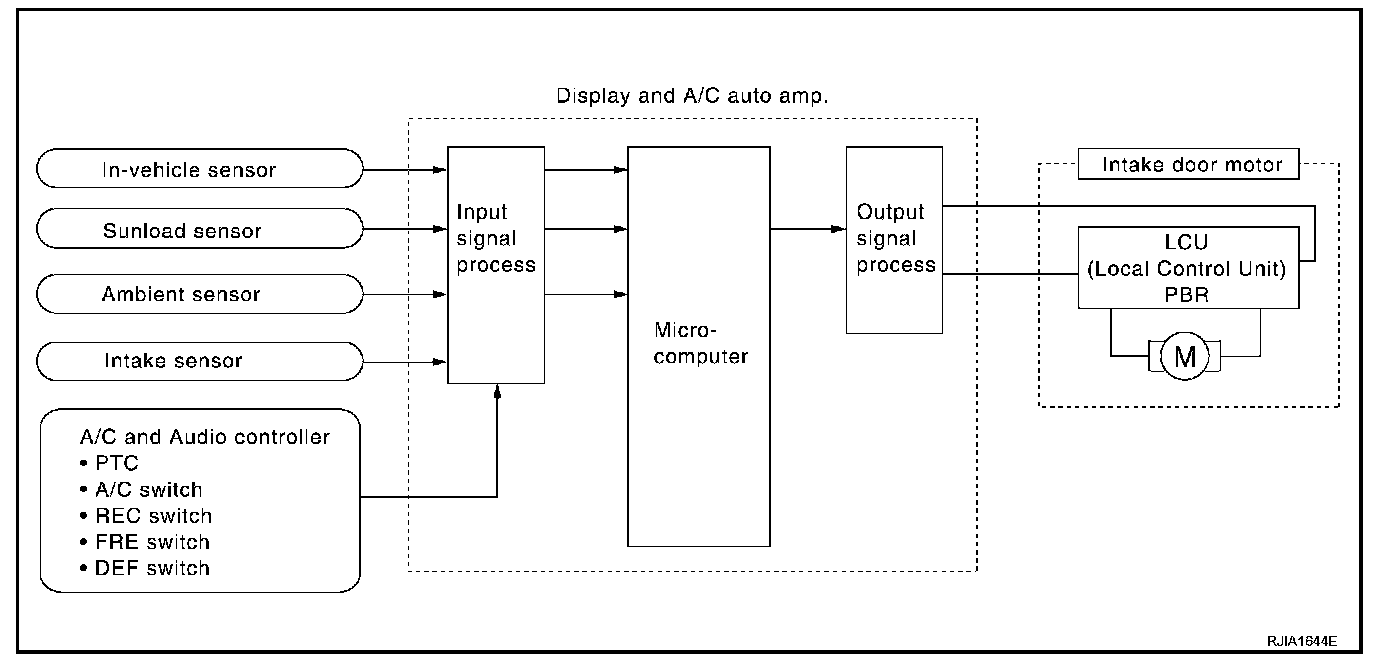

SYSTEM DESCRIPTION

Component Parts
Intake door control system components are:
- Display and A/C auto amp.
- Intake door motor (LCU)
- A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)
- In-vehicle sensor
- Ambient sensor
- Sunload sensor
- Intake sensor




System Operation
The intake door control determines intake door position based on the ambient temperature, the intake air temperature and the in-vehicle temperature. When the DEFROST, or OFF switches are pushed, the display and A/C auto amp. sets the intake door at the FRESH position.

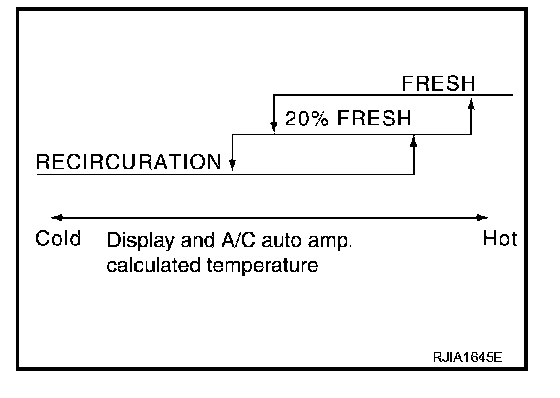

Intake Door Control Specification

COMPONENT DESCRIPTION




Intake Door Motor
The intake door motor is attached to the intake unit. It rotates so that air is drawn from inlets set by the display and A/C auto amp. Motor rotation is conveyed to a lever which activates the intake door.

DIAGNOSTIC PROCEDURE FOR INTAKE DOOR MOTOR

SYMPTOM: Intake door motor does not operate normally.
Perform diagnostic procedure. Refer to ATC-67, "DIAGNOSTIC PROCEDURE FOR LAN CIRCUIT". LAN System Circuit
