Engine Control System Schematic

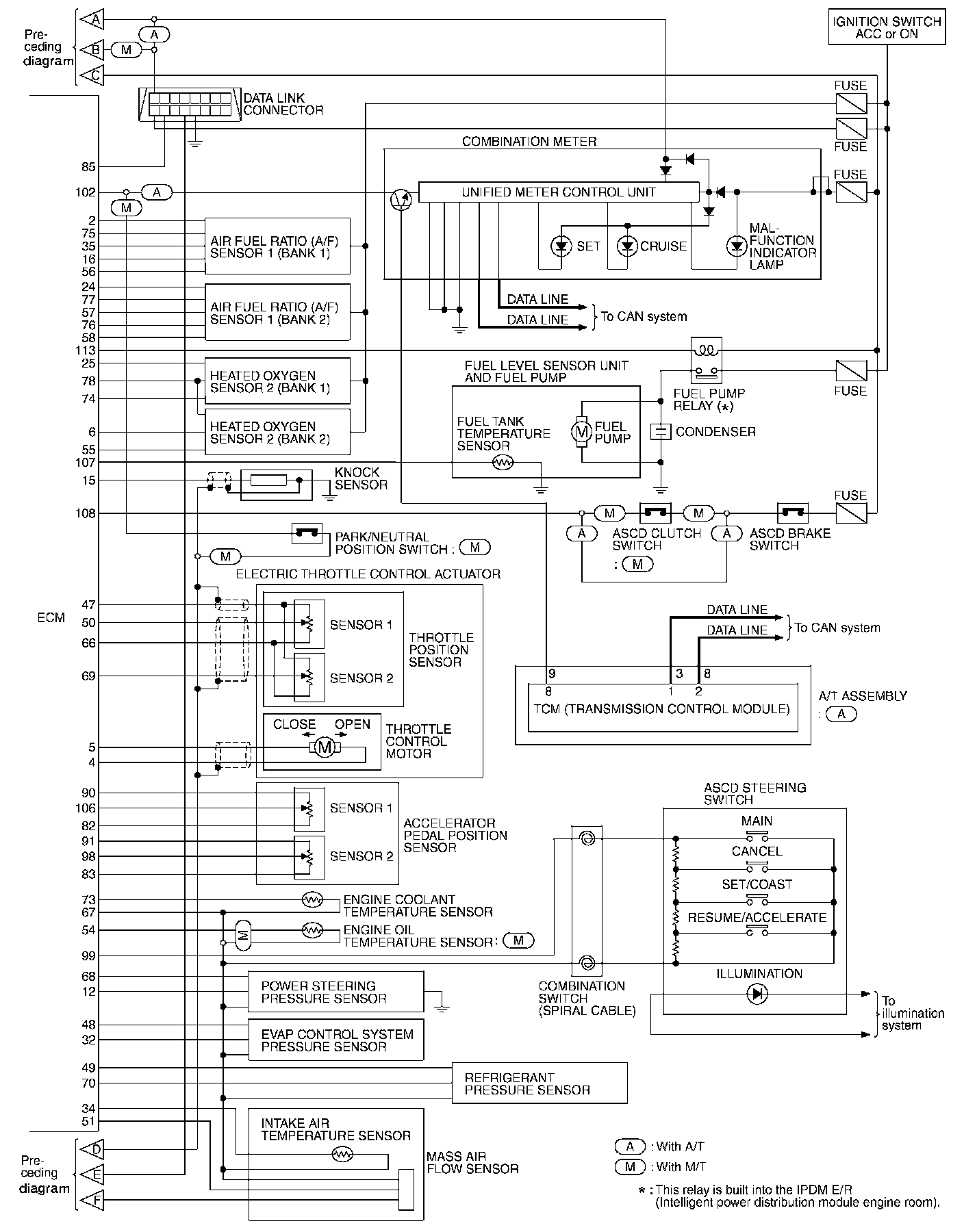

Engine Control System Schematic Part 1:



Engine Control System Schematic Part 2:
