SERVICE DATA AND SPECIFICATIONS (SDS)

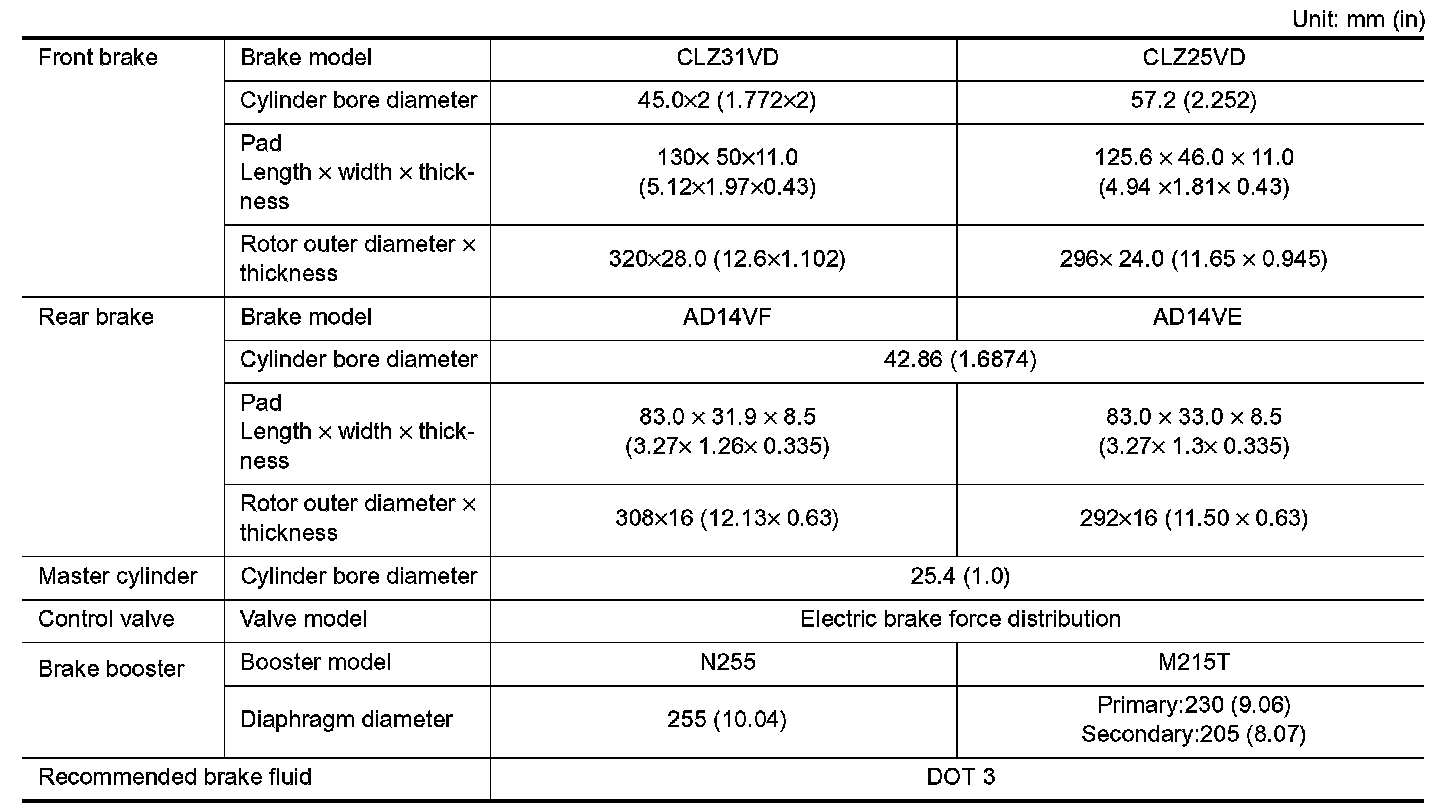

General Specifications

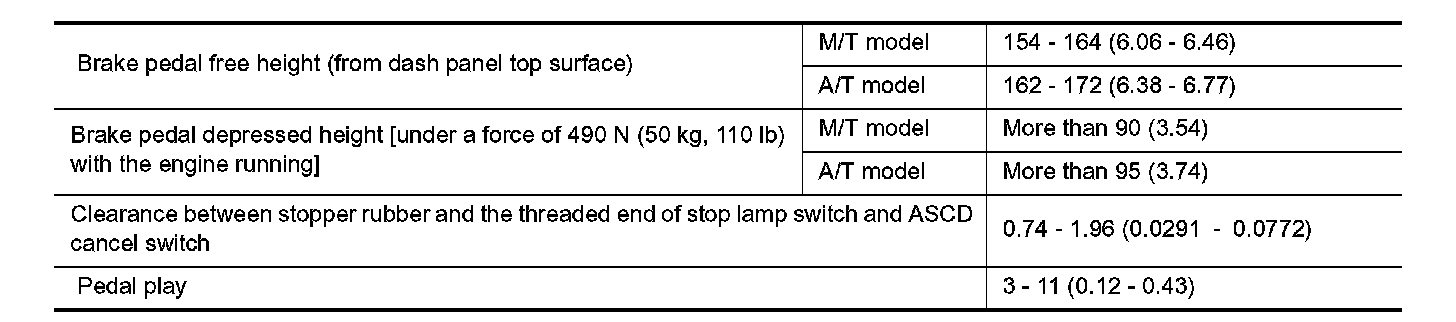

Brake Pedal
Check Valve
Brake Booster
Front Disc Brake
Rear Disc Brake
