Cross-Sectional View
Cross-Sectional View
A/T CONTROL SYSTEM

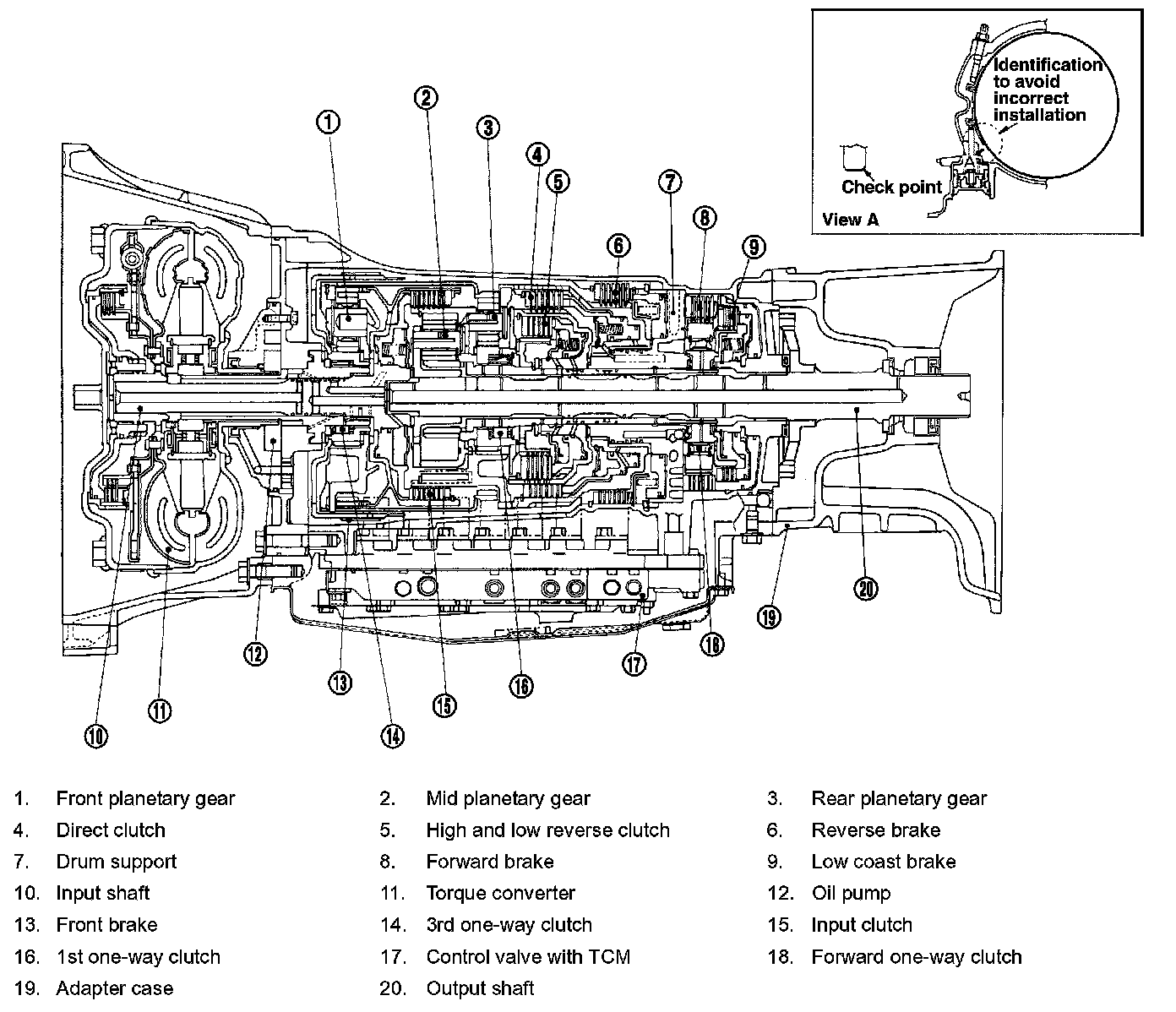

Cross-Sectional View (2WD Models)

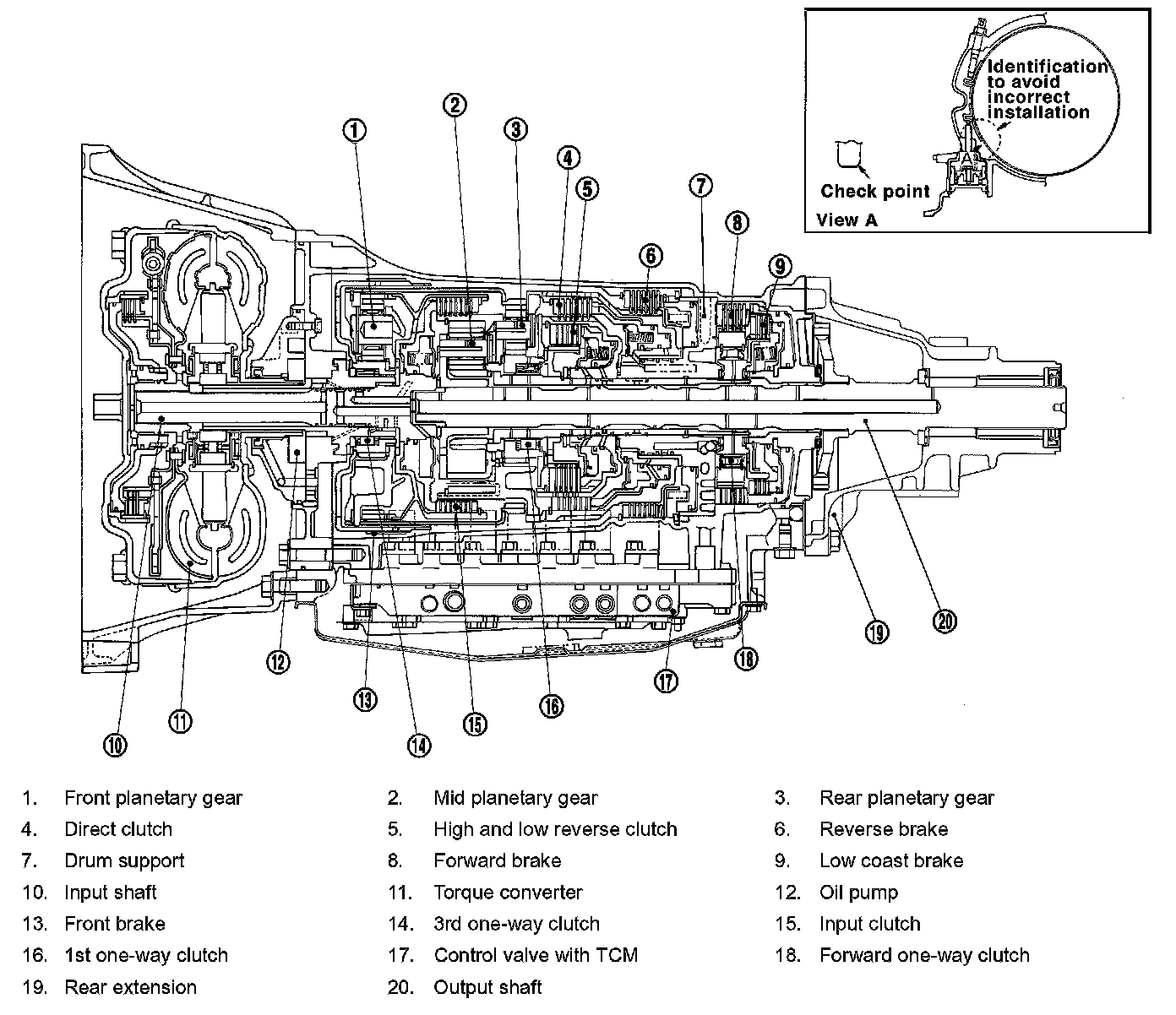

Cross-Sectional View (AWD Models)
