Flywheel: Service and Repair

Flywheel (M/T models)

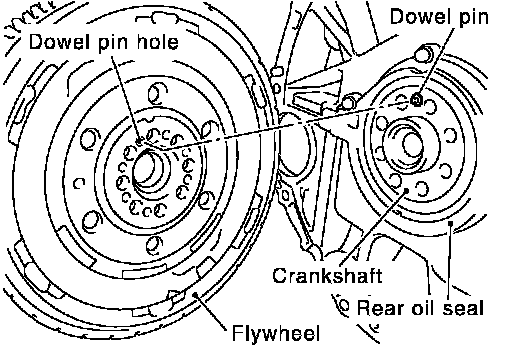

^ When installing flywheel to crankshaft, be sure to correctly align crankshaft side dowel pin and flywheel side dowel pin hole.





^ There is a mating mark on the clutch cover side of flywheel. Refer it during installation.

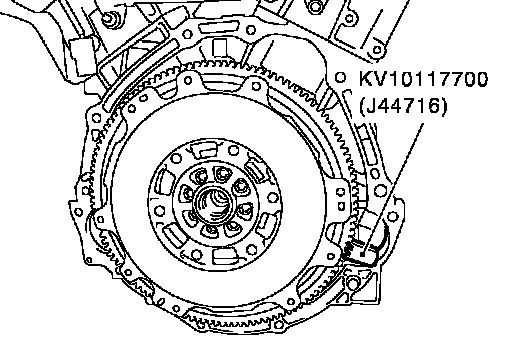

^ Holding ring gear with ring gear stopper (SST), tighten securing bolts with TORX socket (size: T55, commercial service tool).
^ Tighten mounting bolts crosswise over several times.
