Splash Guard: Service and Repair

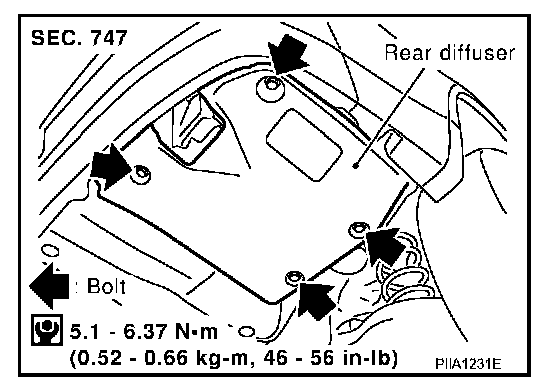

REAR DIFFUSER

Removal and Installation

REMOVAL




1. Remove bolts of rear diffuser.
2. Remove rear diffuser.

INSTALLATION
Install in the reverse order of removal.
