Compressor HVAC: Service and Repair

Removal and Installation of Compressor




REMOVAL

AWD Models
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove engine cover. Refer to "INTAKE MANIFOLD COLLECTOR".

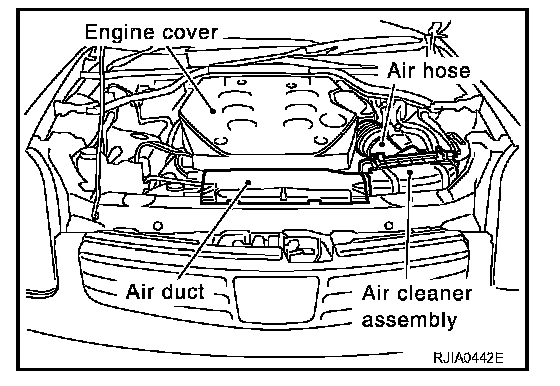

3. Remove duct, air cleaner assembly, air cleaner assembly and air hose. Refer to "AIR CLEANER AND AIR DUCT".
4. Remove engine under cover, using power tools.
5. Remove dumper.




6. Remove high-pressure flexible hose. Refer to "Removal and Installation of High-Pressure Flexible Hose".
7. Remove low-pressure flexible hose. Refer to "Removal and Installation of Low-pressure Flexible Hose".
8. Remove high-pressure pipe 1. Refer to "Removal and Installation of High-Pressure Pipe 1 (Engine Compartment)".

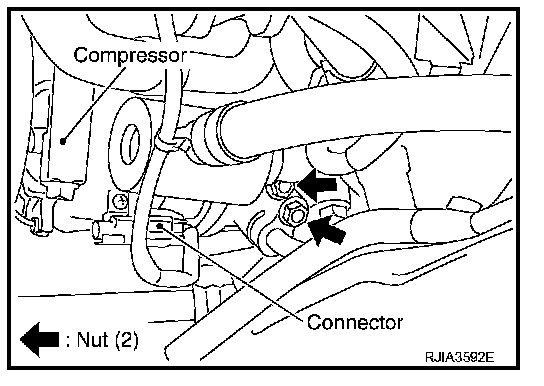

9. Disconnect compressor (magnet clutch) connector.
10. Remove A/C compressor belt. Refer to "DRIVE BELTS".




11. Disconnect compressor (ECV) connector.

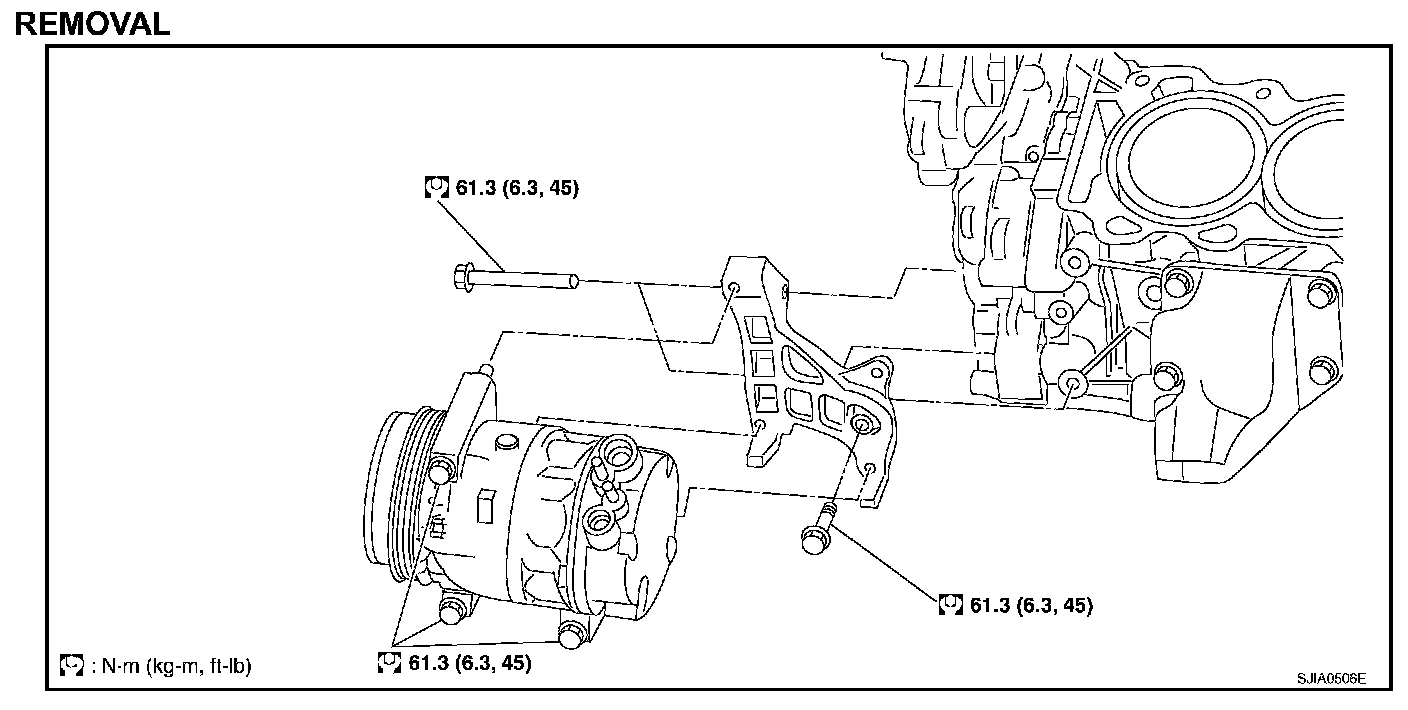

12. Remove mounting bolts from compressor, using power tools.
13. Remove compressor from upward of the vehicle.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Replace O-ring of low-pressure flexible hose and high-pressure flexible hose with a new one, then apply compressor oil to it when installing it.
- When recharging refrigerant, check for leaks.
