Tail Lamp: Service and Repair

REAR COMBINATION LAMP

Removal and Installation

REMOVAL

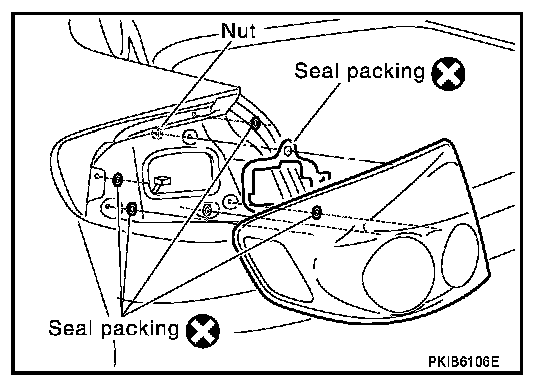

Rear Fender Side




1. Open trunk and remove trunk rear finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER" in "EI" section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp installation nuts.
4. Pull the rear combination lamp toward rear of vehicle and remove from vehicle.
5. Remove seal packing from vehicle.

Trunk Lid Side




1. Remove trunk lid finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER" in "EI" section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp installation nuts.
4. Remove rear combination lamp from trunk lid.
5. Remove seal packing from trunk lid.

INSTALLATION
Installation is the reverse order of removal.
- Install a new seal packing to rear combination lamp.

CAUTION: Seal packing cannot be reused.

Rear combination lamp mounting nut Torque: 3.2 Nm (0.33 kg-m, 28 in-lb)
