Power Distribution Relay: Locations

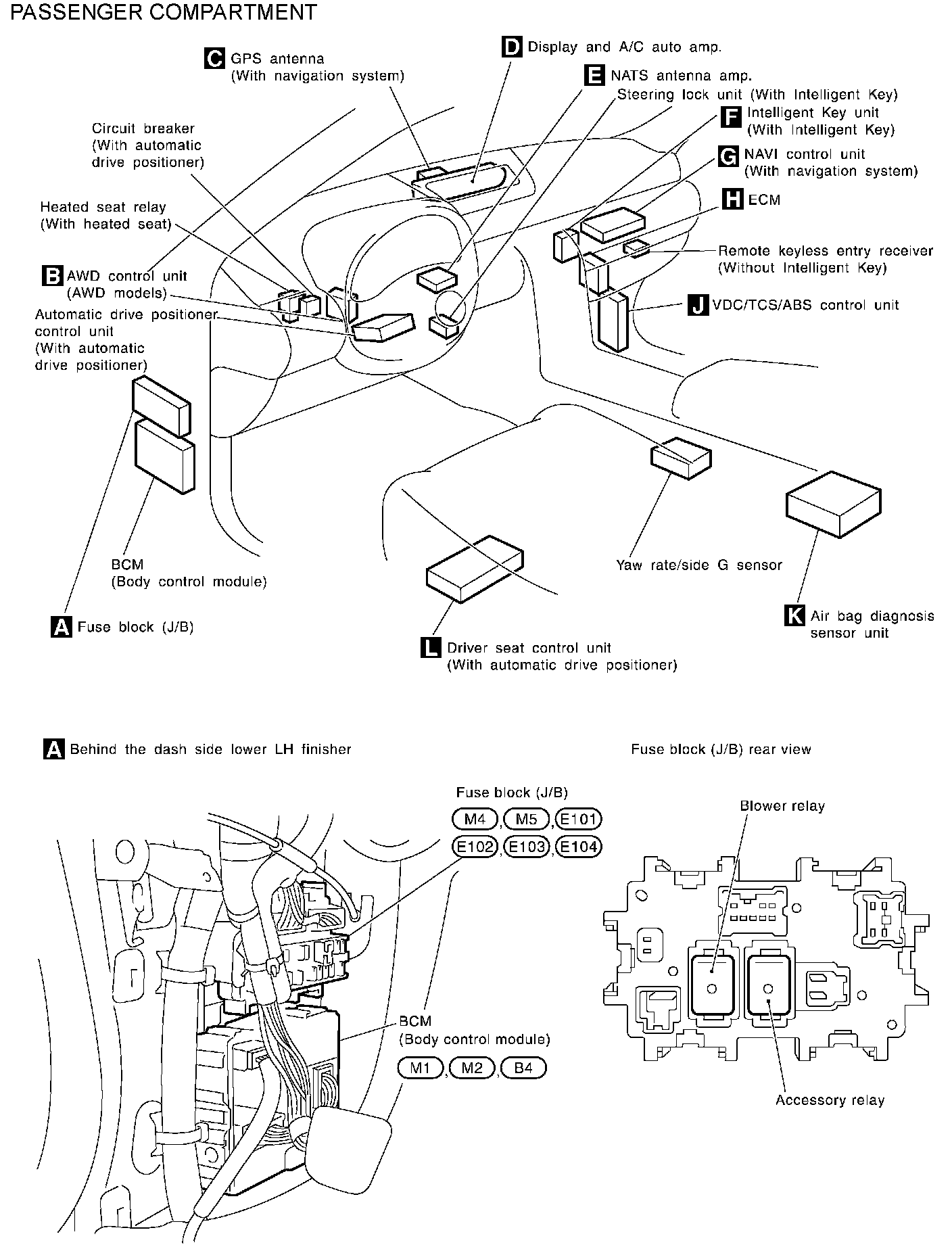

Passenger Compartment Electrical Units Location:

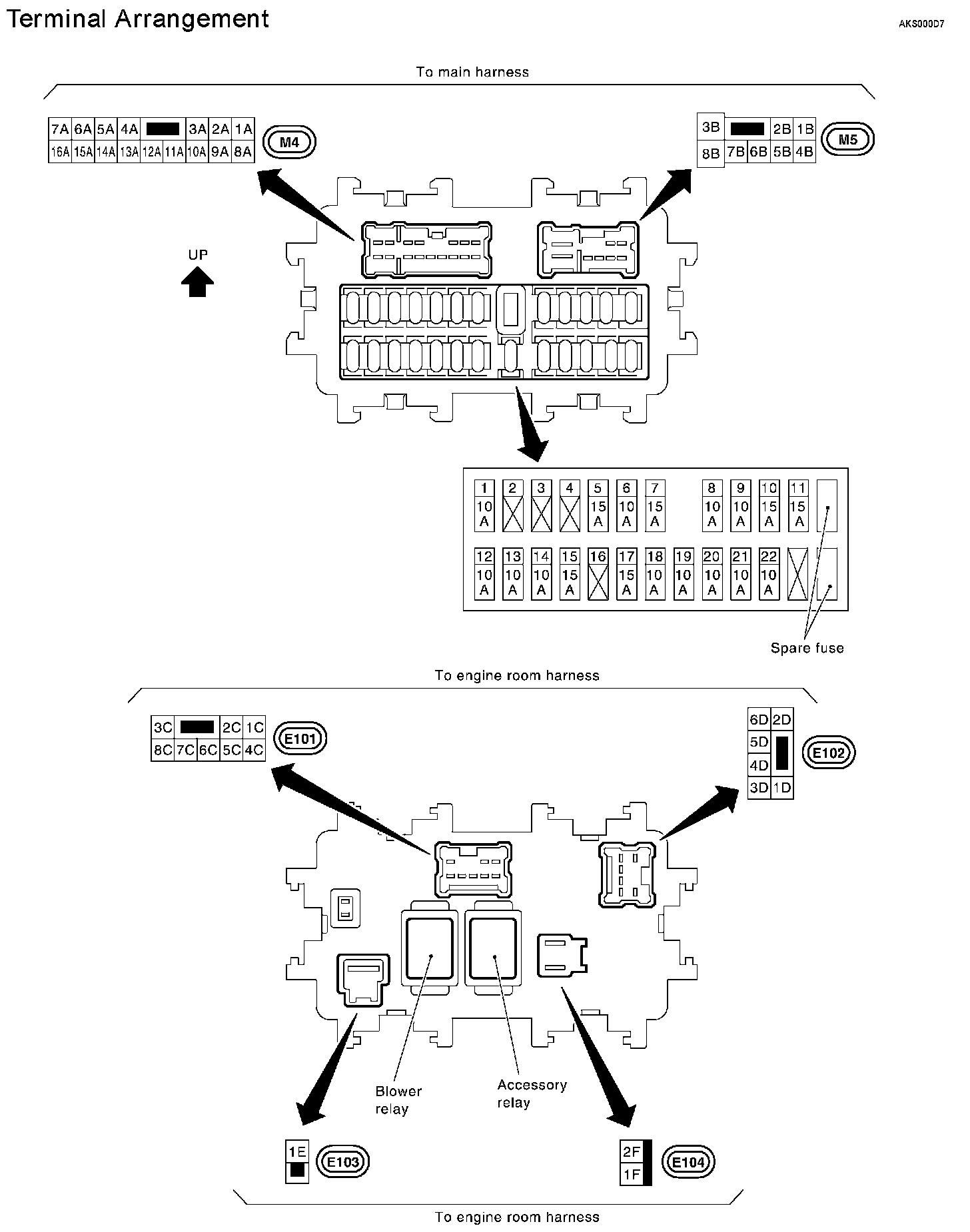

Fuse Block-Junction Box (J/B) - Terminal Arrangement:
