Interior - Center Console Lid Stopper Replacement

Classification:
BT05-028

Reference:
ITB05-032

Date:
June 20, 2005

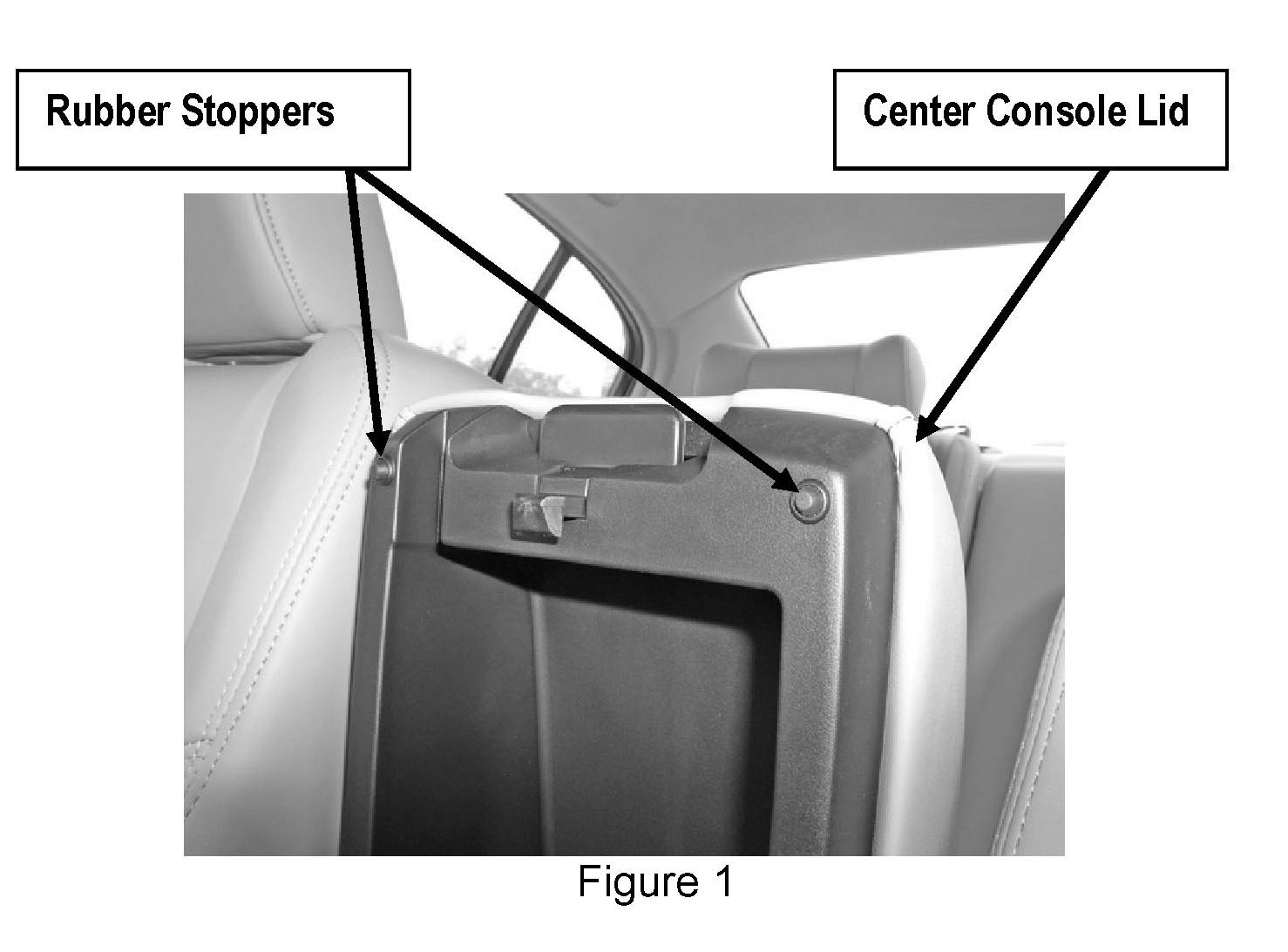

CENTER CONSOLE LID RUBBER STOPPER(S)

APPLIED VEHICLES:
All 2003-05 G35 Sedan (V35)
All 2003-05 G35 Coupe (CV35)

IF YOU CONFIRM:

The Center Console Lid Rubber Stopper(s) need to be replaced for any reason.

ACTION:

^ Do NOT replace the entire Center Console assembly.

^ Order the Rubber Stopper(s) individually and install them as needed.





^ To remove a Rubber Stopper, carefully pull and twist until the Stopper comes out of the Console Lid. To install a Rubber Stopper, carefully push and twist until the Stopper is fully seated.

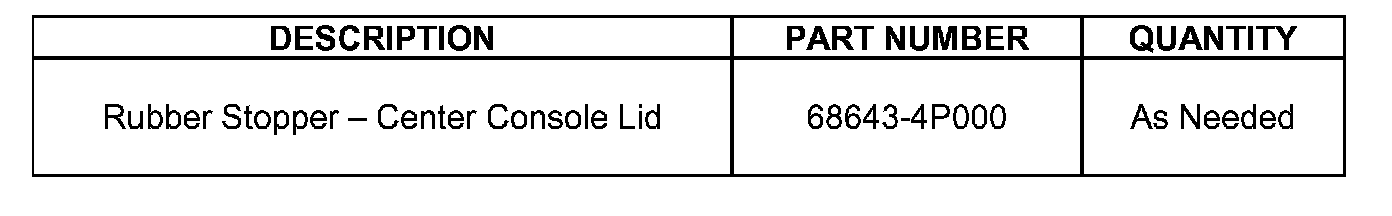

PARTS INFORMATION

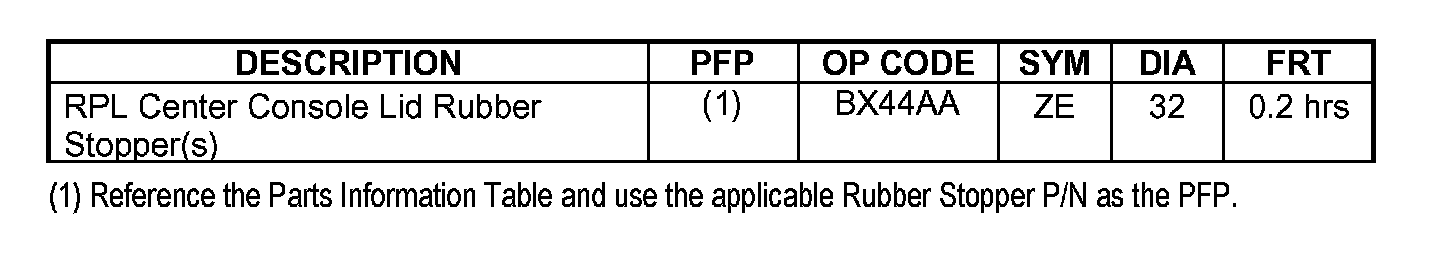

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding shown.
